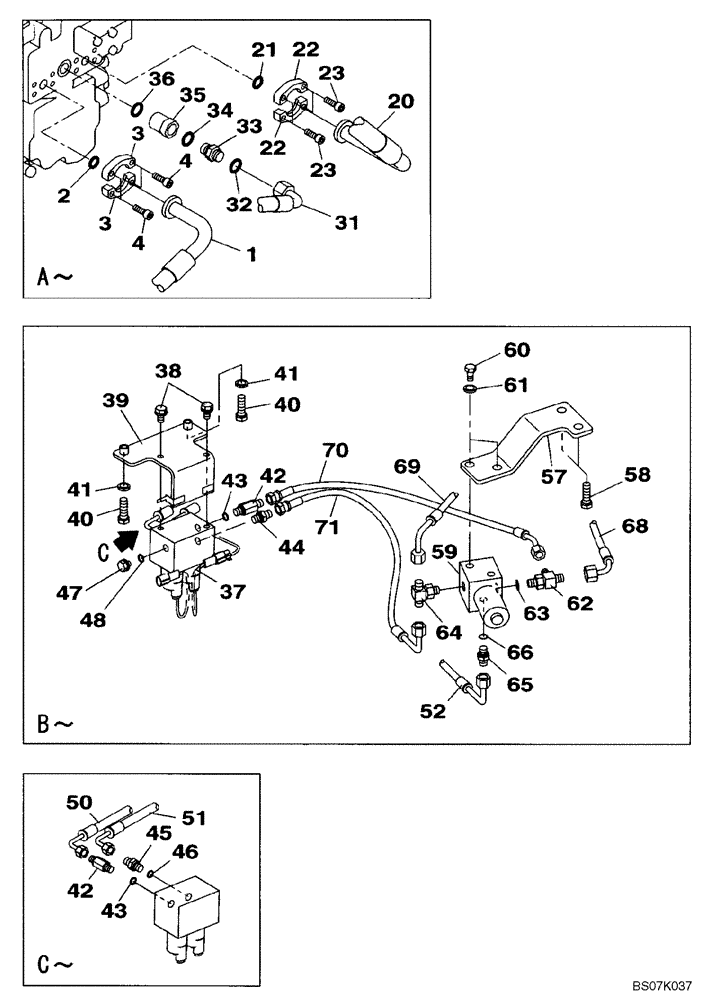

Запчасти Case CX130B (08-42) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, HAND OPERATED (08) - HYDRAULICS

1

KNJ12830

HOSE ASSY.

1шт.

2

155210A1

O-RING

1шт.

3

153458A1

FLANGE

2шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

20

KNJ15050

HYDRAULIC HOSE

1шт.

21

155210A1

O-RING

1шт.

22

153458A1

FLANGE

2шт.

23

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

31

KNJ12880

HOSE ASSY.,12.70 mm ID x 930.00 mm

1шт.

32

155204A1

O-RING

1шт.

33

KHJ14710

ADAPTER

Incl. 34

1шт.

34

154487A1

O-RING

1шт.

35

KHJ14720

CHECK VALVE

Incl. 36

1шт.

36

154495A1

O-RING

1шт.

37

KHJ14000

VALVE SECTION

1шт.

38

166351A1

BOLT,Sems, M10 x 20mm

2шт.

39

KHJ14680

SUPPORT

1шт.

40

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

41

150409A1

WASHER

2шт.

42

162554A1

FITTING

Incl. 43

2шт.

43

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

44

161841A1

HYD CONNECTOR

1шт.

45

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 46

1шт.

46

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

47

159002A1

PLUG

1шт.

48

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

50

KHJ2198

HOSE,6.3mm ID x 2850mm L

2850 mm

1шт.

51

KHJ2440

HOSE

1шт.

52

KHJ15170

HYDRAULIC HOSE

1шт.

59

162538A1

VALVE

1шт.

60

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

61

183-106VR

SPRING WASHER

2шт.

62

159497A1

TEE

Incl. 63

1шт.

63

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

64

167321A1

TEE

1шт.

65

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 66

1шт.

66

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

68

KHJ2086

HOSE,6.3mm ID x 700mm L

1шт.

69

KHJ2036

HOSE

1шт.

70

KHJ12100

HYDRAULIC HOSE

1шт.

71

KHJ2180

HOSE,6.3mm ID x 500mm L

1шт.
