(08-41) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, HAND OPERATED

Запчасти Case CX130B (08-41) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, HAND OPERATED (08) - HYDRAULICS

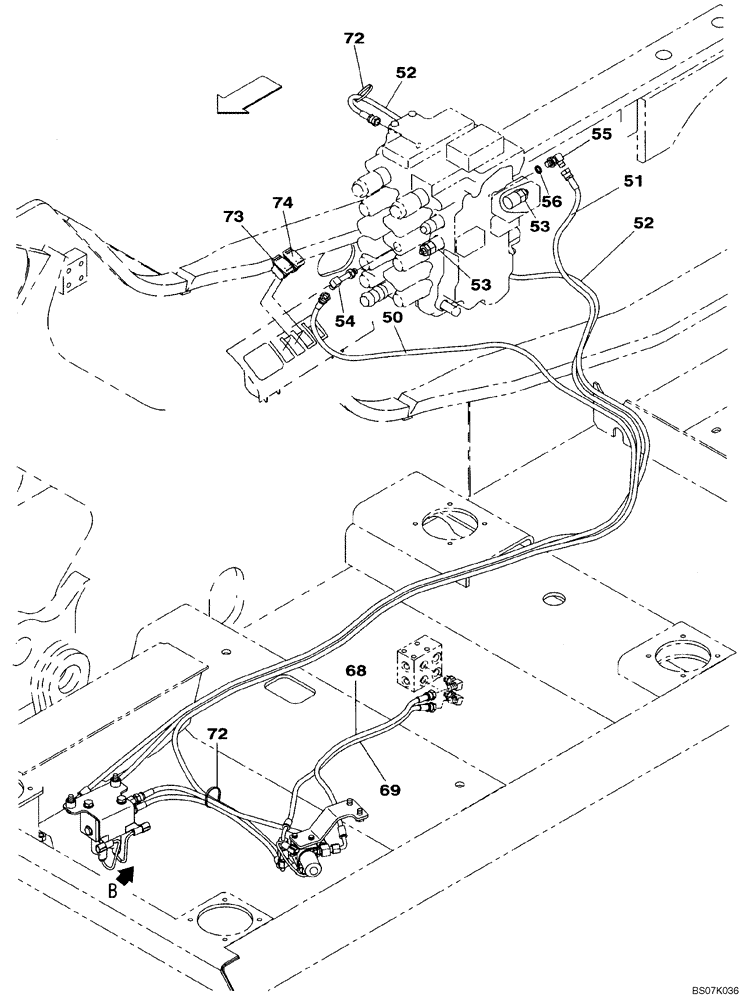

Схема запчастей Case CX130B - (08-41) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, HAND OPERATED (08) - HYDRAULICS
56
53
72
50
72
73
54
52
53
68
52
55
74
69
51
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

50

KHJ2198

HOSE,6.3mm ID x 2850mm L

2850 mm (112-3/16 in)

1шт.

51

KHJ2440

HOSE

1шт.

52

KHJ15170

HYDRAULIC HOSE

1шт.

53

KNJ2732

VALVE, PRESSURE RELI

EF

2шт.

54

KHJ1178

ELBOW

1шт.

55

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 56

1шт.

56

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

68

KHJ2086

HOSE,6.3mm ID x 700mm L

1шт.

69

KHJ2036

HOSE

1шт.

72

150496A1

MOUNTING CLIP

2шт.

73

KHR15020

LIMIT SWITCH,Double-acting

1шт.

74

KHR14460

SWITCH,Low Flow

1шт.
