(08-40) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, HAND OPERATED

Запчасти Case CX130B (08-40) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, HAND OPERATED (08) - HYDRAULICS

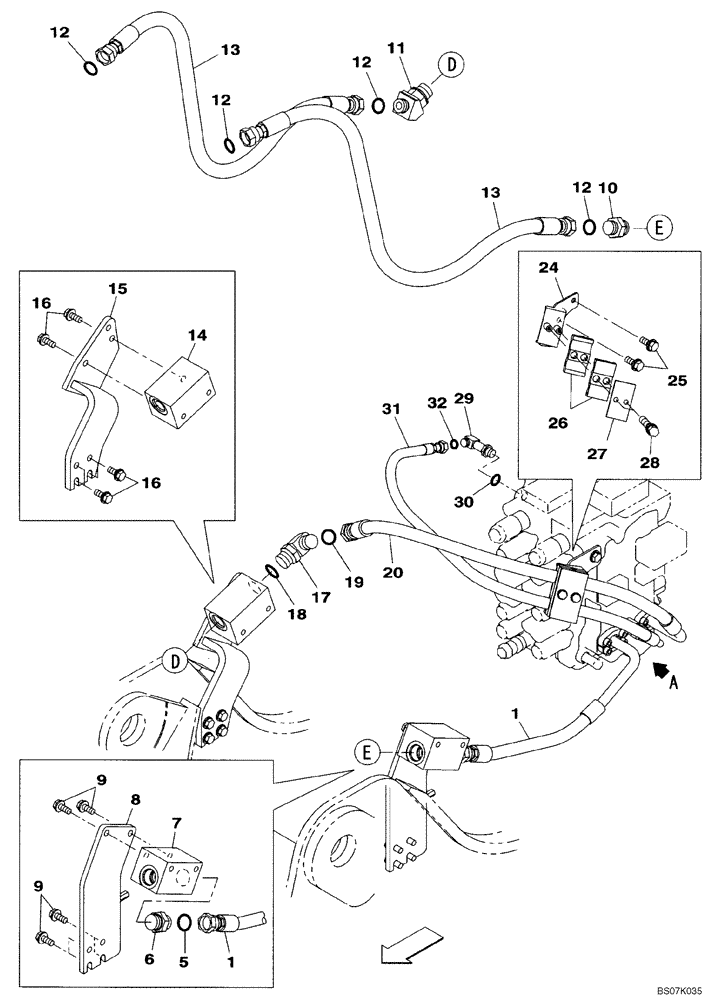

Схема запчастей Case CX130B - (08-40) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, HAND OPERATED (08) - HYDRAULICS
25
27
26
28
14
30
8
19
10
32
12
20
11
17
31
12
5
9
16
9
13
1
7
12
15
24
12
1
18
6
29
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNJ12830

HOSE ASSY.

1шт.

5

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

6

KHJ1941

FITTING

1шт.

7

KRJ12170

MANIFOLD VALVE

1шт.

8

KNJ14840

BRACKET

1шт.

9

166352A1

BOLT

6шт.

10

KHJ1941

FITTING

1шт.

11

KHJ16290

ELBOW

Incl. 12

1шт.

12

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

13

KLJ11690

HOSE ASSY.,19.00 mm ID x 1250.00 mm

1460 mm (57-1/2 in)

2шт.

14

KRJ12170

MANIFOLD VALVE

1шт.

15

KNJ14830

BRACKET

1шт.

16

166352A1

BOLT

6шт.

17

KHJ14700

ELBOW

Incl. 18

1шт.

18

154523A1

O-RING

1шт.

19

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

20

KNJ15050

HYDRAULIC HOSE

1шт.

24

KNJ14020

BRACKET

1шт.

25

166352A1

BOLT

2шт.

26

KLJ10730

COLLAR CLAMP

2шт.

27

KRH10210

PLATE

1шт.

28

166347A1

BOLT,Sems, M10 x 30mm

2шт.

29

KHJ14690

ELBOW

Incl. 30

1шт.

30

154487A1

O-RING

1шт.

31

KNJ12880

HOSE ASSY.,12.70 mm ID x 930.00 mm

Incl. 32

1шт.

32

155204A1

O-RING

1шт.
