(08-37) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE, TRIGGER ACTIVATED

Запчасти Case CX130B (08-37) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE, TRIGGER ACTIVATED (08) - HYDRAULICS

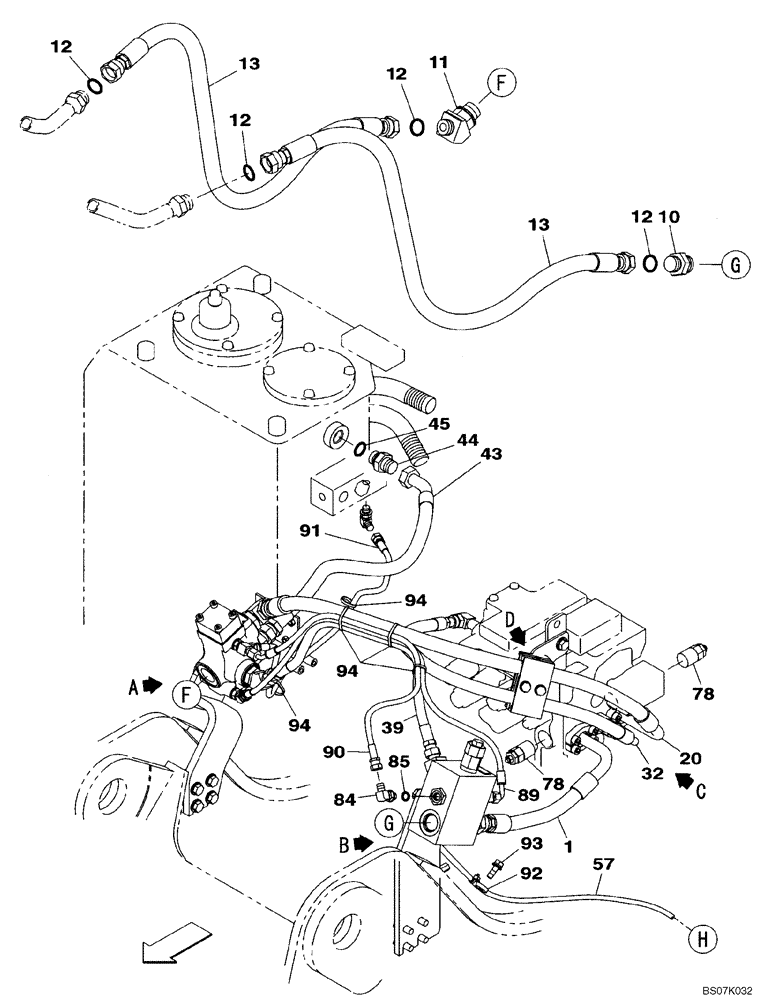

Схема запчастей Case CX130B - (08-37) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE, TRIGGER ACTIVATED (08) - HYDRAULICS
12
12
13
78
10
94
90
85
89
45
20
12
92
93
13
94
84
78
12
32
94
57
1
11
91
43
39
44
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNJ12830

HOSE ASSY.

1шт.

10

KHJ1941

FITTING

1шт.

11

KHJ16290

ELBOW

1шт.

12

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

13

KLJ11690

HOSE ASSY.,19.00 mm ID x 1250.00 mm

1460 mm

2шт.

20

KNJ15050

HYDRAULIC HOSE

1шт.

32

KNJ12880

HOSE ASSY.,12.70 mm ID x 930.00 mm

1шт.

39

KHJ17820

HYDRAULIC HOSE

1шт.

43

KEJ0397

HYDRAULIC HOSE

1шт.

44

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 45, Serial Range: -44

1шт.

45

154503A1

O-RING

1шт.

57

KHJ17550

HOSE

1шт.

78

KNJ2732

VALVE, PRESSURE RELI

EF

2шт.

84

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 85

1шт.

85

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

89

KHJ17770

HOSE

1шт.

90

KHJ17780

HOSE

1шт.

91

KHJ2033

HOSE

1шт.

92

KHR2584

CLAMP

2шт.

93

KHJ1215

BOLT,Spcl

2шт.

94

150496A1

MOUNTING CLIP

9шт.
