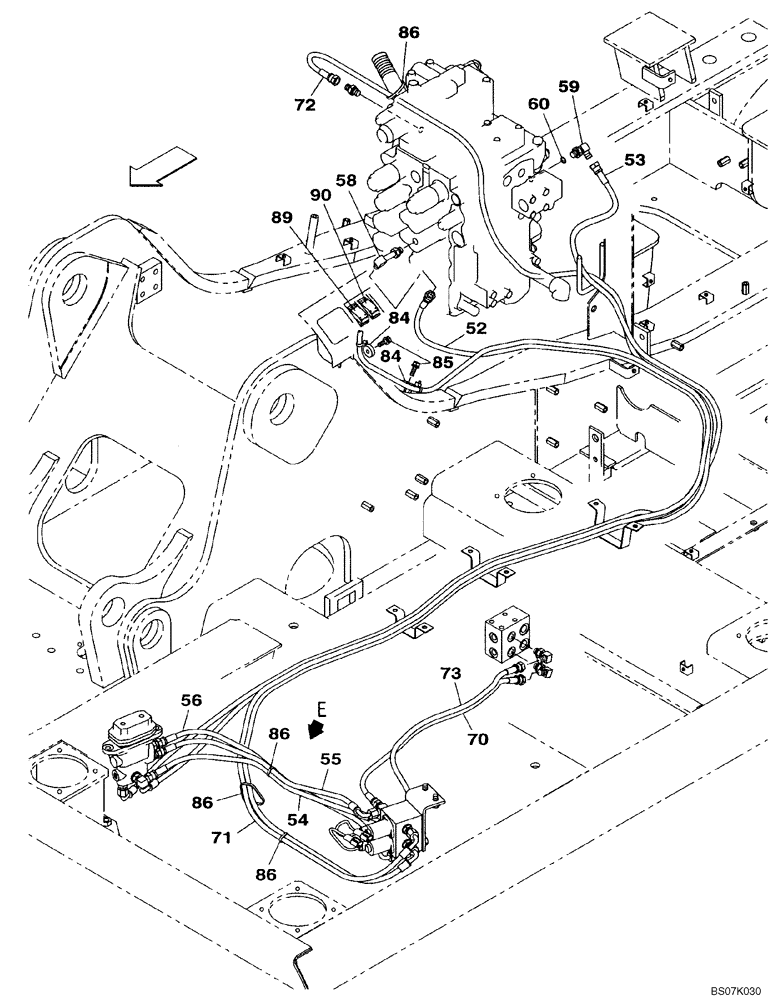

Запчасти Case CX130B (08-35) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE, PEDAL ACTIVATED (08) - HYDRAULICS

52

KHJ2198

HOSE,6.3mm ID x 2850mm L

2850 mm

1шт.

53

KHJ2440

HOSE

2750 mm

1шт.

54

KHJ2244

HOSE

1шт.

55

KHJ2085

HOSE

1шт.

56

KHJ2194

HOSE,6.3mm ID x 650mm L

1шт.

58

KHJ1178

ELBOW

1шт.

59

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 60

1шт.

60

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

70

KHJ2047

HOSE

650 mm

1шт.

71

KHJ12230

HYDRAULIC HOSE

1шт.

72

KHJ17840

HOSE

1шт.

73

KHJ2086

HOSE,6.3mm ID x 700mm L

700 mm

1шт.

84

KHR2584

CLAMP

2шт.

85

KHJ1215

BOLT,Spcl

2шт.

86

150496A1

MOUNTING CLIP

9шт.

89

KHR14450

SWITCH,Multipurpose

1шт.

90

KHR14460

SWITCH,Low Flow

1шт.
