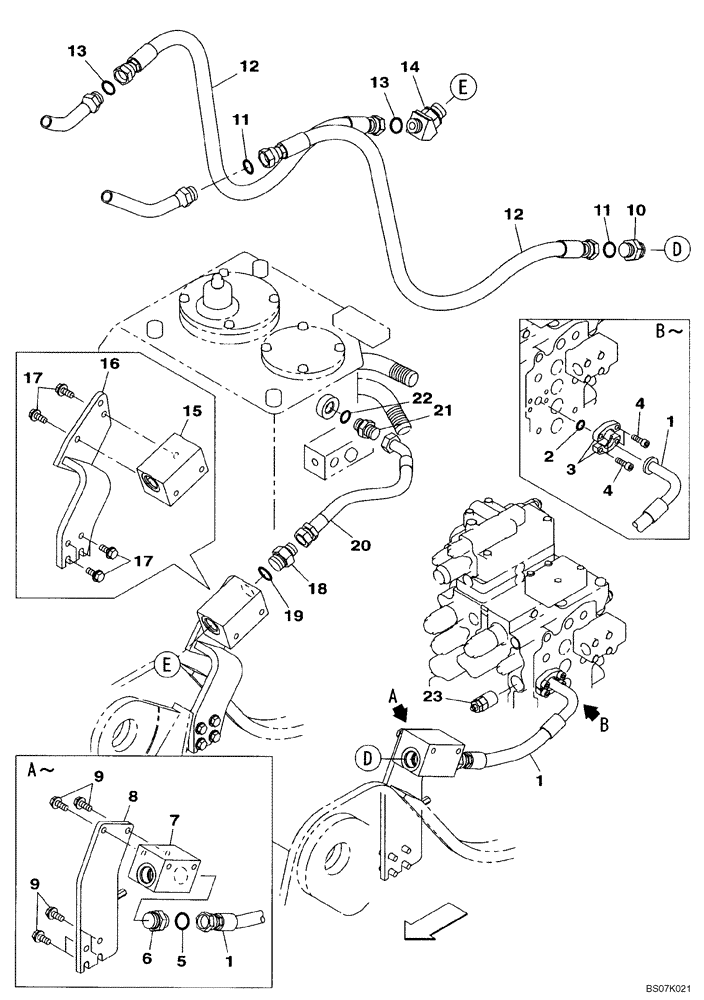

Запчасти Case CX130B (08-26) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT, PEDAL ACTIVATED (08) - HYDRAULICS

1

KNJ12830

HOSE ASSY.

1шт.

2

155210A1

O-RING

1шт.

3

153458A1

FLANGE

Split

2шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

5

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

6

KHJ1941

FITTING

1шт.

7

KRJ12170

MANIFOLD VALVE

1шт.

8

KNJ14840

BRACKET

1шт.

9

166352A1

BOLT

6шт.

10

KHJ1941

FITTING

1шт.

11

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

12

KLJ11690

HOSE ASSY.,19.00 mm ID x 1250.00 mm

1460 mm

2шт.

13

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

14

KHJ16290

ELBOW

1шт.

15

KRJ12170

MANIFOLD VALVE

1шт.

16

KNJ14830

BRACKET

1шт.

17

166352A1

BOLT

6шт.

18

169040A1

ADAPTER

Incl. 19

1шт.

19

154523A1

O-RING

1шт.

20

KEJ0397

HYDRAULIC HOSE

1шт.

21

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 22

1шт.

22

154503A1

O-RING

1шт.

23

KNJ2732

VALVE, PRESSURE RELI

EF

1шт.
