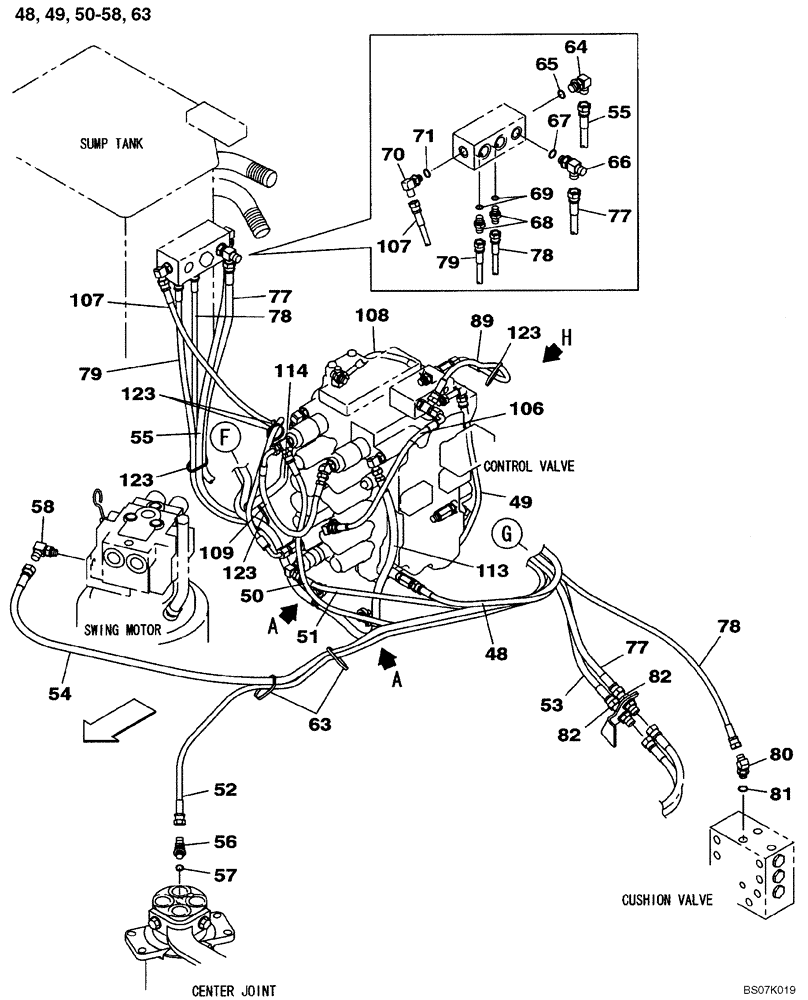

Запчасти Case CX130B (08-24) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

48

KHJ2174

HOSE

3100 mm

1шт.

49

KHJ2525

HOSE

2000 mm

1шт.

50

NSS

NOT SOLD SEPARAT

Hose Assy. 2950 mm

1шт.

51

KHJ17660

HOSE

2500 mm

1шт.

52

KHJ17620

HOSE

3050 mm

1шт.

53

KHJ14110

HYDRAULIC HOSE

2150 mm

1шт.

54

KHJ17670

HOSE

3150 mm

1шт.

55

KHJ2106

HOSE

1600 mm

1шт.

56

150933A1

ELBOW

Incl. 57

1шт.

57

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

58

152749A1

ADAPTER

1шт.

63

150496A1

MOUNTING CLIP

2шт.

64

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 65

2шт.

65

154475A1

O-RING

1шт.

66

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

Incl. 67

1шт.

67

154475A1

O-RING

1шт.

68

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

IncL. 69

2шт.

69

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

70

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 71

1шт.

71

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

77

KHJ17580

HOSE

1900 mm

1шт.

78

KHJ2066

HOSE

2150 mm

1шт.

79

KHJ2310

HOSE

1350 mm

1шт.

80

150933A1

ELBOW

Incl. 81

1шт.

81

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

82

162826A1

ADAPTER

2шт.

89

NSS

NOT SOLD SEPARAT

Hose Assy. 450 mm

1шт.

106

KHJ2342

HOSE

380 mm

1шт.

107

KHJ2088

HOSE

850 mm

1шт.

108

168806A1

HOSE ASSY.

230 mm

1шт.

109

168728A1

HYDRAULIC HOSE,6.30 mm ID x 400.00 mm

No Longer Used

1шт.

113

KHJ17600

HYDRAULIC HOSE

2500 mm

1шт.

114

KHJ17050

HYDRAULIC HOSE

1600 mm

1шт.

123

150496A1

MOUNTING CLIP

2шт.
