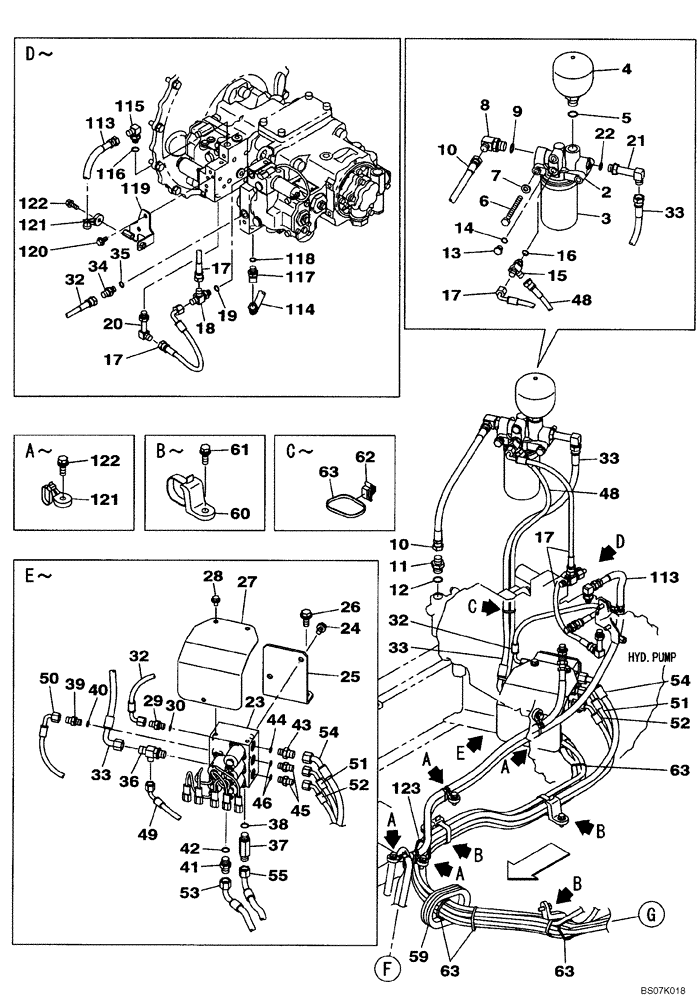

Запчасти Case CX130B (08-23) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

KHJ17710

FILTER ASSY

Incl. 2 - 5

1шт.

2

KHJ17720

FILTER HEAD

1шт.

3

KHJ17730

HYDRAULIC OIL FILTER

1шт.

4

KHJ2359

ACCUMULATOR

Incl. 5

1шт.

5

154487A1

O-RING

1шт.

6

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

2шт.

7

150409A1

WASHER

2шт.

8

157935A1

ELBOW

Incl. 9

1шт.

9

154487A1

O-RING

1шт.

10

KHJ2460

HYDRAULIC HOSE

1шт.

11

161084A1

ADAPTER

Incl. 12

1шт.

12

154487A1

O-RING

1шт.

13

159002A1

PLUG

Incl. 14

1шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

15

159497A1

TEE

Incl. 16

1шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

17

KHJ2238

HOSE

320 mm (12-5/8 in)

2шт.

18

159497A1

TEE

Incl. 19

1шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

20

KHJ1178

ELBOW

1шт.

21

KHJ1442

ELBOW

Incl. 22

1шт.

22

154475A1

O-RING

1шт.

23

KHJ15450

SOLENOID VALVE

Replaces KHJ14520, See Fig. 08-61

1шт.

24

166351A1

BOLT,Sems, M10 x 20mm

2шт.

25

KNJ15630

BRACKET

Replaces KNJ14470

1шт.

26

166352A1

BOLT

2шт.

27

KHJ16220

COVER

1шт.

28

166345A1

BOLT

2шт.

29

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 30, No Longer Used

1шт.

30

154467A1

O-RING,10.8mm ID x 2.4mm Width

No Longer Used

1шт.

32

NSS

NOT SOLD SEPARAT

Hose Assy. 450 mm

1шт.

33

KHJ13680

HYDRAULIC HOSE

1шт.

34

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 35, No Longer Used

1шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

No Longer Used

1шт.

36

163422A1

TEE

1шт.

37

KAJ2351

FITTING

1шт.

38

154475A1

O-RING

1шт.

39

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 40

1шт.

40

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

41

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 42

1шт.

42

154475A1

O-RING

1шт.

43

153559A1

ELBOW

Incl. 44, Replaces 152747A1

1шт.

44

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

45

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 46, No Longer Used

2шт.

46

154467A1

O-RING,10.8mm ID x 2.4mm Width

No Longer Used

1шт.

48

KHJ2174

HOSE

3100 mm

1шт.

49

KHJ2525

HOSE

2000 mm

1шт.

50

NSS

NOT SOLD SEPARAT

Hose Assy. 2950 mm

1шт.

51

KHJ17660

HOSE

2500 mm

1шт.

52

KHJ17620

HOSE

3050 mm

1шт.

53

KHJ14110

HYDRAULIC HOSE

2150 mm

1шт.

54

KHJ17670

HOSE

3150 mm

1шт.

55

KHJ2106

HOSE

1600 mm

1шт.

59

KNJ2988

RUBBER SEAL

1шт.

60

KHR2581

CLAMP

3шт.

61

KHJ1215

BOLT,Spcl

3шт.

62

KHR10220

MOUNTING CLIP

1шт.

63

150496A1

MOUNTING CLIP

8шт.

113

KHJ17600

HYDRAULIC HOSE

2500 mm

1шт.

114

KHJ17050

HYDRAULIC HOSE

1600 mm

1шт.

115

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 115

1шт.

116

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

117

150933A1

ELBOW

Incl. 118

1шт.

118

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

119

KNJ12210

BRACKET

1шт.

120

166350A1

BOLT

2шт.

121

KHR2584

CLAMP

7шт.

122

KHJ1215

BOLT,Spcl

7шт.

123

150496A1

MOUNTING CLIP

6шт.
