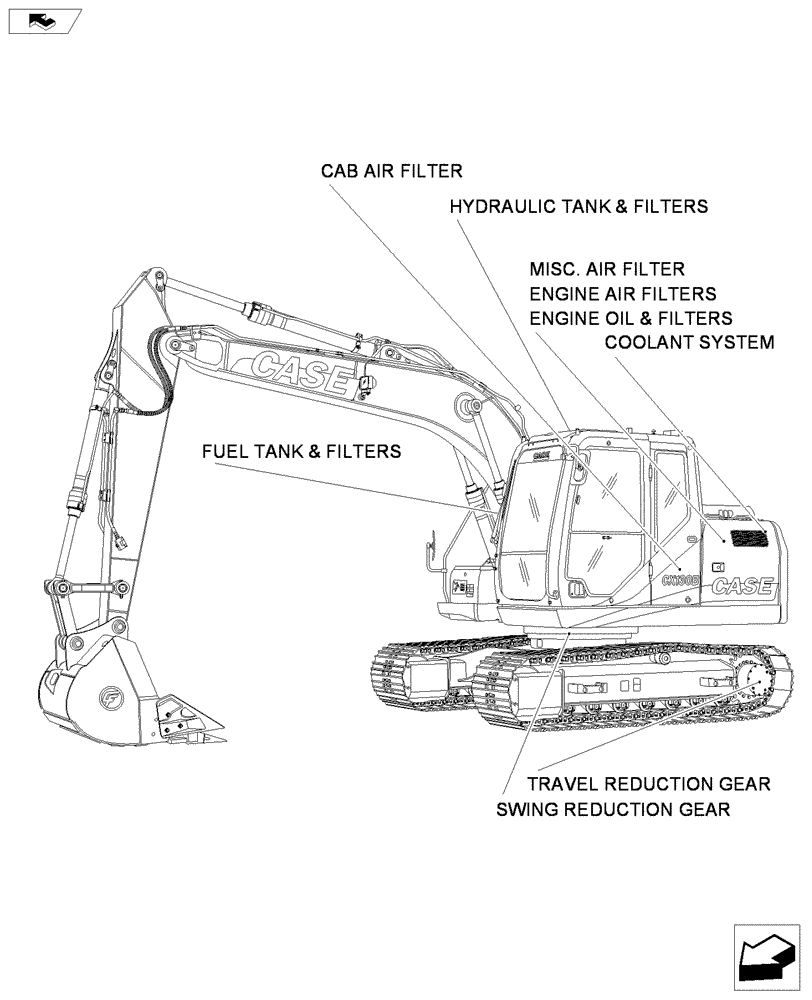

Запчасти Case CX130B (00-001) - FILTERS AND CAPACITIES (00) - PICTORIAL INDEX

Coolant System Capacity, 14.76 Liters (3.9 US Gallons)

1шт.

Coolant Type, CNH XHD Coolant-Antifreeze

1шт.

87327673

ENGINE OIL FILTER

ENGINE OIL

1шт.

Engine Oil Capacity with Filter, 17.03 Liters (18 US Quarts)

1шт.

Engine Oil Type, CASE No. 1 SAE 15W40

1шт.

KLH10550

AIR FILTER

ENGINE AIR, Outer

1шт.

KLH10560

AIR FILTER

ENGINE AIR, Inner

1шт.

KHR13330

CAB FILTER

CAB AIR, Evaporator

1шт.

KHR13340

CAB FILTER

CAB AIR, A/C-Ducts

1шт.

LJ015240

FILTER

MISCELLANEOUS AIR FILTER, Radiator Assy.

1шт.

159702A1

HYDRAULIC OIL FILTER

HYDRAULIC OIL, Hydraulic Reservoir

1шт.

KHJ17730

HYDRAULIC OIL FILTER

HYDRAULIC OIL, Hydraulics, Pilot Pressure, Return Lines

1шт.

KNJ10660

HYDRAULIC OIL FILTER

HYDRAULIC OIL, Tank

1шт.

KNJ14680

HYDRAULIC OIL FILTER

HYDRAULIC OIL, Tank

1шт.

LJ015610

FILTER

HYDRAULIC OIL, KNJ14640 Valve Assy-Control

1шт.

Hydraulic Oil Capacity Entire System, 157.09 Liters (41.5 US Gallons)

1шт.

Hydraulic Oil Capacity Reservoir, 82.14 Liters (21.7 US Gallons)

1шт.

Hydraulic Oil Type, CASE Akcela 135H EP Gear Lube 85W140

1шт.

87365565

FUEL FILTER

FUEL

1шт.

KHH10060

FILTER

FUEL Tank

1шт.

KHH12030

FUEL FILTER

Fuel Pre-Filter; Includes o-ring & seal

1шт.

Fuel Tank Capacity, 260 Liters (68.7 US Gallons), No. 2 Diesel

1шт.

Swing Reduction Gear Oil Capacity, 2.27 Liters (2.4 US Quarts)

1шт.

Swing Reduction Gear Oil Type, CASE Akcela 135H EP Gear Lube 80W90

1шт.

Travel Reduction Gear Oil Capacity (Each), 2.27 Liters (2.4 US Quarts)

1шт.

Travel Reduction Gear Oil Type, CASE Akcela 135H EP Gear Lube 80W90

1шт.
