Запчасти Case CX130B (08-22) - PILOT CONTROL LINES, CONTROL VALVE - TWO WAY (08) - HYDRAULICS

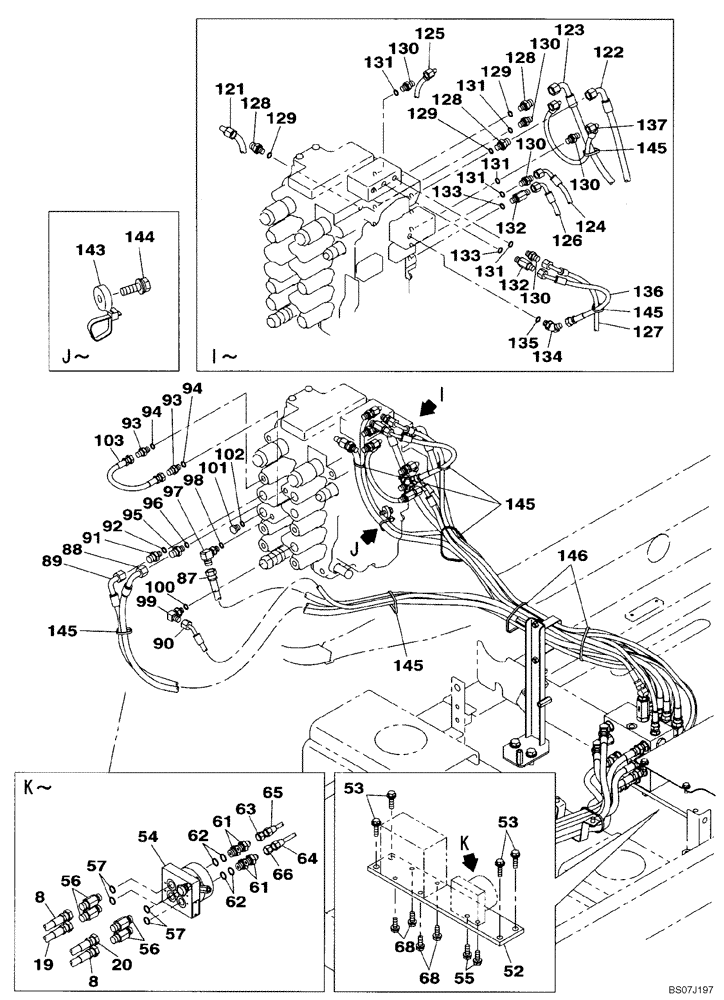

Схема запчастей Case CX130B - (08-22) - PILOT CONTROL LINES, CONTROL VALVE - TWO WAY (08) - HYDRAULICS
127
94
101
63
56
131
98
93
91
20
145
65
130
66
68
144
143
57
64
131
130
122
125
121
129
145
135
62
53
129
124
94
93
57
8
131
131
145
126
19
100
62
123
133
129
56
52
145
102
128
130
146
89
96
61
132
92
88
133
53
128
8
95
103
130
145
61
132
137
68
134
99
87
136
54
128
97
130
131
90
55

Артикул

Название

Примечание

Количество

8

159211A1

HYDRAULIC HOSE

2000 mm (78-3/4 in)

2шт.

19

159217A1

HYDRAULIC HOSE

1850 mm (72-7/8 in)

1шт.

20

KRJ4381

HYDRAULIC HOSE,9.50 mm ID x 1800.00 mm

1шт.

52

KHJ13750

SUPPORT

11шт.

53

166352A1

BOLT

4шт.

54

KHJ12080

CONTROL BLOCK

See Figure 08-33

1шт.

55

166347A1

BOLT,Sems, M10 x 30mm

2шт.

56

159226A1

ADAPTER

Incl.57

4шт.

57

154475A1

O-RING

1шт.

61

KHJ1821

NIPPLE, LUBE

NIPPLE Incl. 62

4шт.

62

154475A1

O-RING

1шт.

63

KHJ15400

HYD TUBE,6.6 mm ID x 8 mm OD

1шт.

64

KHJ15390

HYD TUBE,6.6 mm ID x 8 mm OD

1шт.

65

KHJ15410

HYD TUBE,6.6 mm ID x 8 mm OD

1шт.

66

KHJ15420

HYD TUBE,6.6 mm ID x 8 mm OD

1шт.

68

166347A1

BOLT,Sems, M10 x 30mm

4шт.

87

KHJ2099

HOSE

HOSE ASSY.

1шт.

88

KHJ11590

HYDRAULIC HOSE,9.52 mm ID x 1400.00 mm

1шт.

89

KHJ2439

HOSE

1шт.

90

KHJ17570

HOSE

HOSE ASSY.

1шт.

91

152747A1

ADAPTER

Incl. 92

1шт.

92

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

93

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 94

2шт.

94

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

95

152747A1

ADAPTER

Incl. 96

1шт.

96

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

97

153559A1

ELBOW

Incl. 98

1шт.

98

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

99

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 100

1шт.

100

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

101

159002A1

PLUG

Incl. 102

1шт.

102

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

103

KHJ2419

HYDRAULIC HOSE,6.30 mm ID x 270.00 mm

1шт.

121

KHJ11590

HYDRAULIC HOSE,9.52 mm ID x 1400.00 mm

1шт.

122

KHJ17700

HOSE

HOSE ASSY.

1шт.

123

KHJ11580

HYDRAULIC HOSE,9.52 mm ID x 1350.00 mm

1шт.

124

KHJ2093

HOSE

HOSE ASSY.

1шт.

125

KHJ2327

HOSE

1шт.

126

KHJ2088

HOSE

1шт.

127

KHJ13800

HOSE

HOSE ASSY.

1шт.

128

152747A1

ADAPTER

Incl. 129

3шт.

129

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

130

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 131

5шт.

131

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

132

162554A1

FITTING

Incl. 133

1шт.

133

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

134

150933A1

ELBOW

Incl. 135

1шт.

135

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

136

KHJ16200

HYDRAULIC HOSE,6.35 mm ID x 400.00 mm

1шт.

137

KHJ13820

HYDRAULIC HOSE,6.35 mm ID x 420.00 mm

1шт.

143

KHR2584

CLAMP

1шт.

144

KHJ1215

BOLT,Spcl

1шт.

145

150496A1

MOUNTING CLIP

6шт.

146

150498A1

MOUNTING CLIP

2шт.

Выбрано товаров: 54
