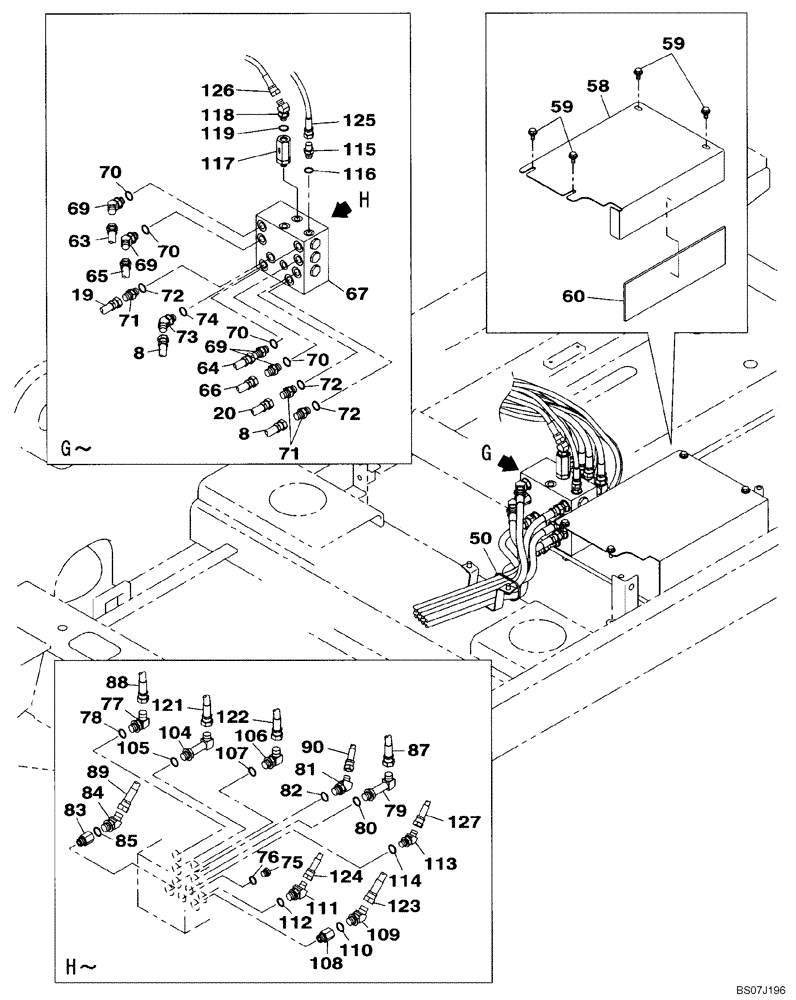

Запчасти Case CX130B (08-21) - PILOT CONTROL LINES, PARTITION - TWO WAY (08) - HYDRAULICS

8

159211A1

HYDRAULIC HOSE

2000 mm (78-3/4 in)

2шт.

19

159217A1

HYDRAULIC HOSE

1850 mm (72-7/8 in)

1шт.

20

KRJ4381

HYDRAULIC HOSE,9.50 mm ID x 1800.00 mm

1шт.

58

KNJ14860

COVER

COVER

1шт.

59

KHN17030

SPECIAL BOLT

Wing

4шт.

60

KNJ12480

SEAL

SEAL, CUSHION

1шт.

63

KHJ15400

HYD TUBE,6.6 mm ID x 8 mm OD

1шт.

64

KHJ15390

HYD TUBE,6.6 mm ID x 8 mm OD

1шт.

65

KHJ15410

HYD TUBE,6.6 mm ID x 8 mm OD

1шт.

66

KHJ15420

HYD TUBE,6.6 mm ID x 8 mm OD

1шт.

67

KNJ14441

VALVE SECTION

Replaces KNJ14440, Detail of Valve not available at time of printing.

1шт.

69

KHJ1821

NIPPLE, LUBE

NIPPLE Incl. 70

4шт.

70

154475A1

O-RING

1шт.

71

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 72

3шт.

72

154475A1

O-RING

1шт.

73

157584A1

ELBOW

Incl. 74

1шт.

74

154475A1

O-RING

1шт.

75

159002A1

PLUG

Incl. 76

1шт.

76

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

77

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 78

1шт.

78

154475A1

O-RING

1шт.

79

KHJ1442

ELBOW

Incl. 80

1шт.

80

154475A1

O-RING

1шт.

81

KHJ1445

ELBOW

Incl. 82

1шт.

82

154475A1

O-RING

1шт.

83

KHJ13790

STUD

1шт.

84

157584A1

ELBOW

Incl. 85

1шт.

85

154475A1

O-RING

1шт.

87

KHJ2099

HOSE

HOSE ASSY.

1шт.

88

KHJ11590

HYDRAULIC HOSE,9.52 mm ID x 1400.00 mm

1шт.

89

KHJ2439

HOSE

1шт.

90

KHJ17570

HOSE

HOSE ASSY.

1шт.

104

KHJ1442

ELBOW

Incl. 105

1шт.

105

154475A1

O-RING

1шт.

106

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 107

1шт.

107

154475A1

O-RING

1шт.

108

KHJ13790

STUD

1шт.

109

157584A1

ELBOW

Incl. 110

1шт.

110

154475A1

O-RING

1шт.

111

KHJ1445

ELBOW

Incl. 112

1шт.

112

154475A1

O-RING

1шт.

113

150933A1

ELBOW

Incl. 114

1шт.

114

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

115

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 116

1шт.

116

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

117

KHJ10790

FILTER SCREEN

1шт.

118

150933A1

ELBOW

1шт.

119

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

121

KHJ11590

HYDRAULIC HOSE,9.52 mm ID x 1400.00 mm

1шт.

122

KHJ17700

HOSE

HOSE ASSY.

1шт.

123

KHJ11580

HYDRAULIC HOSE,9.52 mm ID x 1350.00 mm

1шт.

124

KHJ2093

HOSE

HOSE ASSY.

1шт.

125

KHJ2327

HOSE

1шт.

126

KHJ2088

HOSE

1шт.

127

KHJ13800

HOSE

HOSE ASSY.

1шт.
