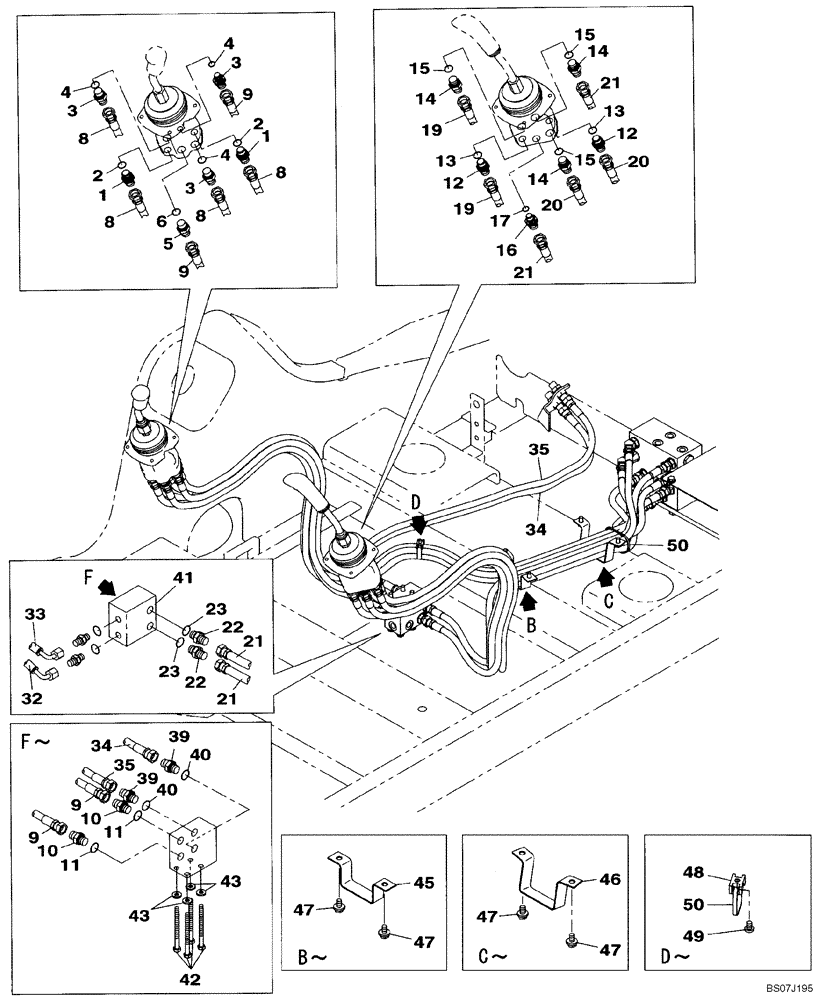

Запчасти Case CX130B (08-20) - PILOT CONTROL LINES, ATTACHMENT - TWO WAY (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
KHJ1402
ADAPTER
Incl. 2
2шт.
2
154475A1
O-RING
1шт.
3
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 4
3шт.
4
154475A1
O-RING
1шт.
5
161842A1
ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB
Incl. 6
1шт.
6
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
8
159211A1
HYDRAULIC HOSE
2000 mm (78-3/4 in)
4шт.
9
159213A1
HYDRAULIC HOSE
1150 mm (45-1/4 in)
2шт.
10
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 11
2шт.
11
154475A1
O-RING
1шт.
12
KHJ1402
ADAPTER
Incl. 13
2шт.
13
154475A1
O-RING
1шт.
14
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 15
3шт.
15
154475A1
O-RING
1шт.
16
161842A1
ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB
Incl. 17
1шт.
17
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
19
159217A1
HYDRAULIC HOSE
1850 mm (72-7/8 in)
2шт.
20
KRJ4381
HYDRAULIC HOSE,9.50 mm ID x 1800.00 mm
2шт.
21
159213A1
HYDRAULIC HOSE
1150 mm (45-3/8 in)
2шт.
22
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 23
2шт.
23
154475A1
O-RING
1шт.
32
KHJ2249
HOSE
950 mm (37-3/8 in)
1шт.
33
KHJ2249
HOSE
950 mm (37-3/8 in)
1шт.
34
KHJ14330
HYDRAULIC HOSE
1шт.
35
KHJ14330
HYDRAULIC HOSE
1шт.
39
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 40
2шт.
40
154475A1
O-RING
1шт.
41
KRJ5903
MANIFOLD
1шт.
42
828-8100
BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9
4шт.
43
153081A1
WASHER
4шт.
45
KHJ13770
COLLAR
1шт.
46
KHJ13760
COLLAR
1шт.
47
166345A1
BOLT
4шт.
48
150860A1
COLLAR
1шт.
49
840-168
SCREW,Pan, M6 x 1 x 8mm, Cl 4.8
1шт.
50
150496A1
MOUNTING CLIP
2шт.
Выбрано товаров: 36
