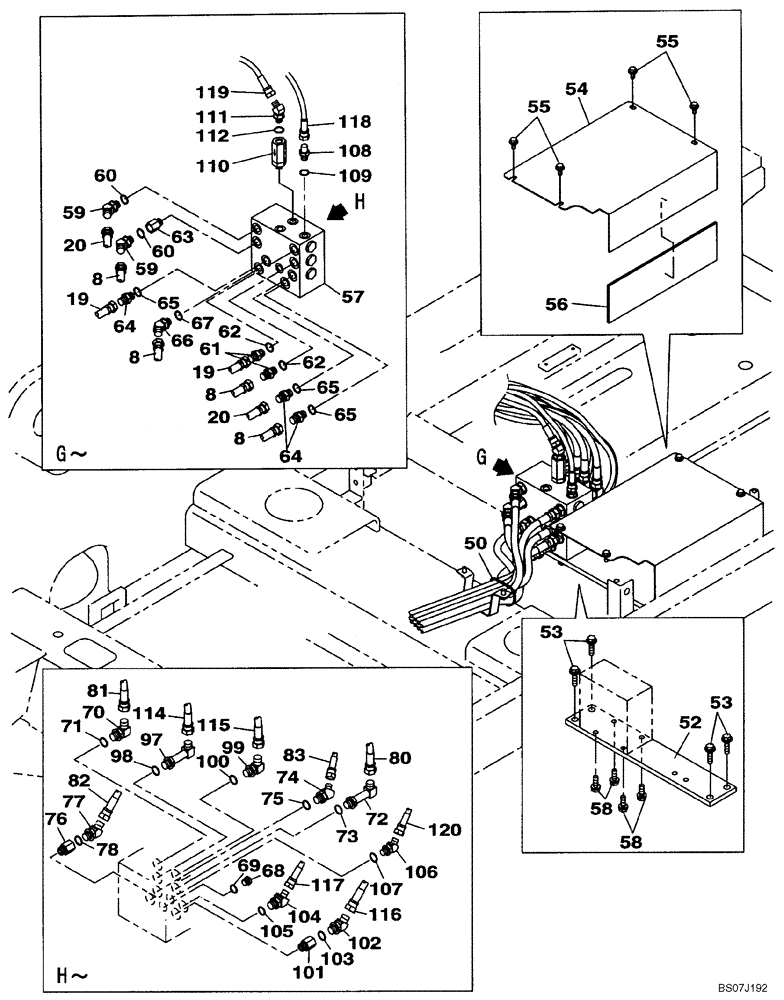

Запчасти Case CX130B (08-17) - PILOT CONTROL LINES, PARTITION - STANDARD (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
8
159211A1
HYDRAULIC HOSE
2000 mm (78-3/4 in)
4шт.
19
159217A1
HYDRAULIC HOSE
1850 mm (72-7/8 in)
2шт.
20
KRJ4381
HYDRAULIC HOSE,9.50 mm ID x 1800.00 mm
2шт.
50
150496A1
MOUNTING CLIP
1шт.
52
KHJ13750
SUPPORT
1шт.
53
166352A1
BOLT
4шт.
54
KNJ14860
COVER
COVER
1шт.
55
166350A1
BOLT
4шт.
56
KNJ12480
SEAL
SEAL CUSHION
1шт.
57
KNJ14441
VALVE SECTION
Replaces KNJ14440, Detail of Valve not available at time of printing.
1шт.
58
166347A1
BOLT,Sems, M10 x 30mm
4шт.
59
157584A1
ELBOW
Incl. 60
2шт.
60
154475A1
O-RING
1шт.
61
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 62
2шт.
62
154475A1
O-RING
1шт.
63
KHJ13790
STUD
1шт.
64
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 65
3шт.
65
154475A1
O-RING
1шт.
66
157584A1
ELBOW
Incl. 67
1шт.
67
154475A1
O-RING
1шт.
68
159002A1
PLUG
Incl. 69
1шт.
69
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
70
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
Incl. 71
1шт.
71
154475A1
O-RING
1шт.
72
KHJ1442
ELBOW
Incl. 73
1шт.
73
154475A1
O-RING
1шт.
74
KHJ1445
ELBOW
Incl. 75
1шт.
75
154475A1
O-RING
1шт.
76
KHJ13790
STUD
1шт.
77
157584A1
ELBOW
Incl. 78
1шт.
78
154475A1
O-RING
1шт.
80
KHJ2099
HOSE
HOSE ASSY.
1шт.
81
KHJ11590
HYDRAULIC HOSE,9.52 mm ID x 1400.00 mm
1250 mm (49-1/4 in)
1шт.
82
KHJ2439
HOSE
1400 mm (55-1/8 in)
1шт.
83
KHJ17170
HYDRAULIC HOSE
HOSE ASSY.
1шт.
97
KHJ1442
ELBOW
Incl. 98
1шт.
98
154475A1
O-RING
1шт.
99
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
Incl. 100
1шт.
100
154475A1
O-RING
1шт.
101
KHJ13790
STUD
1шт.
102
157584A1
ELBOW
Incl. 103
1шт.
103
154475A1
O-RING
1шт.
104
KHJ1445
ELBOW
Incl. 105
1шт.
105
154475A1
O-RING
1шт.
106
150933A1
ELBOW
Incl. 107
1шт.
107
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
108
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 109
1шт.
109
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
110
KHJ10790
FILTER SCREEN
1шт.
111
150933A1
ELBOW
Incl. 112
1шт.
112
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
114
KHJ11590
HYDRAULIC HOSE,9.52 mm ID x 1400.00 mm
1450 mm (57 in)
1шт.
115
KHJ17700
HOSE
HOSE ASSY.
1шт.
116
KHJ11580
HYDRAULIC HOSE,9.52 mm ID x 1350.00 mm
1400 mm (55-1/8 in)
1шт.
117
KHJ2093
HOSE
HOSE ASSY.
1шт.
118
KHJ2327
HOSE
1900 mm (63 in)
1шт.
119
KHJ2088
HOSE
900 mm (35-7/16 in)
1шт.
120
KHJ13800
HOSE
HOSE ASSY.
1шт.
Выбрано товаров: 58
