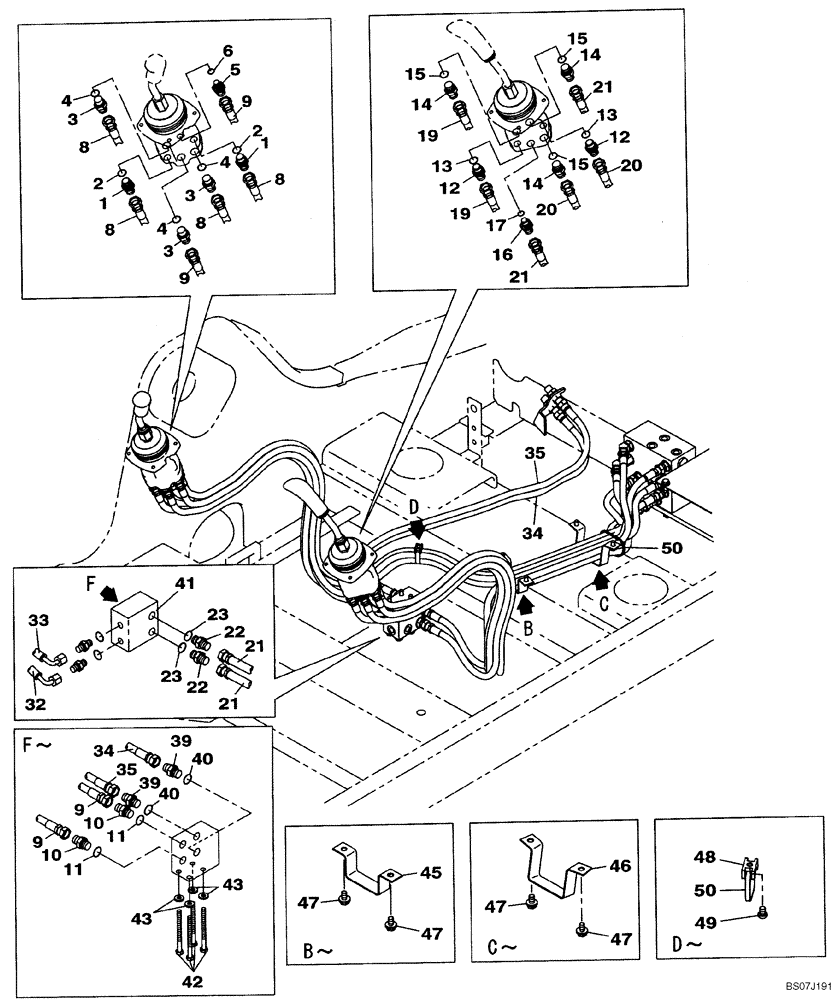

Запчасти Case CX130B (08-16) - PILOT CONTROL LINES, ATTACHMENT - STANDARD (08) - HYDRAULICS

1

KHJ1402

ADAPTER

Incl. 2

2шт.

2

154475A1

O-RING

1шт.

3

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 4

3шт.

4

154475A1

O-RING

1шт.

5

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

Incl. 6

1шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

159211A1

HYDRAULIC HOSE

2000 mm (78-3/4 in)

4шт.

9

159213A1

HYDRAULIC HOSE

1150 mm (45-1/4 in)

2шт.

10

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 11

2шт.

11

154475A1

O-RING

1шт.

12

KHJ1402

ADAPTER

Incl. 13

2шт.

13

154475A1

O-RING

1шт.

14

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 15

3шт.

15

154475A1

O-RING

1шт.

16

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

Incl. 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

19

159217A1

HYDRAULIC HOSE

1850 mm (72-7/8 in)

2шт.

20

KRJ4381

HYDRAULIC HOSE,9.50 mm ID x 1800.00 mm

2шт.

21

159213A1

HYDRAULIC HOSE

1150 mm (45-3/8 in)

2шт.

22

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 23

2шт.

23

154475A1

O-RING

1шт.

32

KHJ2249

HOSE

950 mm (37-3/8 in)

1шт.

33

KHJ2249

HOSE

950 mm (37-3/8 in)

1шт.

34

KHJ14330

HYDRAULIC HOSE

1шт.

35

KHJ14330

HYDRAULIC HOSE

1шт.

39

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 40

2шт.

40

154475A1

O-RING

1шт.

41

KRJ5903

MANIFOLD

1шт.

42

828-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

4шт.

43

153081A1

WASHER

4шт.

45

KHJ13770

COLLAR

1шт.

46

KHJ13760

COLLAR

1шт.

47

166345A1

BOLT

4шт.

48

150860A1

COLLAR

1шт.

49

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

50

150496A1

MOUNTING CLIP

2шт.
