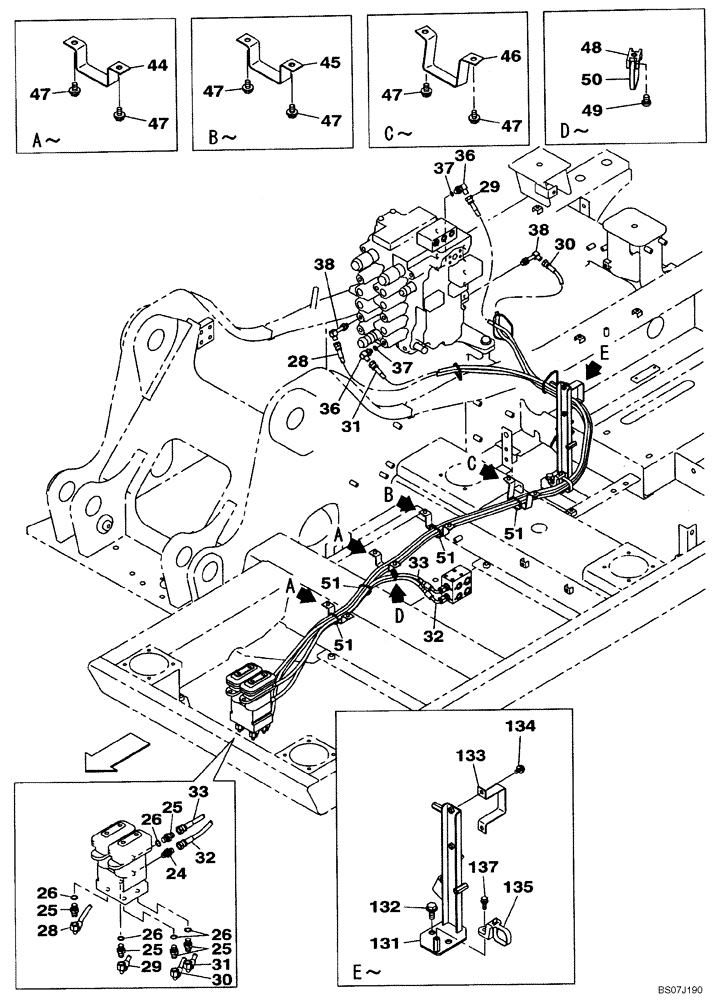

Запчасти Case CX130B (08-15) - PILOT CONTROL LINES, TRAVEL - STANDARD (08) - HYDRAULICS

24

161841A1

HYD CONNECTOR

1шт.

25

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 26

5шт.

26

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

28

KHJ2165

HOSE

2900 mm (114-3/16 in)

1шт.

29

KHJ2147

HOSE,6.3 mm ID x 2700.00 mm

1шт.

30

KHJ2171

HOSE

1шт.

31

KHJ2147

HOSE,6.3 mm ID x 2700.00 mm

2700 mm (106-1/4 in)

1шт.

32

KHJ2249

HOSE

950 mm (37-3/8 in)

1шт.

33

KHJ2249

HOSE

950 mm (37-3/8 in)

1шт.

36

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 37

2шт.

37

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

38

KHJ1178

ELBOW

2шт.

44

KHJ1220

COLLAR

2шт.

45

KHJ13770

COLLAR

1шт.

46

KHJ13760

COLLAR

1шт.

47

166345A1

BOLT

8шт.

48

150860A1

COLLAR

1шт.

49

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

50

150496A1

MOUNTING CLIP

1шт.

51

150498A1

MOUNTING CLIP

4шт.

131

KNJ12500

BRACKET

BRACKET

1шт.

132

166352A1

BOLT

2шт.

133

161095A1

CLAMP

1шт.

134

166345A1

BOLT

2шт.

135

KHR2581

CLAMP

1шт.

137

KHJ1215

BOLT,Spcl

1шт.
