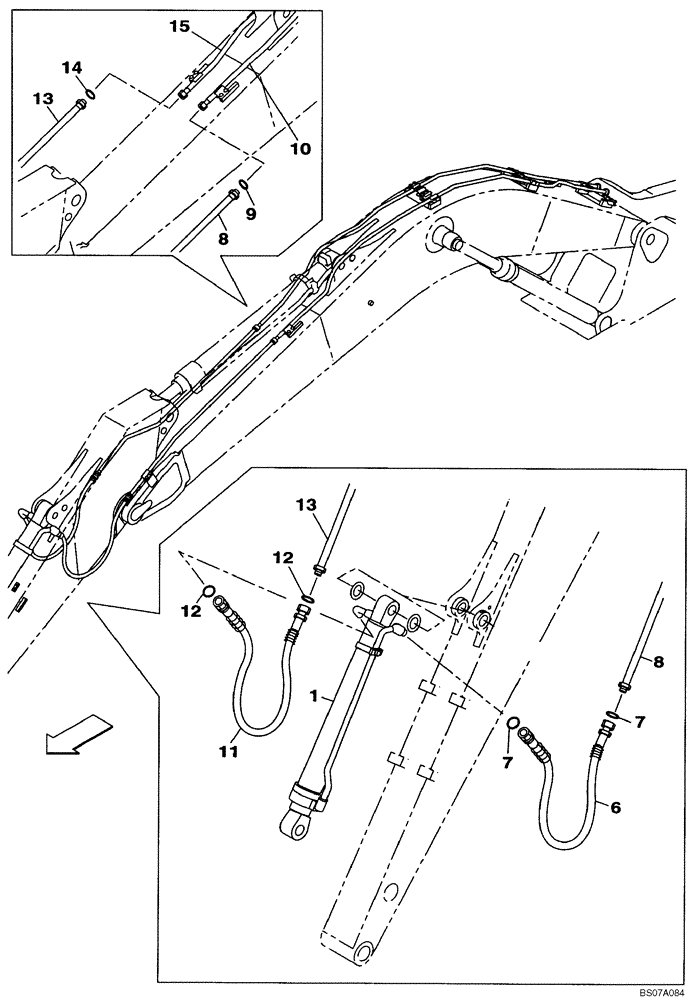

Запчасти Case CX130B (08-13) - HYDRAULICS - BUCKET LINE (08) - HYDRAULICS

KNV12541

BUCKET CYLINDER

See Figure 08-86

1шт.

KNV12541R

REMAN-HYD CYLINDER

Bucket

1шт.

KNV12541C

CORE-HYD CYLINDER

Return Number

1шт.

6

KNV15700

HYDRAULIC HOSE,1650.00 mm

1шт.

7

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

8

KNV13860

HYD TUBE

1шт.

9

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

10

KNV16800

HYD TUBE

TUBE ASSY.

1шт.

11

KNV15700

HYDRAULIC HOSE,1650.00 mm

1шт.

12

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

13

KNV13870

HYD TUBE

TUBE ASSY.

1шт.

14

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

15

KNV16810

HYD TUBE

TUBE ASSY.

1шт.
