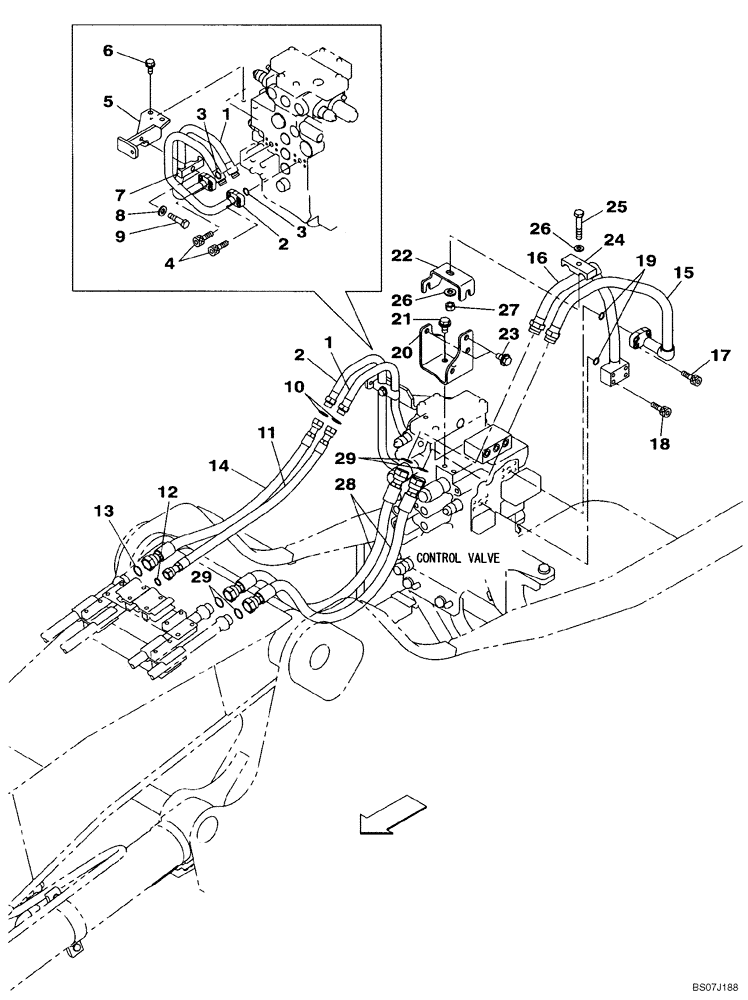

Запчасти Case CX130B (08-11) - HYDRAULICS - ARM AND BUCKET (08) - HYDRAULICS

1

KNJ12380

HYD TUBE

TUBE ASSY.

1шт.

2

KNJ12390

HYD TUBE

TUBE ASSY

1шт.

3

161096A1

O-RING

2шт.

4

862-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

8шт.

5

KNJ12400

SUPPORT

1шт.

6

166052A1

BOLT

2шт.

7

KMJ0835

PIPE CLAMP

1шт.

8

150811A1

WASHER

1шт.

9

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

1шт.

10

155204A1

O-RING

2шт.

11

KNJ12410

HOSE ASSY.

1шт.

12

155204A1

O-RING

1шт.

13

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

14

KNJ12420

HOSE ASSY.

HOSE ASSY.

1шт.

15

KNJ11550

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

16

KNJ11560

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

17

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

18

862-10055

HEX SOC SCREW,M10 x 55mm, Cl 12.9

4шт.

19

155210A1

O-RING

2шт.

20

KNJ11580

BRACKET

1шт.

21

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

22

KNJ11590

BRACKET

1шт.

23

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

24

152085A1

COLLAR

1шт.

25

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.

26

150811A1

WASHER

2шт.

27

829-1412

NUT,M12, Cl 10.9

1шт.

28

KNJ12430

HOSE ASSY.

HOSE ASSY.

2шт.

29

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.
