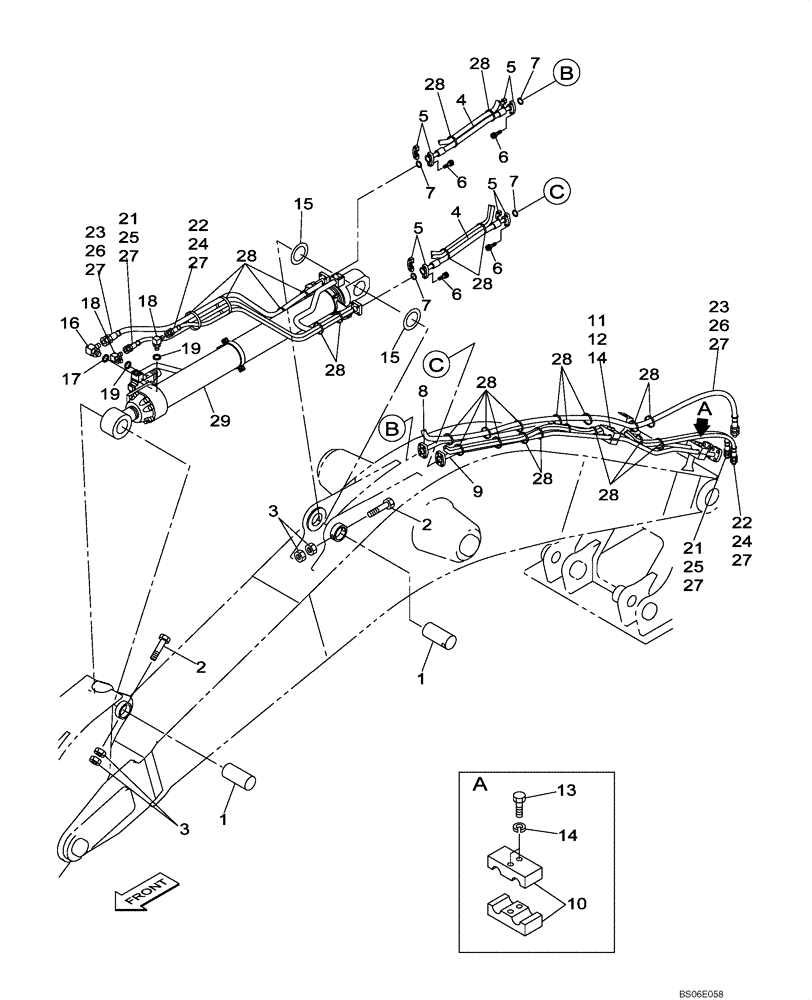

Запчасти Case CX800 (08-019-00[01]) - HYDRAULIC CIRCUIT - DIPPER CYLINDER - BOOM (8.40 M) - (WITH VALVE, PRESSURE RELIEF) (08) - HYDRAULICS

1

KUV0025

PIN

2шт.

2

132R030W260N

BOLT,M30 x 2 x 260mm

M30 x 2 x 260

2шт.

3

829-13430

NUT,M30 x 1.5, Cl 10

4шт.

4

KUV0051

HYDRAULIC HOSE,38.10 mm ID x 1550.00 mm

2шт.

5

KTJ0169

FLANGE

8шт.

6

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

16шт.

7

168211A1

O-RING

4шт.

8

KUV0294

HYD TUBE

1шт.

9

KUV0293

HYD TUBE

1шт.

10

KUV0175

CLAMP BRACKET

2шт.

11

KUV0058

CLAMP BRACKET

2шт.

12

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

2шт.

13

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

2шт.

14

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

4шт.

15

KHV0287

SHIM

1шт.

16

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 17

1шт.

17

154503A1

O-RING

1шт.

18

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 19

2шт.

19

154475A1

O-RING

1шт.

21

KHJ2361

HOSE

8500 mm

1шт.

22

KHJ2360

HOSE

8800 mm

1шт.

23

KUV0284

HYDRAULIC HOSE,19.00 mm ID x 8200.00 mm

1шт.

24

KHV0477

PLASTIC-RUBBER TUBE

8600 mm

1шт.

25

KHV0478

PLASTIC-RUBBER TUBE

8300 mm

1шт.

26

KHV0476

PLASTIC-RUBBER TUBE

8000 mm

1шт.

27

150067A1

MOUNTING CLIP

150 mm

6шт.

28

150071A1

MOUNTING CLIP

380 mm

25шт.

29

KUV10390

HYDRAULIC CYLINDER

Arm; See Figure 08-305-00 01

1шт.
