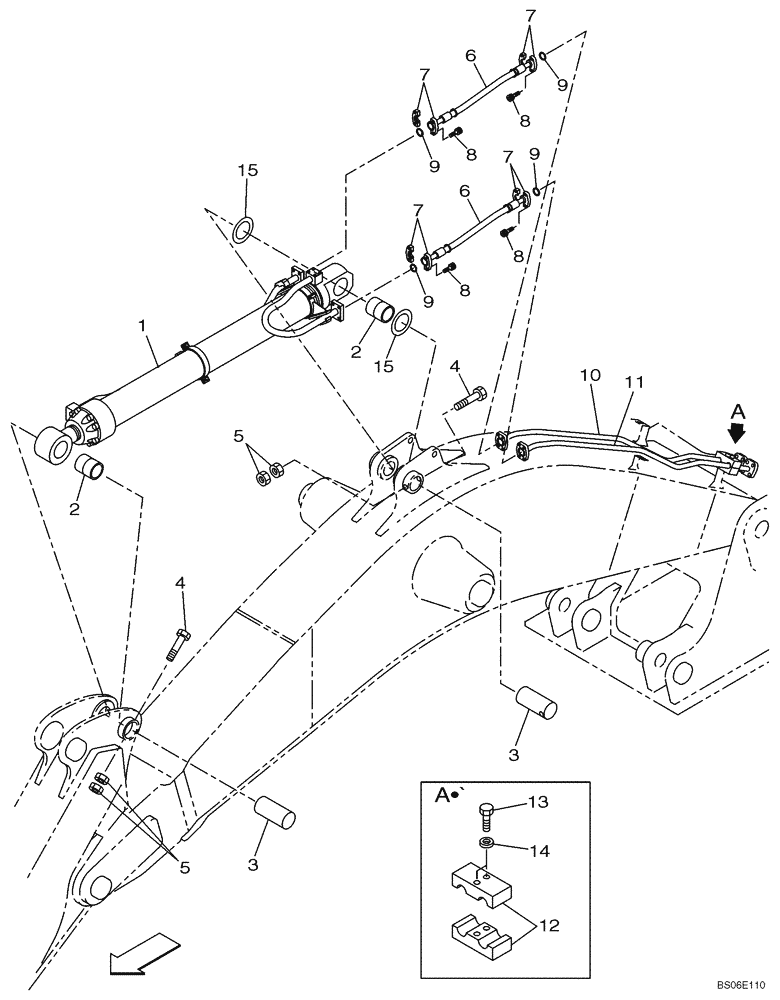

Запчасти Case CX800 (08-016-00[01]) - HYDRAULIC CIRCUIT - DIPPER CYLINDER - BOOM (7.25 M) - (WITHOUT VALVE, PRESSURE RELIEF) (08) - HYDRAULICS

1

KUV10050

HYDRAULIC CYLINDER

Arm; Incl. 2; No Other Components Parts Available At Time of Printing

1шт.

2

KUV0037

BUSHING

2шт.

3

KUV0025

PIN

2шт.

4

132R030W260N

BOLT,M30 x 2 x 260mm

M30 x 2 x 260

2шт.

5

829-13430

NUT,M30 x 1.5, Cl 10

4шт.

6

KUV0051

HYDRAULIC HOSE,38.10 mm ID x 1550.00 mm

2шт.

7

KTJ0169

FLANGE

8шт.

8

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

16шт.

9

168211A1

O-RING

4шт.

10

KUV0332

HYD TUBE

1шт.

11

KUV0333

HYD TUBE

1шт.

12

KUV0175

CLAMP BRACKET

2шт.

13

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

2шт.

14

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

W 16

2шт.

15

KHV0287

SHIM

1шт.
