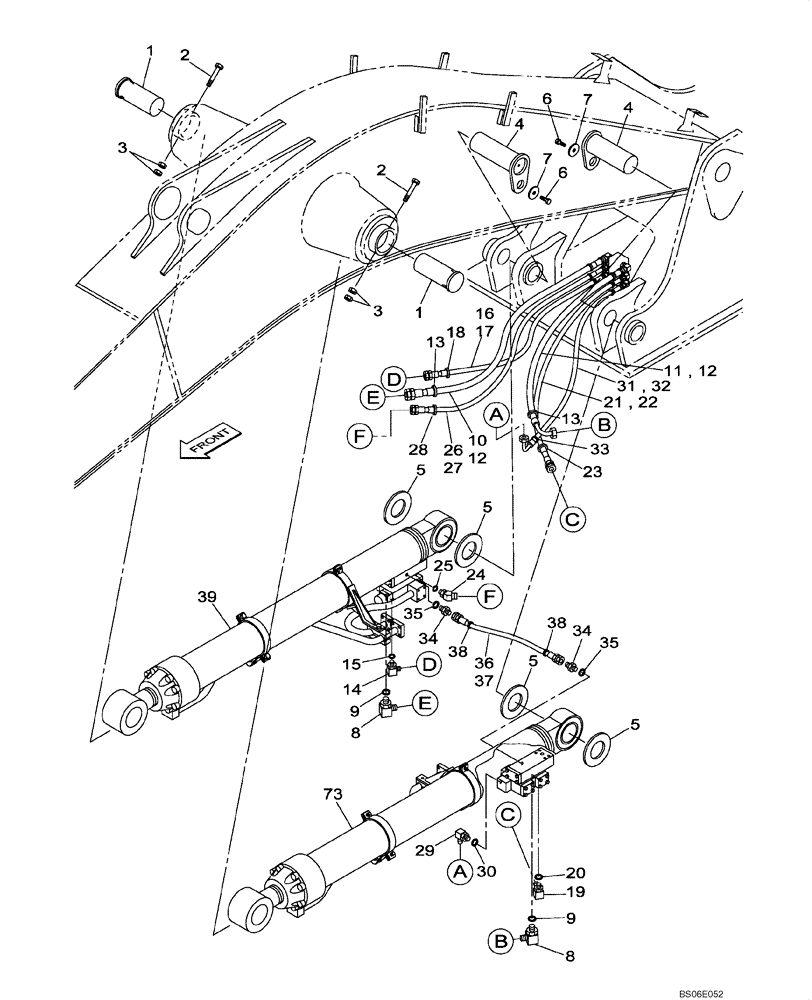

Запчасти Case CX800 (08-013-00[01]) - HYDRAULIC CIRCUIT - BOOM CYLINDER (WITH VALVE, PRESSURE RELIEF) (08) - HYDRAULICS

1

KUV0026

PIN

1шт.

2

132R030W260N

BOLT,M30 x 2 x 260mm

M30 x 2 x 260; Was a 240 Length Bolt

2шт.

3

829-13430

NUT,M30 x 1.5, Cl 10

4шт.

4

KUV10200

PIN

2шт.

5

KHV0287

SHIM

1шт.

6

102R020Y035R

BOLT

M20 x 35

2шт.

7

KWV0090

SPACER

2шт.

8

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 9

2шт.

9

154503A1

O-RING

1шт.

10

KUV0330

HYDRAULIC HOSE,19.00 mm ID x 1400.00 mm

1шт.

11

KUV0269

HYDRAULIC HOSE,19.00 mm ID x 1200.00 mm

1шт.

12

KHV0462

PLASTIC-RUBBER TUBE

1000 mm

2шт.

13

150067A1

MOUNTING CLIP

150 mm

4шт.

14

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 15

1шт.

15

154475A1

O-RING

1шт.

16

152760A1

HOSE

1350 mm

1шт.

17

150774A1

PLASTIC-RUBBER TUBE

1000 mm

1шт.

18

150067A1

MOUNTING CLIP

150 mm

2шт.

19

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 20

1шт.

20

154475A1

O-RING

1шт.

21

152757A1

HOSE ASSY.

1200 mm

1шт.

22

150774A1

PLASTIC-RUBBER TUBE

1000 mm

1шт.

23

150067A1

MOUNTING CLIP

150 mm

2шт.

24

157584A1

ELBOW

Incl. 25

1шт.

25

154475A1

O-RING

1шт.

26

152753A1

HOSE,95.00 mm ID x 1100.00 mm

1шт.

27

150774A1

PLASTIC-RUBBER TUBE

1000 mm

1шт.

28

150067A1

MOUNTING CLIP

150 mm

2шт.

29

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 30

1шт.

30

154475A1

O-RING

1шт.

31

KHJ1607

HYDRAULIC HOSE

1300 mm

1шт.

32

150774A1

PLASTIC-RUBBER TUBE

1000 mm

1шт.

33

150067A1

MOUNTING CLIP

150 mm

2шт.

34

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 35

2шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

36

157846A1

HOSE ASSY.,6.30 mm ID x 650.00 mm

1шт.

37

157767A1

PLASTIC-RUBBER TUBE

600 mm

1шт.

38

150067A1

MOUNTING CLIP

150 mm

2шт.

39

KUV10380

HYDRAULIC CYLINDER

Arm, Right Hand; See Figure 08-014-00 01

1шт.

73

KUV10380

HYDRAULIC CYLINDER

Arm, Left Hand; See Figure 08-014-00 01

1шт.
