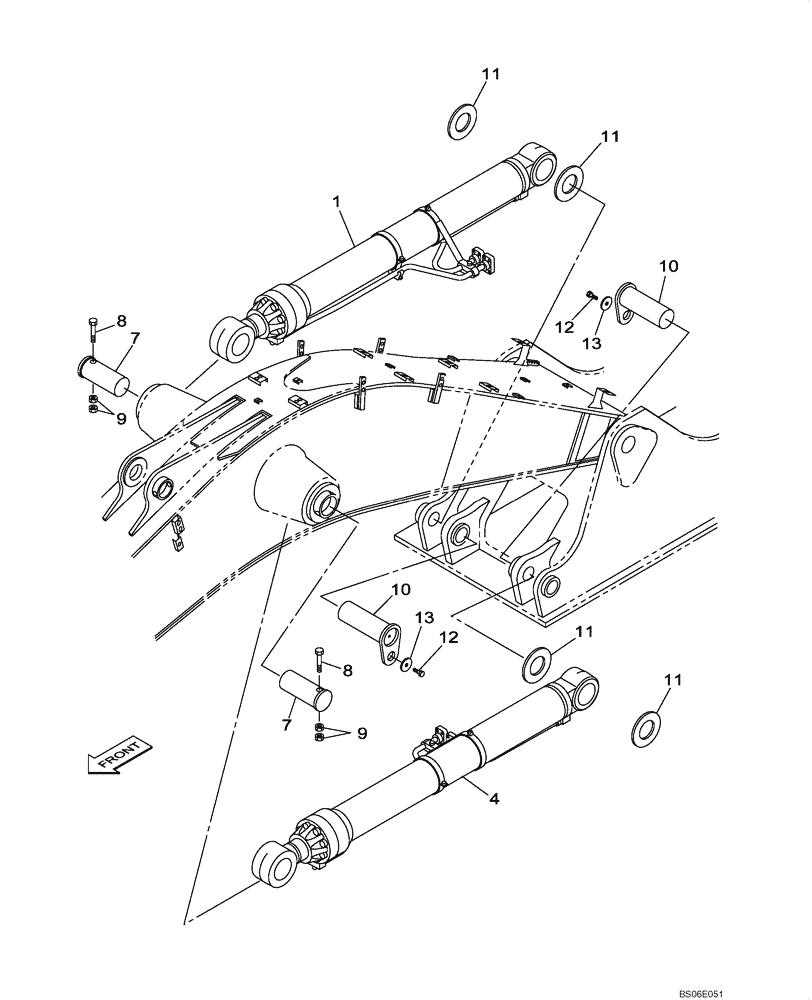

Запчасти Case CX800 (08-012-00[01]) - HYDRAULIC CIRCUIT - BOOM CYLINDER (WITHOUT VALVE, PRESSURE RELIEF) (08) - HYDRAULICS

1

KUV10010

HYDRAULIC CYLINDER

Boom, Right Hand; See Figure 08-300-00 01

1шт.

4

KUV10020

HYDRAULIC CYLINDER

Boom, Left Hand; See Figure 08-301-00 01

1шт.

7

KUV0026

PIN

2шт.

8

132R030W260N

BOLT,M30 x 2 x 260mm

M30 x 2 x 260; Was a 240 Length Bolt

2шт.

9

829-13430

NUT,M30 x 1.5, Cl 10

4шт.

10

KUV10200

PIN

2шт.

11

KHV0287

SHIM

1шт.

12

102R020Y035R

BOLT

M20 x 35

2шт.

13

KWV0090

SPACER

2шт.
