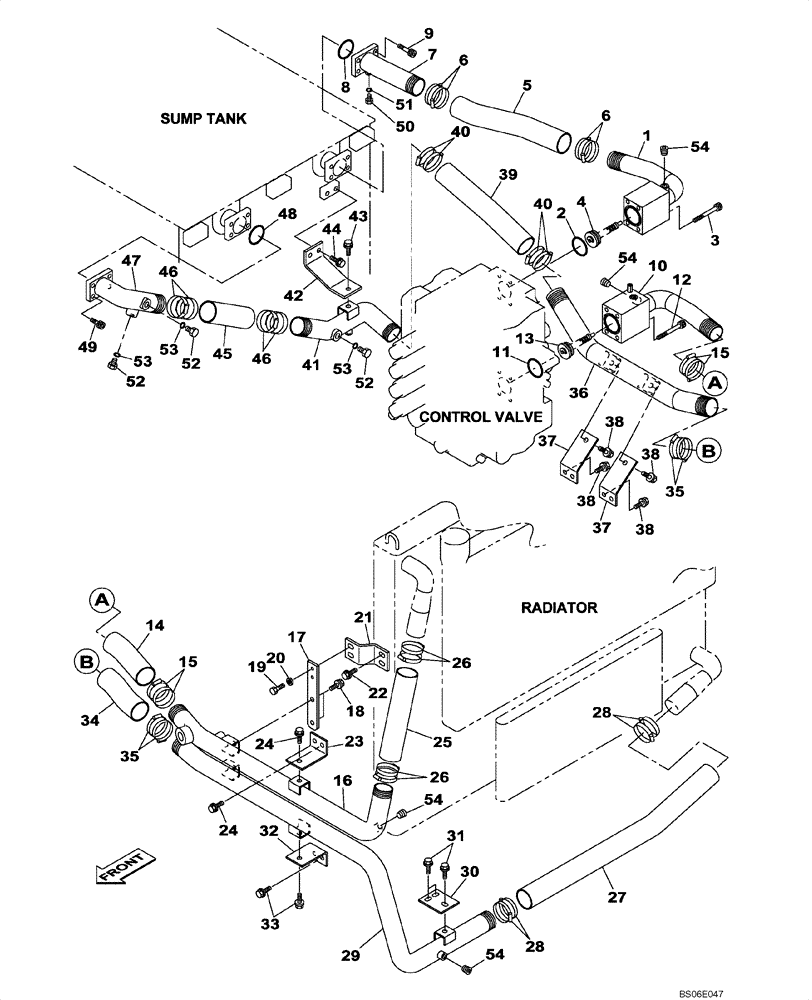

Запчасти Case CX800 (08-005-00[01]) - HYDRAULIC CIRCUIT - COOLER (08) - HYDRAULICS

1

KUJ10420

HYD TUBE,52.9 mm ID x 60.5 mm OD

1шт.

2

154681A1

O-RING

1шт.

3

KBJ0340

BOLT,Spcl

M12 x 150

4шт.

4

KHJ18440

CHECK VALVE

Replaces KHJ1551

1шт.

5

KHJ12570

HYDRAULIC HOSE

430 mm

1шт.

6

150893A1

CLAMP

4шт.

7

KUJ10410

HYD TUBE,52.9 mm ID x 60.5 mm OD

1шт.

8

154641A1

O-RING

1шт.

9

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

4шт.

10

KUJ10570

HYD TUBE,52.9 mm ID x 60.5 mm OD

1шт.

11

154681A1

O-RING

1шт.

12

KBJ0340

BOLT,Spcl

M12 x 150

4шт.

13

KHJ15220

CHECK VALVE

Replaces KHJ1863

1шт.

14

KHJ10180

HYDRAULIC HOSE

370 mm

1шт.

15

150893A1

CLAMP

4шт.

16

KUJ10430

HYD TUBE

1шт.

17

KWJ0032

SUPPORT

1шт.

18

166352A1

BOLT

M12 x 30

2шт.

19

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

20

150811A1

WASHER

W 12

2шт.

21

KWJ0031

SUPPORT

1шт.

22

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

23

KWJ0033

SUPPORT

1шт.

24

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

25

KHJ10170

HYDRAULIC HOSE

320 mm

1шт.

26

150893A1

CLAMP

4шт.

27

KHJ10200

HYDRAULIC HOSE

900 mm

1шт.

28

150893A1

CLAMP

4шт.

29

KUJ10440

HYD TUBE,52.9 mm ID x 60.5 mm OD

1шт.

30

KWJ0034

SUPPORT

1шт.

31

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

32

KWJ0033

SUPPORT

1шт.

33

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

34

KHJ10180

HYDRAULIC HOSE

370 mm

1шт.

35

150893A1

CLAMP

4шт.

36

KUJ10450

HYD TUBE,52.9 mm ID x 60.5 mm OD

1шт.

37

KWJ0028

SUPPORT

2шт.

38

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

39

KHJ12570

HYDRAULIC HOSE

430 mm

1шт.

40

150893A1

CLAMP

4шт.

41

KUJ10400

HYD TUBE,52.9 mm ID x 60.5 mm OD

1шт.

42

KWJ0026

SUPPORT

1шт.

43

166352A1

BOLT

M12 x 30

1шт.

44

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

45

KHJ1259

HYDRAULIC HOSE

1шт.

46

150893A1

CLAMP

4шт.

47

KWJ0024

HYD TUBE,52.9 mm ID x 60.5 mm OD

1шт.

48

154641A1

O-RING

1шт.

49

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

4шт.

50

153105A1

PLUG

Incl. 51; If Used

1шт.

51

154475A1

O-RING

1шт.

52

152924A1

PLUG

Incl. 53; If Used

3шт.

53

154503A1

O-RING

1шт.

54

150824A1

PLUG

If Used

4шт.
