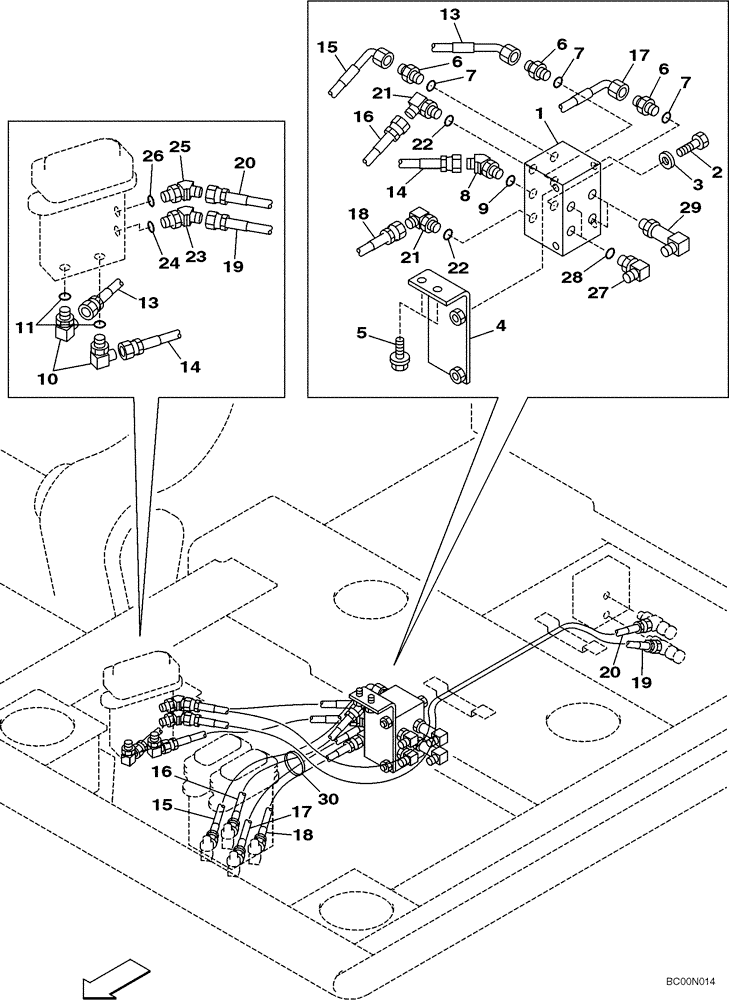

Запчасти Case CX800 (06-012-00[01]) - HYDRAULICS - TRAVEL CONTROL, SINGLE PEDAL (06) - POWER TRAIN

1

KHJ17130

VALVE SECTION

See Figure 08-273-00; Replaces 160355A1

1шт.

2

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

2шт.

3

150409A1

WASHER

2шт.

4

KBJ3026

SUPPORT

1шт.

5

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 7

3шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

150933A1

ELBOW

Incl. 9

1шт.

9

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

10

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 11

2шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

13

FAJ0418

HOSE

1шт.

14

156735A1

HOSE,6.3 mm ID x 350.00 mm

1шт.

15

159349A1

HOSE ASSY.

1шт.

16

KAJ3253

HYDRAULIC HOSE

1шт.

17

159349A1

HOSE ASSY.

1шт.

18

KAJ3253

HYDRAULIC HOSE

1шт.

19

158100A1

HOSE

1шт.

20

164727A1

HYDRAULIC HOSE,6.30 mm ID x 900.00 mm

1шт.

21

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 22

2шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

23

KHJ0994

ADAPTER

Incl. 24

1шт.

24

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

25

150933A1

ELBOW

Incl. 26

1шт.

26

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

27

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 28

2шт.

28

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

29

KHJ1178

ELBOW

2шт.

30

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.
