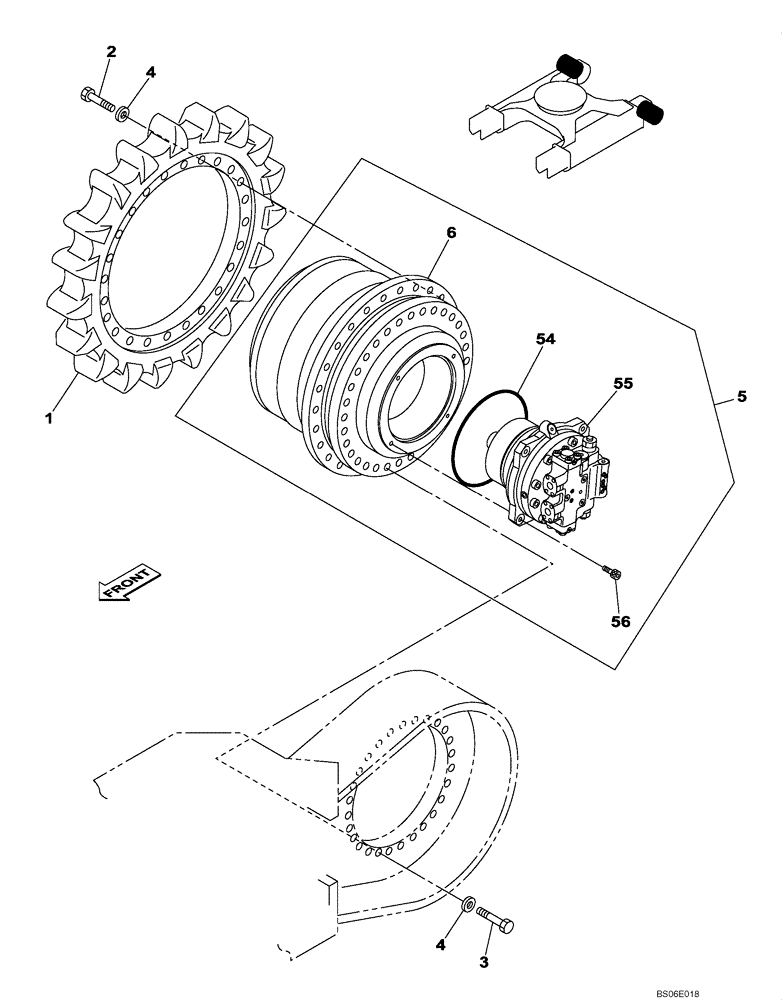

Запчасти Case CX800 (06-001-00[01]) - TRAVEL MOTOR AND REDUCTION GEAR (06) - POWER TRAIN

1

KUA10170

SPROCKET

2шт.

2

102R027Y090N

BOLT

M27 x 90

48шт.

3

102R027Y100N

BOLT

M27 x 100

52шт.

4

157544A1

WASHER

W27

100шт.

5

KUA10590

MOTO-REDUCTION GEAR

Incl. 6, 54 - 56

2шт.

6

KUA10580

REDUCER

See Figure 06-002-001

1шт.

54

151524A1

O-RING

1шт.

55

KUA0282

MOTOR, HYDRAULIC

See Figure 06-003-00 01 - 06-005-00 01

1шт.

56

150807A1

BOLT,Hex Skt, M18 x 2.5 x 50mm

M18 x 50

8шт.
