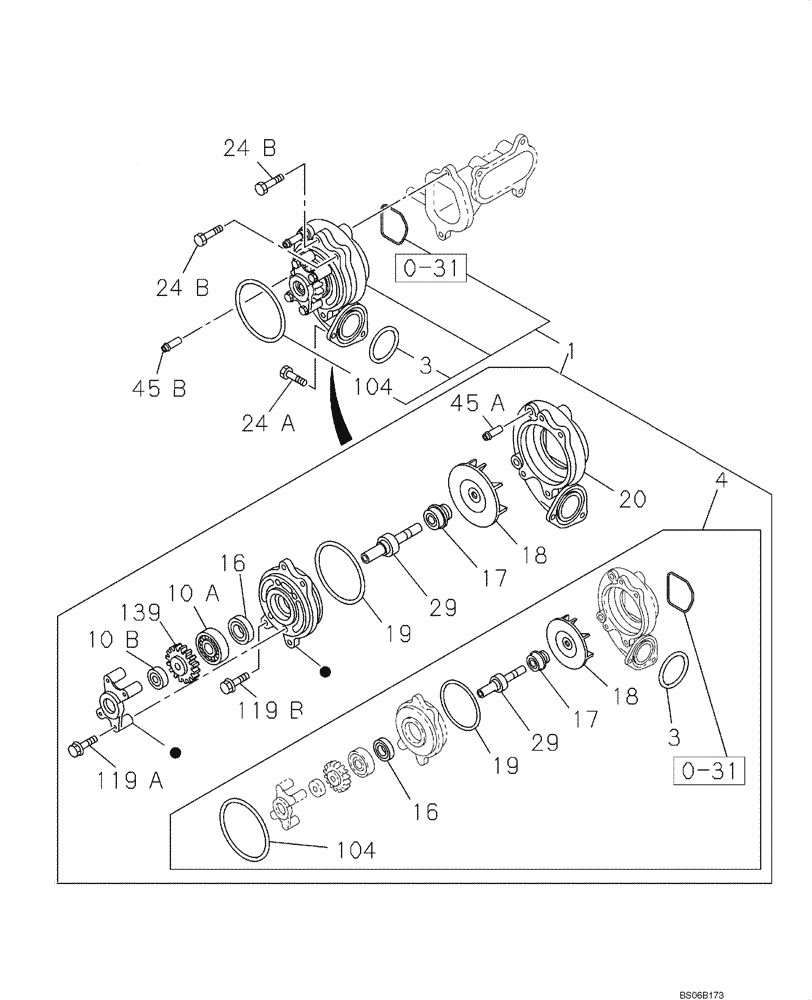

Запчасти Case CX800 (02-030-01[01]) - WATER PUMP SYSTEM (02) - ENGINE

0-31

438021A1

GASKET

See Figure 02-031-01 01; Replaces 87384803

1шт.

1

87384788

WATER PUMP

Incl. 0-31, 3, 4, 10A, 10B, 16 - 20, 29, 45A, 104, 119A, 119B, 139

1шт.

3

426093A1

GASKET

1шт.

4

87707411

KIT

Repair, Incl. 0-31, 3, 16 To 19, 29, 104; Replaces 87384790, 426094A1

1шт.

10a

426095A1

BEARING, BALL

1шт.

10b

426096A1

BEARING, BALL

1шт.

16

426097A1

OIL SEAL

1шт.

17

426098A1

SEAL

1шт.

18

87705741

IMPELLER

Replaces 426099A1

1шт.

19

87384793

GASKET

1шт.

20

87384794

COVER

1шт.

24a

419915A1

BOLT

M10 x 25

2шт.

24b

426102A1

BOLT

M10 x 90

4шт.

29

426103A1

BALL BEARING

1шт.

45a

87384795

FERRULE

1шт.

45b

87384796

FERRULE

1шт.

104

426105A1

GASKET

1шт.

119a

288984A1

BOLT

M8 x 40

4шт.

119b

288993A1

FLANGE BOLT

M10 x 20

1шт.

139

87384797

GEAR

1шт.
