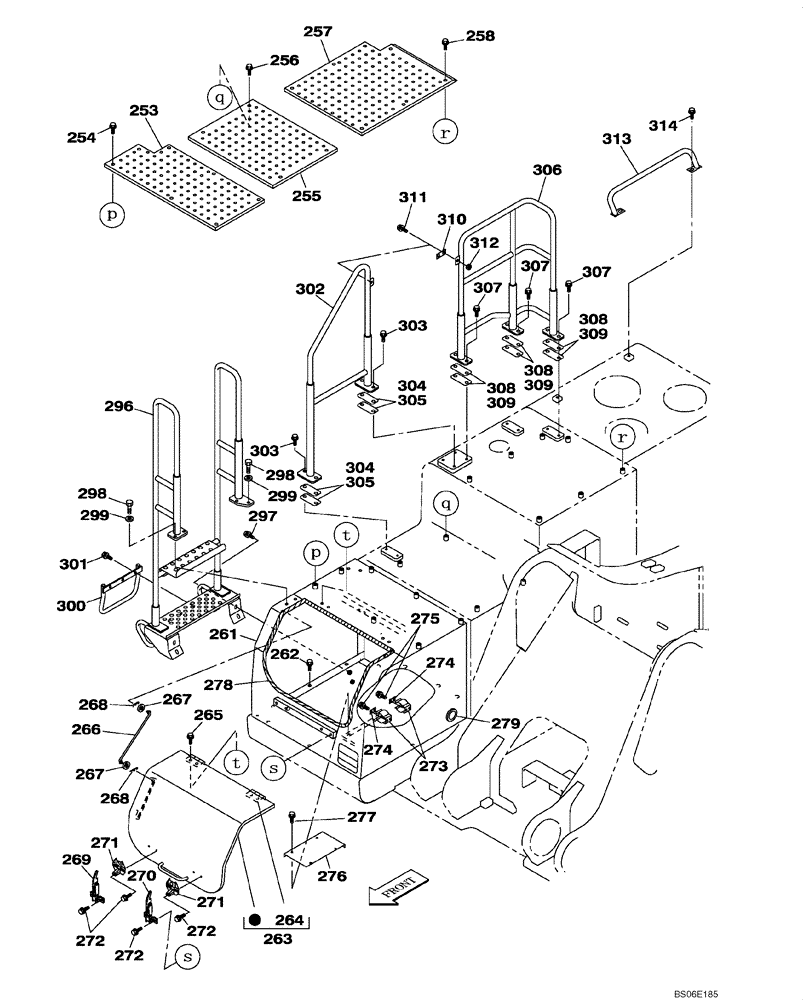

Запчасти Case CX800 (09-016-00[01]) - COWLING FRONT RIGHT HAND-SIDE CABINET - GRAB RAIL (09) - CHASSIS

253

KWN10090B1

STEEL PLATE

1шт.

254

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

7шт.

255

KWN0028B1

STEEL PLATE

1шт.

256

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

257

KWN10190B1

STEEL PLATE

1шт.

258

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

7шт.

261

KWN10020Y2

COVER

1шт.

262

166352A1

BOLT

M12 x 30

7шт.

263

KWN0011Y2

COVER

Incl. 264

1шт.

264

151104A1

HINGE

2шт.

265

166352A1

BOLT

M12 x 30

4шт.

266

KWN0044

STAY

1шт.

267

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

268

153181A1

COTTER PIN

2шт.

269

151356A1

LOCK ASSY

1шт.

270

151361A1

HANDLE

1шт.

271

150785A1

STOP LOCK

2шт.

272

166350A1

BOLT

M8 x 20

8шт.

273

152772A1

HOLDER

2шт.

274

KHN3548

PLATE

2шт.

275

166346A1

BOLT,Sems, M10

M10 x 16

4шт.

276

KWN0125

COVER

1шт.

277

167518A1

BOLT

M8 x 16

4шт.

278

KWN0118

GROMMET

2550 mm

1шт.

279

KRJ0188

GROMMET

1шт.

296

KWN0078Y2

GRAB RAIL

1шт.

297

166352A1

BOLT

M12 x 30

4шт.

298

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

299

150811A1

WASHER

4шт.

300

KUB10220Y2

STEP

1шт.

301

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

302

KWN10250Y2

GRAB RAIL

1шт.

303

166352A1

BOLT

M12 x 30

4шт.

304

KUN10200

ADJUSTING PLATE

1.2 mm

1шт.

305

KUN10210

ADJUSTING PLATE

0.5 mm

1шт.

306

KWN10260Y2

GRAB RAIL

1шт.

307

166352A1

BOLT

M12 x 30

6шт.

308

KUN10200

ADJUSTING PLATE

1.2 mm

1шт.

309

KUN10210

ADJUSTING PLATE

0.5 mm

1шт.

310

KUN0245

PLATE

1шт.

311

166352A1

BOLT

M12 x 30

2шт.

312

829-1412

NUT,M12, Cl 10.9

2шт.

313

KTN10720Y2

HANDRAIL

Replaces KTN1384Y2

1шт.

314

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.
