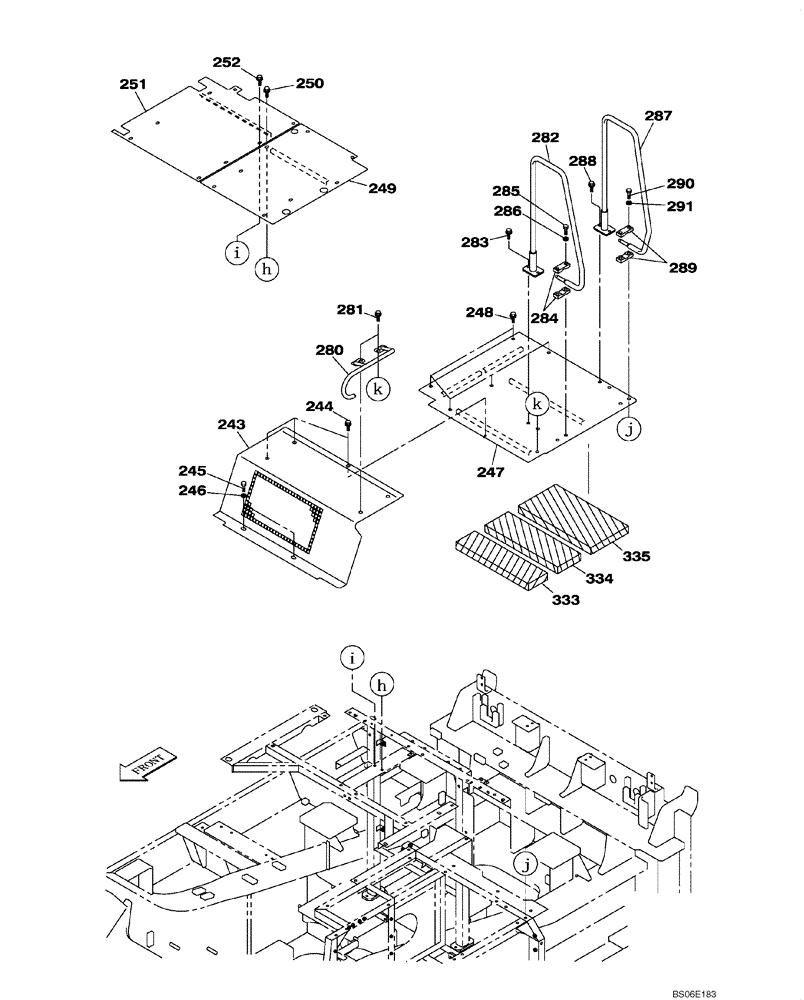

Запчасти Case CX800 (09-014-00[01]) - COWLING - GRAB RAIL (09) - CHASSIS

243

KUN10140Y2

COVER

1шт.

244

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

245

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

246

151161A1

WASHER

2шт.

247

KWN0071Y2

COVER

1шт.

248

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

249

KUN10160Y2

COVER

1шт.

250

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

8шт.

251

KUN10170Y2

COVER

1шт.

252

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

8шт.

280

KUN10180Y2

GRAB RAIL

1шт.

281

166352A1

BOLT

M12 x 30

2шт.

282

KWN0075Y2

GRAB RAIL

1шт.

283

166352A1

BOLT

M12 x 30

2шт.

284

KHN3033

COLLAR

2шт.

285

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

2шт.

286

150811A1

WASHER

W 12

2шт.

287

KWN0076Y2

GRAB RAIL

1шт.

288

166352A1

BOLT

M12 x 30

2шт.

289

KHN3033

COLLAR

2шт.

290

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

2шт.

291

150811A1

WASHER

W 12

2шт.

333

KWN0101

NOISE PROTECTION

1шт.

334

KWN0102

NOISE PROTECTION

1шт.

335

KWN0103

NOISE PROTECTION

1шт.
