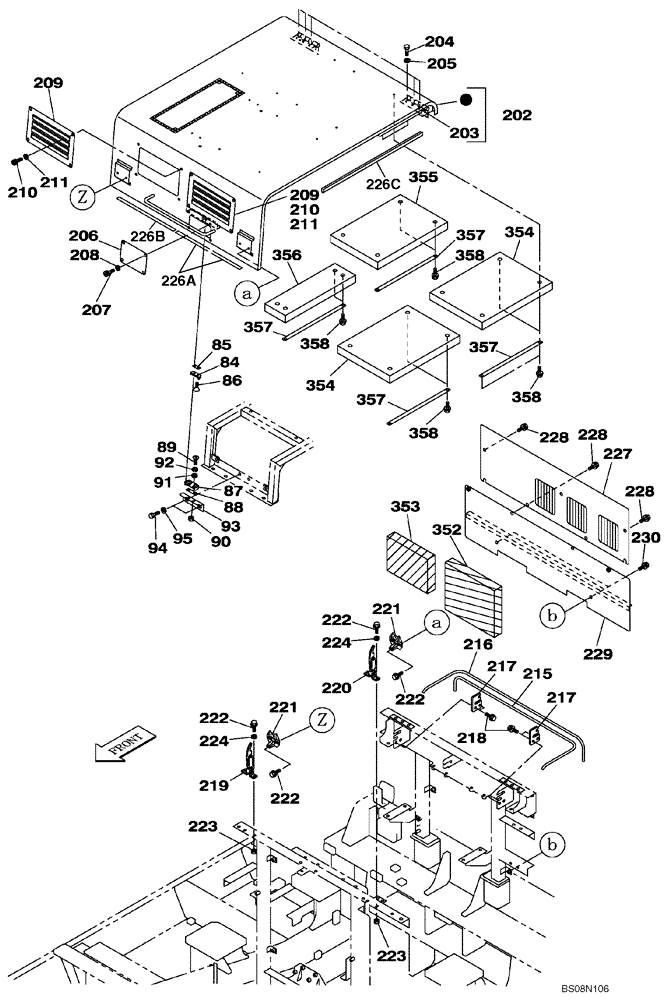

Запчасти Case CX800 (09-012-00[01]) - COWLING - ENGINE COVER (09) - CHASSIS

84

KUN0149

CUPEL

1шт.

85

KBN0762

PLATE

1шт.

86

KAB0188

SCREW

M12 x 25

2шт.

87

KUN0150

CUPEL

1шт.

88

KBN0761

PLATE

1шт.

89

KAB0188

SCREW

M8 x 25

2шт.

90

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

91

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

92

183-108VR

SPRING WASHER

SW 8

2шт.

93

KWN0128

SUPPORT

1шт.

94

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

95

151161A1

WASHER

2шт.

202

KUN10070G1

ENGINE HOOD PANEL

Incl. 203

1шт.

203

152819A1

HINGE

2шт.

204

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

6шт.

205

150811A1

WASHER

W 12

6шт.

206

KWN10080G1

PROTECTION PLATE

1шт.

207

KHJ1632

BOLT,Hex Skt Hd

M10

4шт.

208

150604A1

WASHER

W 10

4шт.

209

KUN10480G1

COVER

2шт.

210

KHJ1632

BOLT,Hex Skt Hd

M10

8шт.

211

150604A1

WASHER

W 10

8шт.

215

KWN0058

TORSION SPRING

1шт.

216

KWN0059

TORSION SPRING

1шт.

217

KWN0060

SUPPORT

2шт.

218

166352A1

BOLT

M12 x 30

4шт.

219

151356A1

LOCK ASSY

1шт.

220

151361A1

HANDLE

1шт.

221

150785A1

STOP LOCK

2шт.

222

167182A1

BOLT,Sems, M8 x 25mm

M8 x 25

8шт.

223

43362

NUT,M8 x 1.25, Cl 10

4шт.

224

153081A1

WASHER

W M8

4шт.

226a

167721A1

SUPPORT LINING

2шт.

226b

KWN10500

SUPPORT LINING

1шт.

226c

KMN1921

SUPPORT LINING

2шт.

227

KUN10450G1

COVER

1шт.

228

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

9шт.

229

KUN10520G1

COVER

1шт.

230

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

352

KWN0114

NOISE PROTECTION

1шт.

353

KWN0115

NOISE PROTECTION

1шт.

354

KWN0080

FOAM

2шт.

355

KWN0081

FOAM

1шт.

356

KWN0082

FOAM

1шт.

357

KWN0083

SEAL RETAINER

8шт.

358

166345A1

BOLT

M8 x 16

16шт.
