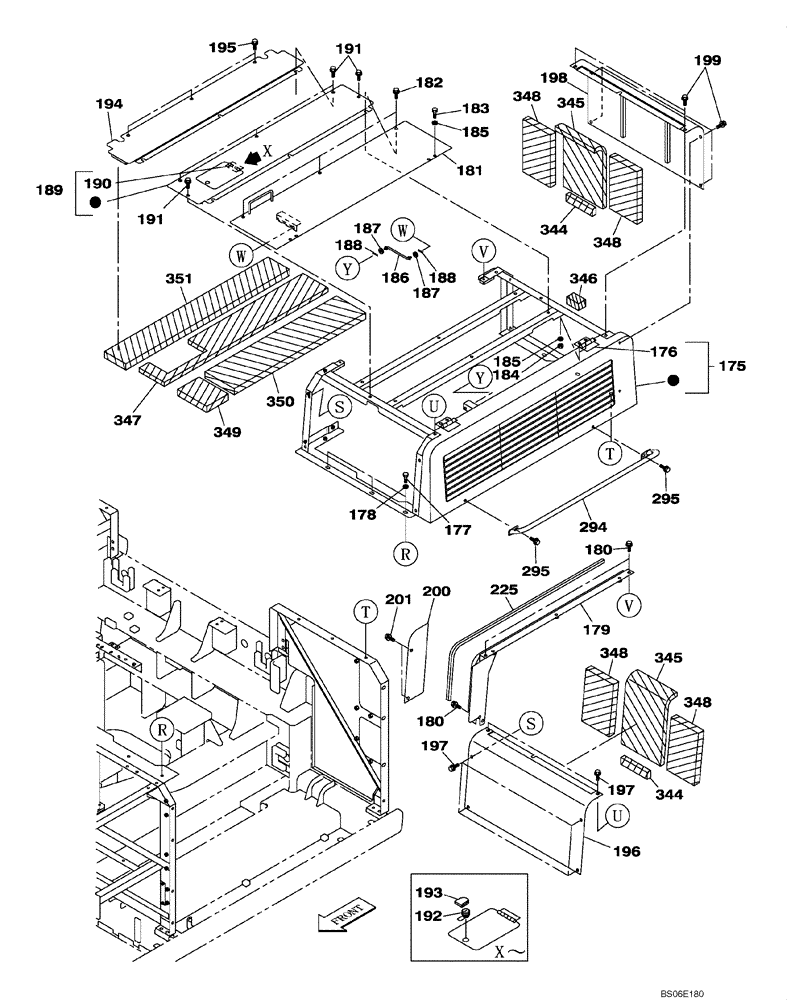

Запчасти Case CX800 (09-011-00[01]) - COWLING - ENGINE COVER (09) - CHASSIS

175

KWN0012G1

ENGINE HOOD PANEL

Incl. 176

1шт.

176

159098A1

HINGE

2шт.

177

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

6шт.

178

151161A1

WASHER

6шт.

179

KUN10100

FRAME

1шт.

180

166352A1

BOLT

M12 x 30

3шт.

181

KWN0050G1

ENGINE HOOD PANEL

1шт.

182

166352A1

BOLT

M12 x 30

3шт.

183

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

184

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

185

150409A1

WASHER

W M10

8шт.

186

159119A1

STAY

1шт.

187

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

188

153181A1

COTTER PIN

2шт.

189

KWN0051G1

ENGINE HOOD PANEL

Incl. 190

1шт.

190

162283A1

HINGE

1шт.

191

166352A1

BOLT

M12 x 30

5шт.

192

KNN0469

LOCK

1шт.

193

KAN2497

CAP

1шт.

194

KWN0052G1

SIEVE

1шт.

195

166352A1

BOLT

M12 x 30

3шт.

196

KWN0048G1

ENGINE HOOD PANEL

1шт.

197

166352A1

BOLT

M12 x 30

6шт.

198

KWN0049G1

ENGINE HOOD PANEL

1шт.

199

166352A1

BOLT

M12 x 30

6шт.

200

KUN10110G1

ENGINE HOOD PANEL

1шт.

201

166352A1

BOLT

M12 x 30

2шт.

225

KRN2295

RUBBER SEAL

2шт.

294

KWN0077Y2

GRAB RAIL

1шт.

295

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

344

KWN0091

SEAL

2шт.

345

KWN0092

SEAL

2шт.

346

KWN0093

SEAL

1.шт.

347

KWN0094

SEAL

1шт.

348

KWN0107

NOISE PROTECTION

4шт.

349

KWN0108

NOISE PROTECTION

1шт.

350

KWN0109

NOISE PROTECTION

1шт.

351

KWN0110

NOISE PROTECTION

1шт.
