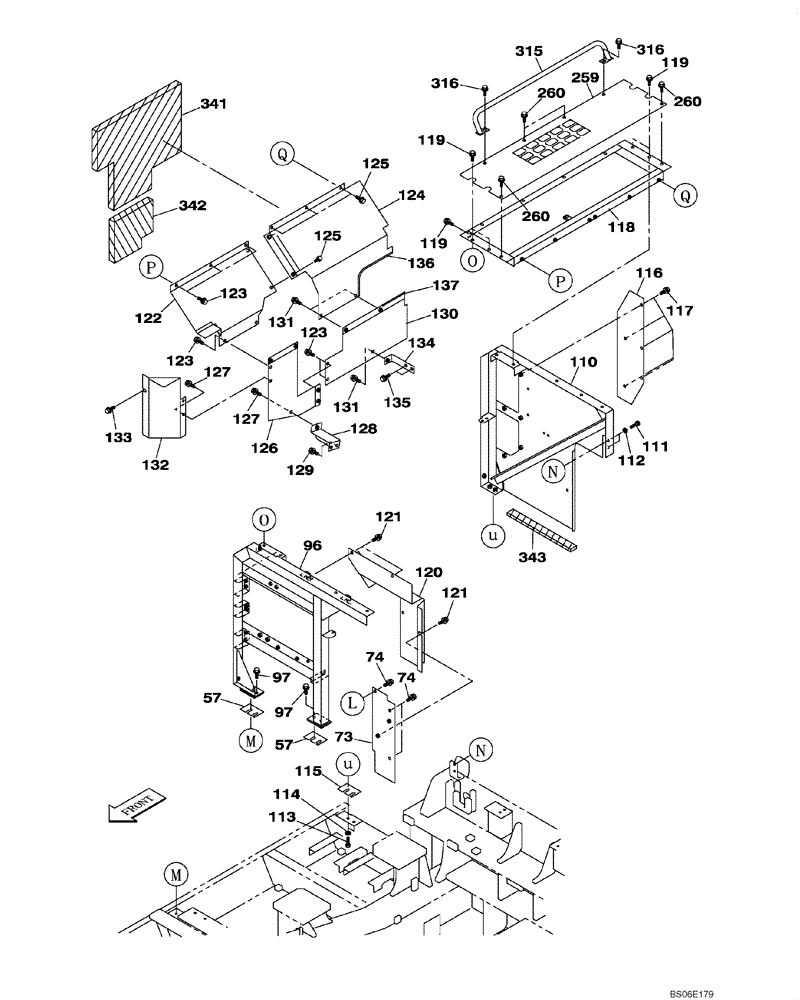

Запчасти Case CX800 (09-010-00[01]) - COWLING - FRAMEWORK (09) - CHASSIS

57

KWN10180

ADJUSTING PLATE

1.2 mm

1шт.

73

KWN0021

COVER

1шт.

74

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

Replaces 152718A1

3шт.

74.1

150811A1

WASHER

Not Illustrated

3шт.

74.2

KHN13750

SPACER

Not Illustrated

3шт.

96

KUN10380

FRAME

1шт.

97

166352A1

BOLT

M12 x 30

4шт.

110

KUN10390

FRAME

1шт.

111

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

112

151161A1

WASHER

2шт.

113

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

114

150811A1

WASHER

2шт.

115

KWN10180

ADJUSTING PLATE

1.2 mm

1шт.

116

KWN10120

PROTECTION PLATE

1шт.

117

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

118

KUN10350

FRAME

1шт.

119

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

Replaces 166352A1

6шт.

119.1

150811A1

WASHER

Not Illustrated

6шт.

119.2

162R012VR

NUT

Not Illustrated

6шт.

120

KWN0022

COVER

1шт.

121

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

122

KUN10270

COVER

1шт.

123

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

7шт.

124.

KWN0024

COVER

1шт.

125

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

126

KUN10120

COVER

1шт.

127

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

128

KUN10290

SUPPORT

1шт.

129

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

130

KUN10530

COVER

1шт.

131

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

132

KWN10070

PROTECTION PLATE

1шт.

133

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

1шт.

134

KWN0121

SUPPORT

1шт.

135

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

136

KHN2514

SEAL PROTECTION

400 mm

1шт.

137

KHR2282

SEAL PROTECTION

1шт.

259

KUN10190Y2

COVER

1шт.

260

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

315

KWN0077Y2

GRAB RAIL

1шт.

316

166352A1

BOLT

M12 x 30

2шт.

341

KWN0117

NOISE PROTECTION

1шт.

342

KWN0126

NOISE PROTECTION

1шт.

343

KHJ2554

SEAL

1шт.
