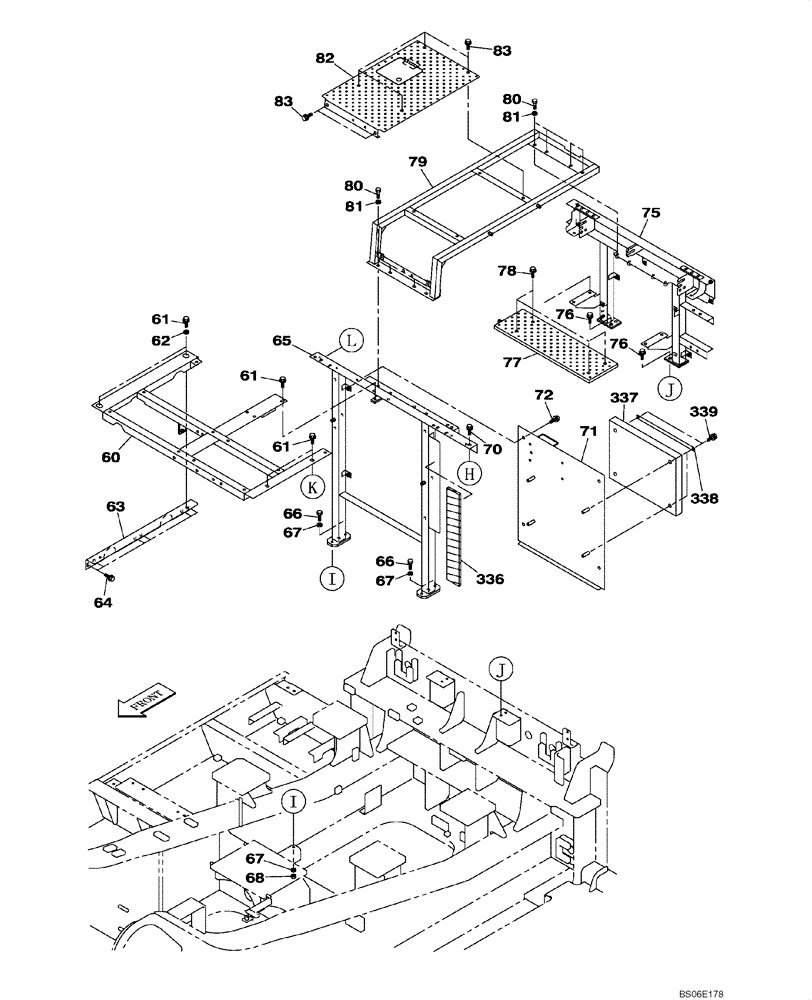

Запчасти Case CX800 (09-009-00[01]) - COWLING - FRAMEWORK (09) - CHASSIS

60

KUN10320

FRAME

1шт.

61

166352A1

BOLT

M12 x 30

5шт.

62

162409A1

WASHER

2шт.

63

KWN0062

SUPPORT

1шт.

64

166352A1

BOLT

M12 x 30

6шт.

65

KUN10370

FRAME

1шт.

66

AES0399

BOLT,Full Thd

M12 x 55

4шт.

67

150811A1

WASHER

W 12

8шт.

68

829-1412

NUT,M12, Cl 10.9

4шт.

70

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

1шт.

71

KWN0065

PROTECTION PLATE

1шт.

72

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

75

KWN10230

FRAME

1шт.

76

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

M12 x 30, Replaces 166352A1

4шт.

76.1

150811A1

WASHER

Not Illustrated

4шт.

76.2

KHN13750

SPACER

Not Illustrated

4шт.

77

KWN0066

STEP

1шт.

78

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

79

KUN10340

FRAME

1шт.

80

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

8шт.

81

150811A1

WASHER

W 12

8шт.

82

KUN10330

STEP

1шт.

83

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

336

KWN0089

SEAL

1шт.

337

KWN0080

FOAM

1шт.

338

KWN0083

SEAL RETAINER

2шт.

339

166345A1

BOLT

M8 x 16

4шт.
