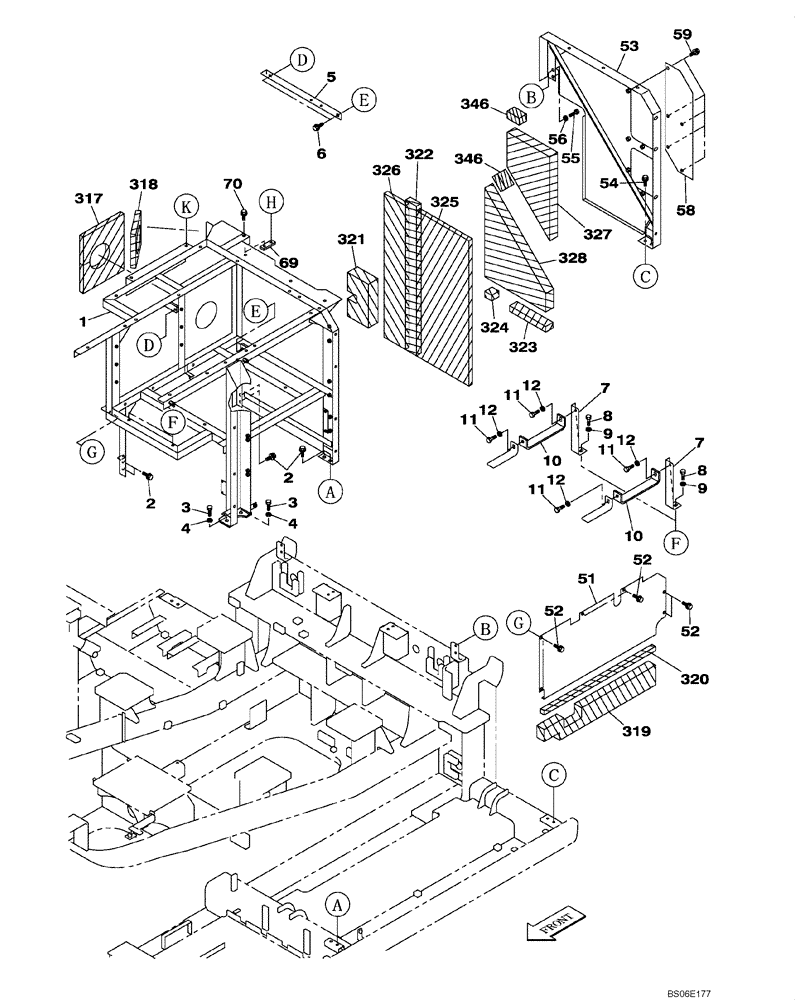

Запчасти Case CX800 (09-008-00[01]) - COWLING - FRAMEWORK (09) - CHASSIS

1

KUN10490

FRAME

1шт.

2

166352A1

BOLT

M12 x 30

2шт.

3

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

6шт.

4

150811A1

WASHER

W 12

6шт.

4.5

KHN13750

SPACER

Not Illustrated

4шт.

5

KWN0037

FRAME

1шт.

6

166352A1

BOLT

M12 x 30

2шт.

7

KWN0061

SUPPORT

2шт.

8

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

9

150811A1

WASHER

W 12

2шт.

10

KUN10230

SUPPORT

2шт.

11

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

12

150811A1

WASHER

4шт.

51

KUN10300

COVER

1шт.

52

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

53

KUN10360

FRAME

1шт.

54

166352A1

BOLT

M12 x 30

2шт.

55

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

56

151161A1

WASHER

2шт.

58

KWN10120

PROTECTION PLATE

1шт.

59

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

69

KWN0063

PLATE

1шт.

70

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

1шт.

317

KWN0084

SEAL

1шт.

318

KUN10400

SEAL

1шт.

319

KUN10410

SEAL

1шт.

320

KUN10420

SEAL

1шт.

321

KWN0088

SEAL

1шт.

322

KWN0090

SEAL

1шт.

323

KWN0095

SEAL

1шт.

324

KWN0096

SEAL

1шт.

325

KWN0104

NOISE PROTECTION

1шт.

326

162441A1

NOISE PROTECTION

1шт.

327

KWN10100

NOISE PROTECTION

1шт.

328

KWN0106

NOISE PROTECTION

1шт.

346

KWN0093

SEAL

2шт.
