(09-004-01[01]) - COUNTERWEIGHT - SOUNDPROOFING - SELF-DETACHING COUNTERWEIGHT SYSTEM

Запчасти Case CX800 (09-004-01[01]) - COUNTERWEIGHT - SOUNDPROOFING - SELF-DETACHING COUNTERWEIGHT SYSTEM (09) - CHASSIS

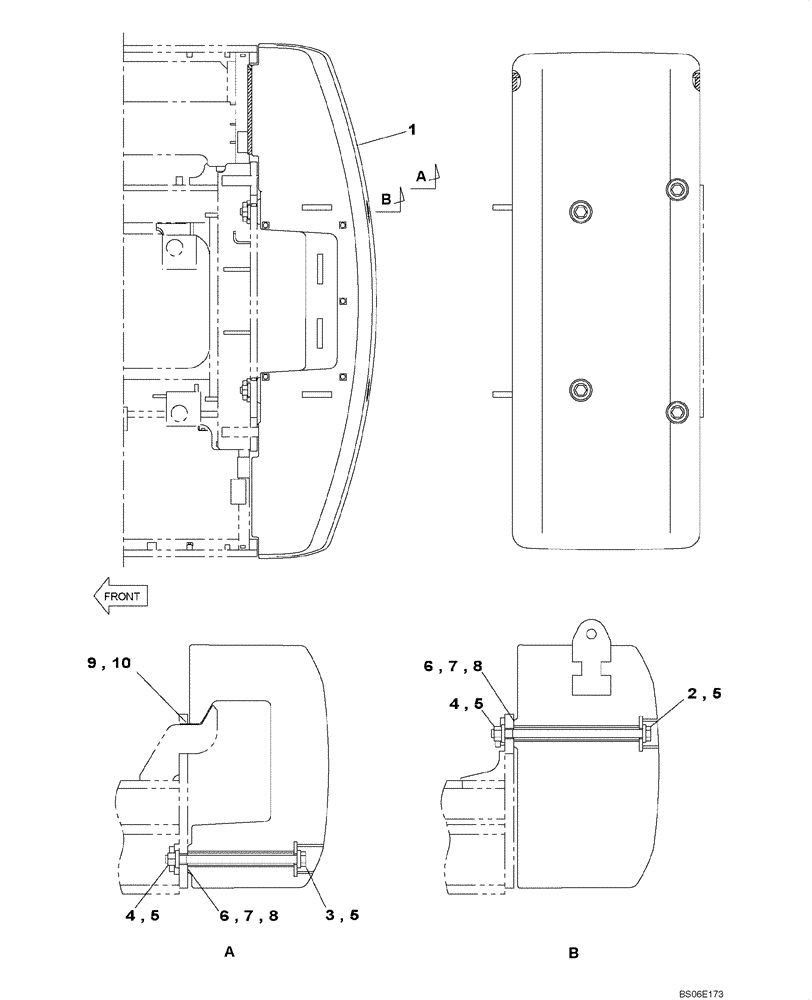

Схема запчастей Case CX800 - (09-004-01[01]) - COUNTERWEIGHT - SOUNDPROOFING - SELF-DETACHING COUNTERWEIGHT SYSTEM (09) - CHASSIS
7
6
5
4
7
8
5
10
9
5
8
4
1
3
6
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KUB0191Y2

WEIGHT PACKAGE

1шт.

2

KUB10300

BOLT

M42 x 810

2шт.

3

163649A1

BOLT,High Strength, Hex, M42 x 700mm

M42 x 700

2шт.

4

KUB10970

NUT

U M42 (Replaced 166UR042VN)

4шт.

5

KUB10960

WASHER

W42 (Replaced 150400A1)

8шт.

6

151020A1

ADJUSTING PLATE

2.0 mm

1шт.

7

151023A1

ADJUSTING PLATE

3.2 mm

1шт.

8

151028A1

ADJUSTING PLATE

4.5 mm

1шт.

9

KUB0110

SHIM,2.3mm Thk

1шт.

10

KUB0111

SHIM,3.2mm Thk

1шт.
