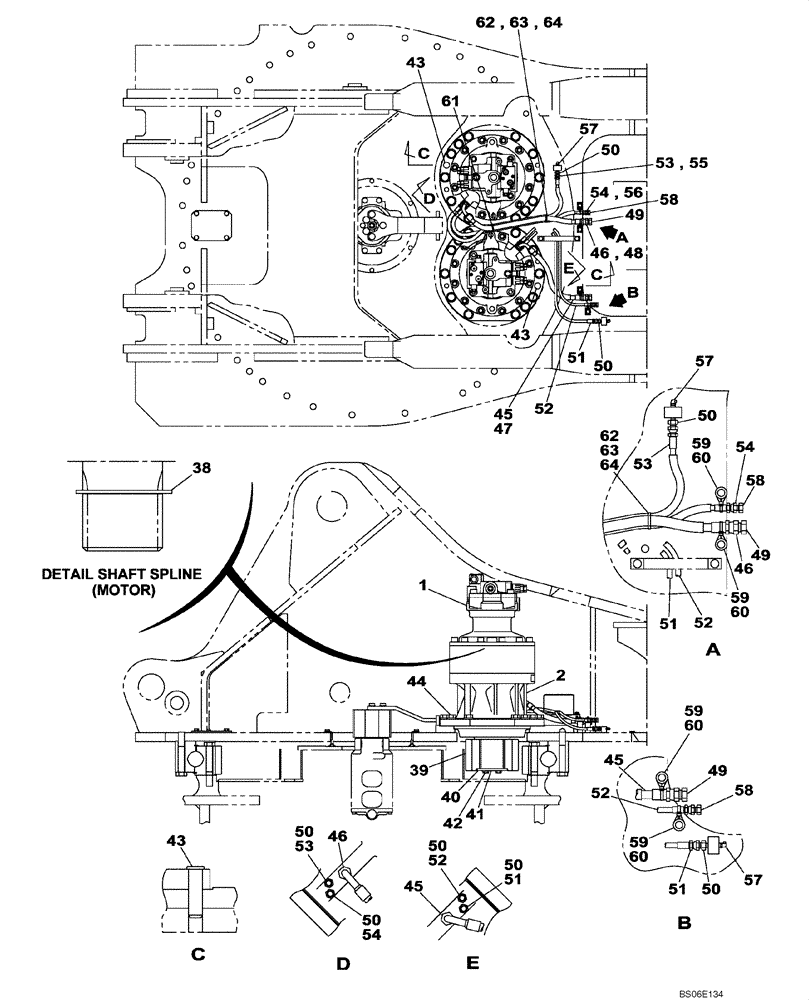

Запчасти Case CX800 (08-220-00[01]) - SWING MOTOR-DRIVE REDUCTION GEAR (08) - HYDRAULICS

1

KUC10010

HYDRAULIC MOTOR

See Figure 08-222-00 01

2шт.

KUC10010R

REMAN-HYD MOTOR

CX800 TIER 3 (3/06-)

2шт.

KUC10010C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

KUC10020

REDUCER

See Figure 08-221-00 01

2шт.

38

800-1145

SNAP RING,M45, Ext

2шт.

39

KUC0013

PINION

2шт.

40

150285A1

PLATE, LOCKING

2шт.

41

167069A1

WASHER

W125

2шт.

42

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

43

150317A1

HEADED PIN,24mm OD x 90mm L

2шт.

44

166477A1

BOLT,Sems, M24 x 90mm

M24 x 90

24шт.

45

KHJ1255

HYDRAULIC HOSE,12.70 mm ID x 500.00 mm

1шт.

46

KWJ10020

HOSE ASSY.,12.70 mm ID x 700.00 mm

1шт.

47

KHR4065

PLASTIC-RUBBER TUBE

350 mm

1шт.

48

KHR4065

PLASTIC-RUBBER TUBE

1шт.

49

KHP0578

PLUG

2шт.

50

KRJ4050

ADAPTER

6шт.

51

167867A1

HYDRAULIC HOSE,6.30 mm ID x 800.00 mm

300 mm

1шт.

52

167862A1

HYDRAULIC HOSE,6.30 mm ID x 750.00 mm

1шт.

53

167317A1

HYDRAULIC HOSE,6.30 mm ID x 900.00 mm

1шт.

54

KHJ1114

HYDRAULIC HOSE,6.35 mm ID x 850.00 mm

1шт.

55

157692A1

PLASTIC-RUBBER TUBE

800 mm

1шт.

56

KBR0621

LOOM

650 mm

1шт.

57

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

2шт.

58

169177A1

PLUG

2шт.

59

KHR2584

CLAMP

4шт.

60

KHJ1215

BOLT,Spcl

M8 x 25

4шт.

61

150071A1

MOUNTING CLIP

380 mm

1шт.

62

150860A1

COLLAR

1шт.

63

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

64

150496A1

MOUNTING CLIP

250 mm

1шт.
