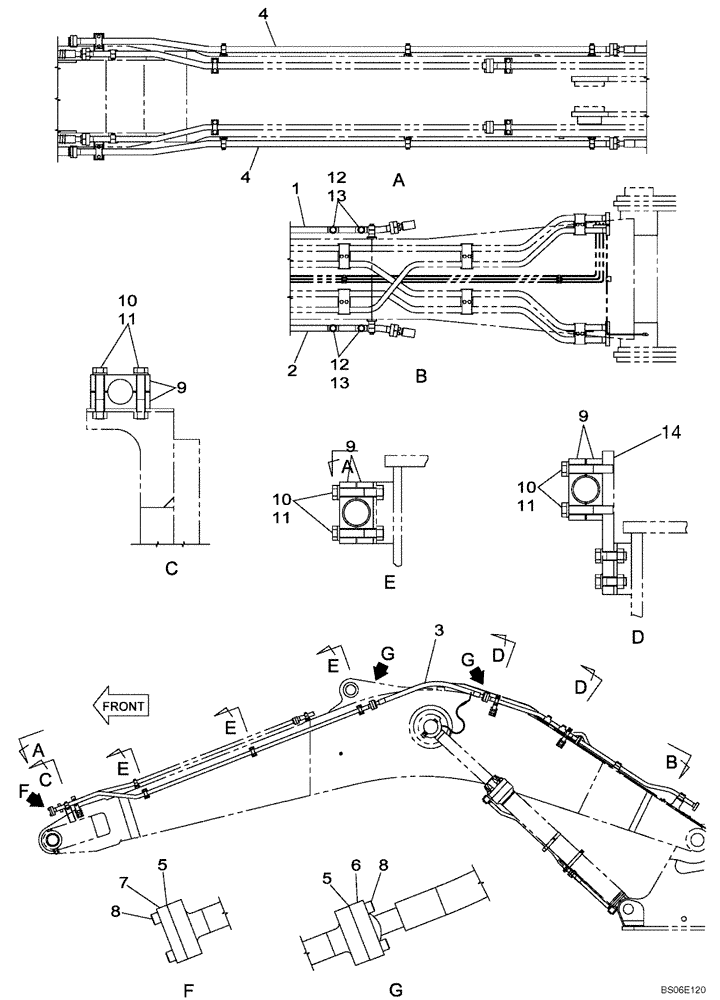

Запчасти Case CX800 (08-047-00[01]) - HYDRAULIC CIRCUIT - PICK HAMMER - BOOM (8.40 M) (08) - HYDRAULICS

1

KUV0217

HYD TUBE,38.6 mm ID x 48.6 mm OD

1шт.

2

KUV0219

HYD TUBE,38.6 mm ID x 48.6 mm OD

1шт.

3

KUV0051

HYDRAULIC HOSE,38.10 mm ID x 1550.00 mm

1шт.

4

KUV0064

HYD TUBE,38.6 mm ID x 48.6 mm OD

1шт.

5

168211A1

O-RING

6шт.

6

KTJ0169

FLANGE

8шт.

7

KUP0008

COUPLING FLANGE

2шт.

8

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

24шт.

9

KUV0055

CLAMP BRACKET

24шт.

10

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

24шт.

11

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

W 16

24шт.

12

162659A1

PLUG

Incl. 13

4шт.

13

154523A1

O-RING

1шт.

14

KUV0070

PLATE

4шт.
