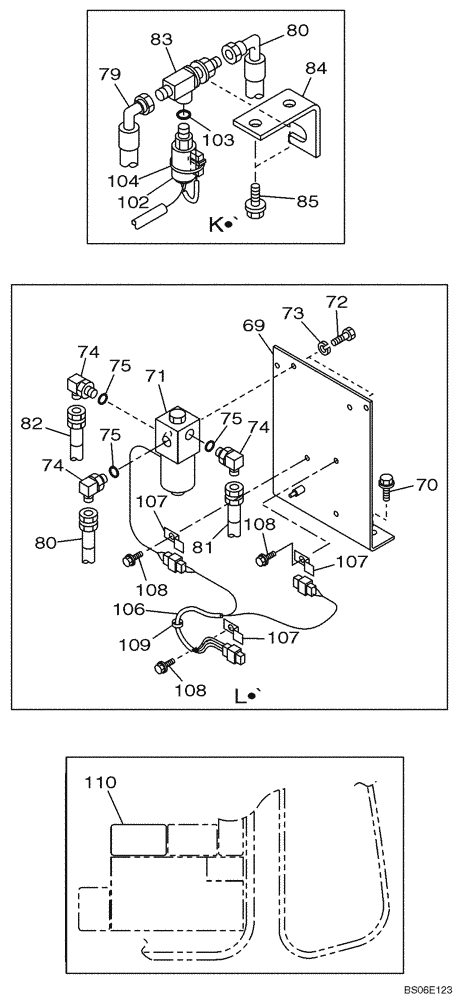

Запчасти Case CX800 (08-043-01[01]) - HYDRAULIC CIRCUIT - SINGLE ACTING CIRCUIT (08) - HYDRAULICS

69

KWJ10630

SUPPORT

1шт.

70

KHN1079

SPECIAL BOLT

2шт.

71

162538A1

VALVE

See Figure 08-252-00 01

1шт.

72

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

2шт.

73

183-106VR

SPRING WASHER

2шт.

74

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 75

3шт.

75

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

79

KHJ14020

HYDRAULIC HOSE

4950 mm

1шт.

80

164374A1

HYDRAULIC HOSE

1шт.

81

153484A1

HOSE ASSY.

1шт.

82

153484A1

HOSE ASSY.

1шт.

83

KHJ11470

ADAPTER

1шт.

84

KHJ2127

BRACKET

1шт.

85

166345A1

BOLT

M8 x 16

2шт.

102

KHR10800

PRESSURE SWITCH

Incl. 103

1шт.

103

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

104

150067A1

MOUNTING CLIP

1шт.

106

KHR3870

WIRE HARNESS

1шт.

107

158962A1

CLIP

3шт.

108

167518A1

BOLT

3шт.

109

KHR2787

CLAMP

1шт.

110

KHP1755

DECAL

1шт.
