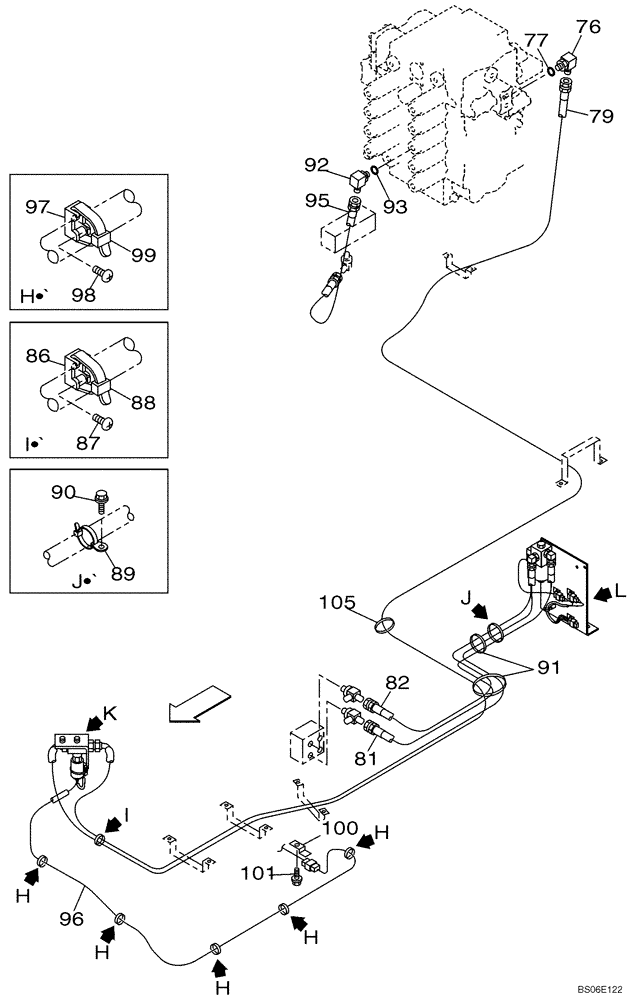

Запчасти Case CX800 (08-043-00[01]) - HYDRAULIC CIRCUIT - SINGLE ACTING CIRCUIT (08) - HYDRAULICS

76

156554A1

ELBOW

Incl. 77

1шт.

77

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

79

KHJ14020

HYDRAULIC HOSE

4950 mm

1шт.

81

153484A1

HOSE ASSY.

1шт.

82

153484A1

HOSE ASSY.

1шт.

86

150860A1

COLLAR

1шт.

87

145N006S008R

SCREW,Pan Hd, M6 x 8mm, Cl 10.9

1шт.

88

150496A1

MOUNTING CLIP

1шт.

89

KHR2584

CLAMP

1шт.

90

KHJ1215

BOLT,Spcl

1шт.

91

150071A1

MOUNTING CLIP

1шт.

92

156554A1

ELBOW

Incl. 93

1шт.

93

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

95

151877A1

HOSE,63.00 mm ID x 1200.00 mm

1шт.

96

KHR3350

HARNESS

1шт.

97

150860A1

COLLAR

5шт.

98

145N006S008R

SCREW,Pan Hd, M6 x 8mm, Cl 10.9

5шт.

99

150496A1

MOUNTING CLIP

5шт.

100

KHR1957

CLIP

1шт.

101

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.

105

150071A1

MOUNTING CLIP

1шт.
