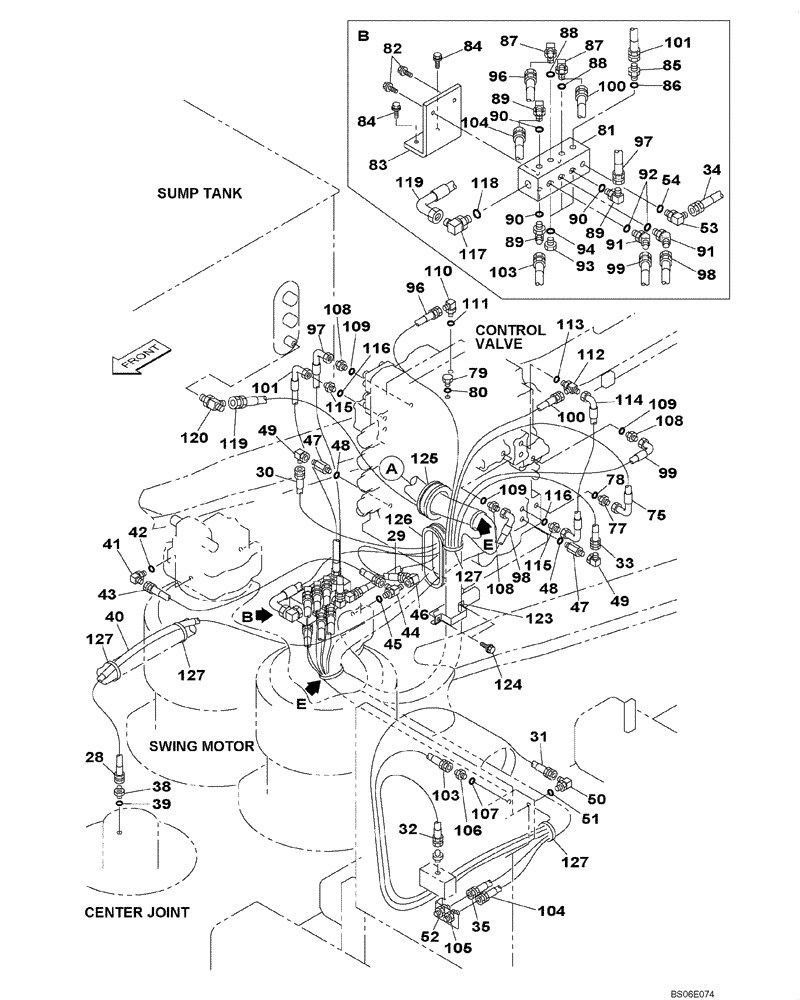

Запчасти Case CX800 (08-035-00[01]) - HYDRAULIC CIRCUIT - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

28

KRJ4750

HOSE,410.00 mm

1шт.

29

KBJ2640

HOSE

3300 mm

1шт.

30

KHJ2344

HOSE

2500 mm

1шт.

31

KHJ1932

HOSE

5400 mm

1шт.

32

KHJ12630

CHAIN (CE)

5500 mm

1шт.

33

KRJ4750

HOSE,410.00 mm

1шт.

34

150387A1

HOSE

2300 mm

1шт.

35

KHJ12640

HYDRAULIC HOSE

4500 mm

1шт.

38

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 38

1шт.

39

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

40

157564A1

FLEXIBLE SHEATH

700 mm

1шт.

41

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 42

1шт.

42

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

43

157854A1

HOSE,4mm ID x 750mm L

750 mm

1шт.

44

159497A1

TEE

Incl. 45

1шт.

45

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

46

163814A1

ELBOW

1шт.

47

162554A1

FITTING

Incl. 48

2шт.

48

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

49

163814A1

ELBOW

2шт.

50

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 51

1шт.

51

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

52

162826A1

ADAPTER

1шт.

53

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 54

1шт.

54

154475A1

O-RING

1шт.

75

KHJ12650

HYDRAULIC HOSE,6.35 mm ID x 4400.00 mm

1шт.

77

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 78

1шт.

78

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

79

159002A1

PLUG

Incl. 80

1шт.

80

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

81

KUJ0321

MANIFOLD VALVE

1шт.

82

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

83

KWV0068

HYD TUBE

1шт.

84

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

85

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 86

1шт.

86

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

87

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 88

2шт.

88

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

89

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 90

3шт.

90

154475A1

O-RING

1шт.

91

157584A1

ELBOW

Incl. 92

2шт.

92

154475A1

O-RING

1шт.

93

159002A1

PLUG

Incl. 94

3шт.

94

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

96

152264A1

HOSE,6.3mm ID x 2200mm L

1шт.

97

KAJ3395

HYDRAULIC HOSE

800 mm

1шт.

98

159228A1

HOSE ASSY.

1шт.

99

KHJ12620

HYDRAULIC HOSE

1800 mm

1шт.

100

KBJ1447

HOSE

1900 mm

1шт.

101

161659A1

HYDRAULIC HOSE

700 mm

1шт.

103

152777A1

HOSE ASSY.

3200 mm

1шт.

104

157967A1

HOSE

2200 mm

1шт.

105

162826A1

ADAPTER

1шт.

106

152747A1

ADAPTER

Incl. 107

1шт.

107

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

108

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 109

3шт.

109

154475A1

O-RING

1шт.

110

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 111

1шт.

111

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

112

159497A1

TEE

Incl. 113

1шт.

113

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

114

KHJ10220

HYDRAULIC HOSE,6.35 mm ID x 250.00 mm

1шт.

115

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 116

2шт.

116

155467A1

PLUG, DRAIN

1шт.

117

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 118

1шт.

118

154487A1

O-RING

1шт.

119

KRJ5257

HYDRAULIC HOSE,12.70 mm ID x 2100.00 mm

1шт.

120

KHJ1529

FITTING

1шт.

123

159025A1

CLAMP

1шт.

124

166350A1

BOLT

M8 x 20

2шт.

125

KHR4332

GROMMET

315 mm

1шт.

126

159398A1

RUBBER BLOCK

1шт.

127

150071A1

MOUNTING CLIP

380 mm

1шт.
