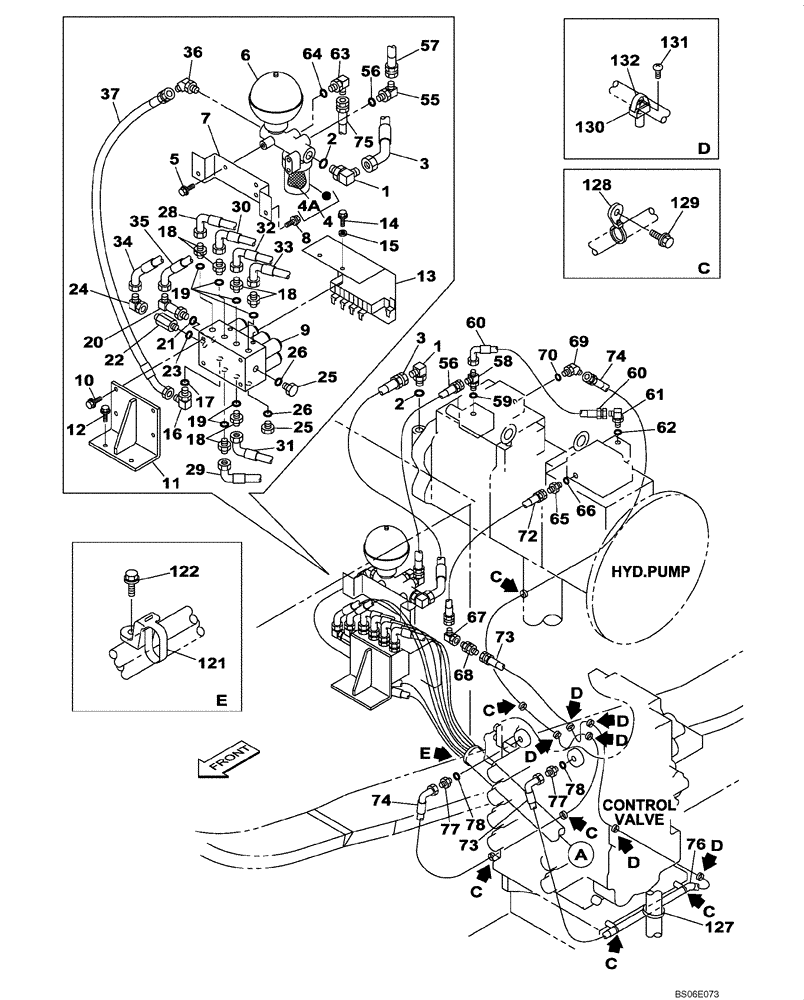

Запчасти Case CX800 (08-034-00[01]) - HYDRAULIC CIRCUIT - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

1

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 2

2шт.

2

154487A1

O-RING

1шт.

3

KHJ12610

HYDRAULIC HOSE,12.70 mm ID x 800.00 mm

1шт.

4

KHJ2562

MANIFOLD

Incl. 4A

1шт.

4a

153233A1

HYDRAULIC OIL FILTER

1шт.

5

166350A1

BOLT

M8 x 20

3шт.

6

KHJ1553

ACCUMULATOR

1шт.

7

KRJ5948

BRACKET

1шт.

8

166351A1

BOLT,Sems, M10 x 20mm

M10 x 20

2шт.

9

KHJ15470

SOLENOID VALVE

See Figure 08-250-00 01

1шт.

10

166351A1

BOLT,Sems, M10 x 20mm

M10 x 20

4шт.

11

KWJ0067

SUPPORT

1шт.

12

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

13

161551A1

COVER

1шт.

14

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

M6 x 12

2шт.

15

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

16

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 53

1шт.

17

154475A1

O-RING

1шт.

18

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 19

6шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

6шт.

20

KHJ1442

ELBOW

Incl. 21

1шт.

21

154475A1

O-RING

1шт.

22

159226A1

ADAPTER

Incl. 23

1шт.

23

154475A1

O-RING

1шт.

24

153526A1

ELBOW

1шт.

25

159002A1

PLUG

G 1/4; Incl. 26

2шт.

26

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

28

KRJ4750

HOSE,410.00 mm

1шт.

29

KBJ2640

HOSE

3300 mm

1шт.

30

KHJ2344

HOSE

2500 mm

1шт.

31

KHJ1932

HOSE

5400 mm

1шт.

32

KHJ12630

CHAIN (CE)

5500 mm

1шт.

33

KRJ4750

HOSE,410.00 mm

1шт.

34

150387A1

HOSE

2300 mm

1шт.

35

KHJ12640

HYDRAULIC HOSE

4500 mm

1шт.

36

KHJ1254

ELBOW

1шт.

37

KHJ1640

HYDRAULIC HOSE

4800 mm

1шт.

55

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 56

1шт.

56

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

57

167866A1

HYDRAULIC HOSE,6.30 mm ID x 700.00 mm

1шт.

58

159497A1

TEE

Incl. 59

1шт.

59

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

60

161483A1

HOSE ASSY.

1шт.

61

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 62

1шт.

62

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

63

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 64

1шт.

64

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

65

167666A1

FITTING

Incl. 66

1шт.

66

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

67

163814A1

ELBOW

1шт.

68

159481A1

ADAPTER

1шт.

69

150933A1

ELBOW

Incl. 70

1шт.

70

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

72

167867A1

HYDRAULIC HOSE,6.30 mm ID x 800.00 mm

1шт.

73

KHJ1799

HYDRAULIC HOSE,6.30 mm ID x 2800.00 mm

1шт.

74

KHJ2837

HYDRAULIC HOSE,6.30 mm ID x 3500.00 mm

1шт.

75

KHJ12650

HYDRAULIC HOSE,6.35 mm ID x 4400.00 mm

1шт.

76

152660A1

PLASTIC-RUBBER TUBE

3000 mm

1шт.

77

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 78

2шт.

78

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

121

KHR2581

CLAMP

380 mm

3шт.

122

KHJ1215

BOLT,Spcl

M8 x 25

3шт.

127

150071A1

MOUNTING CLIP

380 mm

1шт.

128

KHR2584

CLAMP

6шт.

129

KHJ1215

BOLT,Spcl

M8 x 25

6шт.

130

150860A1

COLLAR

6шт.

131

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

132

150071A1

MOUNTING CLIP

380 mm

1шт.
