Запчасти Case CX800 (08-031-02[01]) - HYDRAULIC CIRCUIT - HAND CONTROL PILOT (MODELS WITH CONTROL SELECTOR VALVE) (08) - HYDRAULICS

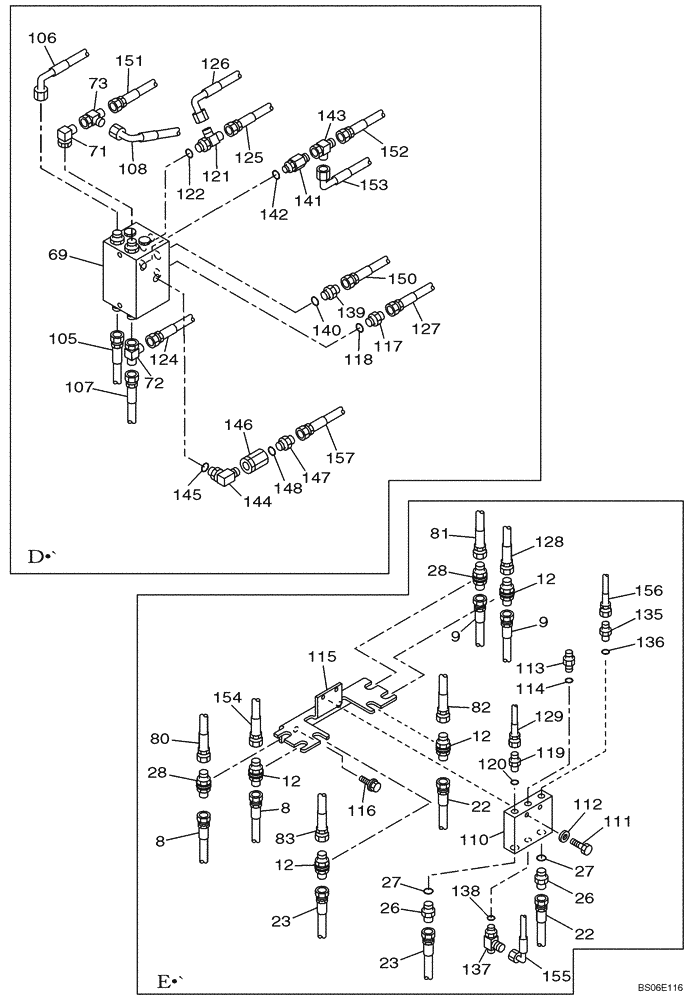

![Схема запчастей Case CX800 - (08-031-02[01]) - HYDRAULIC CIRCUIT - HAND CONTROL PILOT (MODELS WITH CONTROL SELECTOR VALVE) (08) - HYDRAULICS](https://partsell.ru/storage/images/casece/1136233.png)
№
Артикул
Название
Примечание
Количество
8
KRJ4336
HYDRAULIC HOSE,9.50 mm ID x 2200.00 mm
2шт.
9
168025A1
HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm
2шт.
12
162826A1
ADAPTER
G 3/8
4шт.
22
KHJ1345
HYDRAULIC HOSE,9.52 mm ID x 2150.00 mm
2шт.
23
168025A1
HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm
2шт.
26
152747A1
ADAPTER
Incl. 27
2шт.
27
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
28
162826A1
ADAPTER
G 3/8
2шт.
69
KWJ11220
VALVE SECTION
Replaces KUJ10020
1шт.
71
153526A1
ELBOW
1шт.
72
KHJ2234
TEE
1шт.
73
KHJ2234
TEE
1шт.
80
KHJ1165
HYDRAULIC HOSE,9.52 mm ID x 850.00 mm
1шт.
81
166164A1
HYDRAULIC HOSE,9.50 mm ID x 1350.00 mm
1шт.
82
KHJ1234
HYDRAULIC HOSE,19.05 mm ID x 1000.00 mm
1шт.
83
166164A1
HYDRAULIC HOSE,9.50 mm ID x 1350.00 mm
1шт.
105
KHJ1307
HYDRAULIC HOSE,19.05 mm ID x 600.00 mm
1шт.
106
KHJ1740
HYDRAULIC HOSE
1шт.
107
167871A1
HYDRAULIC HOSE,19.00 mm ID x 700.00 mm
1шт.
108
KHJ1063
HYDRAULIC HOSE,9.52 mm ID x 1500.00 mm
1шт.
110
KHJ17120
VALVE SECTION
; Replaces KHJ1973
1шт.
111
827-8045
BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9
2шт.
112
153081A1
WASHER
2шт.
113
KHJ1291
ORIFICE
Incl. 114
1шт.
114
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
115
KHJ1576
BRACKET
1шт.
116
166052A1
BOLT
M10 x 25
2шт.
117
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 118
1шт.
118
154475A1
O-RING
1шт.
119
152747A1
ADAPTER
Incl. 120
1шт.
120
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
121
164107A1
TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT
Incl. 122
1шт.
122
154475A1
O-RING
1шт.
124
159063A1
HOSE
3800 mm
1шт.
125
159062A1
HOSE ASSY.
3700 mm
1шт.
126
KHJ10300
HYDRAULIC HOSE
3900 mm
1шт.
127
159062A1
HOSE ASSY.
3700 mm
1шт.
128
KHJ12540
HYDRAULIC HOSE
3900 mm
1шт.
129
162531A1
HOSE
3600 mm
1шт.
135
152747A1
ADAPTER
Incl. 136
1шт.
136
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
137
KHJ2773
TEE
Incl. 138
1шт.
138
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
139
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 140
1шт.
140
154475A1
O-RING
1шт.
141
KHJ2847
ADAPTER
Incl. 142
1шт.
142
154475A1
O-RING
1шт.
143
KHJ2234
TEE
1шт.
144
KHJ0719
ELBOW
Incl. 145
1шт.
145
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
146
KHJ10790
FILTER SCREEN
1шт.
147
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 148
1шт.
148
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
150
MPJ5480
HOSE
4200 mm
1шт.
151
159068A1
HOSE
4300 mm
1шт.
152
KHJ12540
HYDRAULIC HOSE
3900 mm
1шт.
153
KHJ12390
HYDRAULIC HOSE
4000 mm
1шт.
154
KRJ4764
HOSE
1шт.
155
KHJ12550
HYDRAULIC HOSE
3700 mm.
1шт.
156
KRJ4970
HOSE
3800 mm
1шт.
157
KHJ12560
HYDRAULIC HOSE
3900 mm
1шт.
Выбрано товаров: 61
