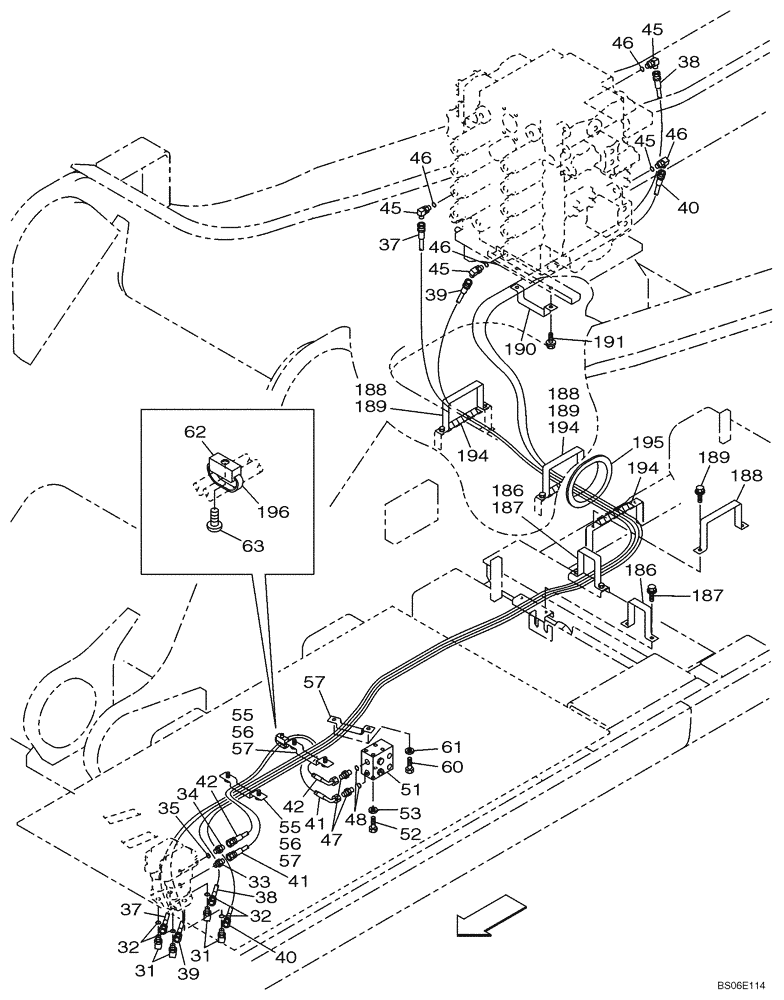

Запчасти Case CX800 (08-027-02[01]) - HYDRAULIC CIRCUIT - TRAVEL PILOT (MODELS WITH CONTROL SELECTOR VALVE) (08) - HYDRAULICS

31

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 32

4шт.

32

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

33

161841A1

HYD CONNECTOR

1шт.

34

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 35

1шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

37

157840A1

HOSE ASSY.

4250 mm

1шт.

38

164941A1

HYDRAULIC HOSE,6.40 mm ID x 4500.00 mm

1шт.

39

157840A1

HOSE ASSY.

4250 mm

1шт.

40

164941A1

HYDRAULIC HOSE,6.40 mm ID x 4500.00 mm

1шт.

41

KAJ3524

HYDRAULIC HOSE

900 mm

1шт.

42

159019A1

HOSE ASSY.

900 mm

1шт.

45

156554A1

ELBOW

Incl. 46

4шт.

46

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

47

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 48

2шт.

48

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

51

KRJ5903

MANIFOLD

1шт.

52

828-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

4шт.

53

153081A1

WASHER

W M8

4шт.

55

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

4шт.

56

153081A1

WASHER

W M8

4шт.

57

KHJ1394

CLAMP

3шт.

60

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

2шт.

61

153081A1

WASHER

W M8

2шт.

62

150860A1

COLLAR

1шт.

63

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

186

KHJ10250

CLAMP

2шт.

187

166350A1

BOLT

M8 x 20

4шт.

188

KHJ1249

CLAMP

3шт.

189

166350A1

BOLT

M8 x 20

6шт.

190

159039A1

CLAMP

1шт.

191

166350A1

BOLT

M8 x 20

2шт.

194

KHJ1250

SEAL, RUBBER

RUBBER SEAL

3шт.

195

KTA1036

SEAL, RUBBER

RUBBER SEAL

1шт.
