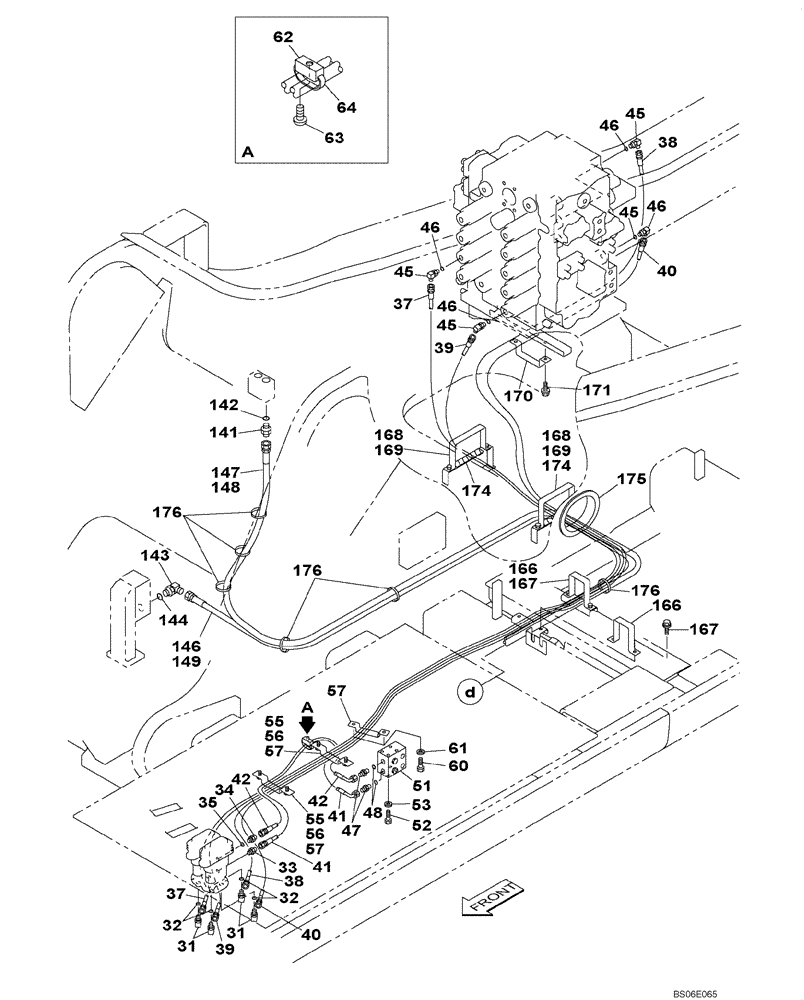

Запчасти Case CX800 (08-027-01[01]) - HYDRAULIC CIRCUIT - TRAVEL PILOT (WITH VALVE, PRESSURE RELIEF) (08) - HYDRAULICS
![Схема запчастей Case CX800 - (08-027-01[01]) - HYDRAULIC CIRCUIT - TRAVEL PILOT (WITH VALVE, PRESSURE RELIEF) (08) - HYDRAULICS](https://partsell.ru/storage/images/casece/600324.png)
№
Артикул
Название
Примечание
Количество
31
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 32
4шт.
32
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
33
161841A1
HYD CONNECTOR
1шт.
34
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 35
1шт.
35
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
37
157840A1
HOSE ASSY.
4250 mm
1шт.
38
164941A1
HYDRAULIC HOSE,6.40 mm ID x 4500.00 mm
1шт.
39
157840A1
HOSE ASSY.
4250 mm
1шт.
40
164941A1
HYDRAULIC HOSE,6.40 mm ID x 4500.00 mm
1шт.
41
KAJ3524
HYDRAULIC HOSE
900 mm
1шт.
42
159019A1
HOSE ASSY.
900 mm
1шт.
45
156554A1
ELBOW
Incl. 46
4шт.
46
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
47
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 48
2шт.
48
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
51
KRJ5903
MANIFOLD
1шт.
52
828-8100
BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9
4шт.
53
153081A1
WASHER
W M8
4шт.
55
627-8012
BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd
4шт.
56
153081A1
WASHER
W M8
4шт.
57
KHJ1394
CLAMP
3шт.
60
627-8012
BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd
2шт.
61
153081A1
WASHER
W M8
2шт.
62
150860A1
COLLAR
1шт.
63
840-168
SCREW,Pan, M6 x 1 x 8mm, Cl 4.8
1шт.
64
150071A1
MOUNTING CLIP
380 mm
1шт.
141
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 142
1шт.
142
154475A1
O-RING
1шт.
143
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
Incl. 144
1шт.
144
154475A1
O-RING
1шт.
146
KHJ13200
HYDRAULIC HOSE
4100 mm
1шт.
147
KHJ13970
HYDRAULIC HOSE
1шт.
148
KRH1445
PLASTIC-RUBBER TUBE
3600 mm
1шт.
149
KRH1434
PLASTIC-RUBBER TUBE
2600 mm
1шт.
166
KHJ10250
CLAMP
2шт.
167
166350A1
BOLT
M8 x 20
4шт.
168
KHJ1249
CLAMP
2шт.
169
166350A1
BOLT
M8 x 20
4шт.
170
159039A1
CLAMP
1шт.
171
166350A1
BOLT
M8 x 20
2шт.
174
KHJ1250
SEAL, RUBBER
RUBBER SEAL
2шт.
175
KTA1036
SEAL, RUBBER
RUBBER SEAL
1шт.
176
150071A1
MOUNTING CLIP
380 mm
6шт.
Выбрано товаров: 43
