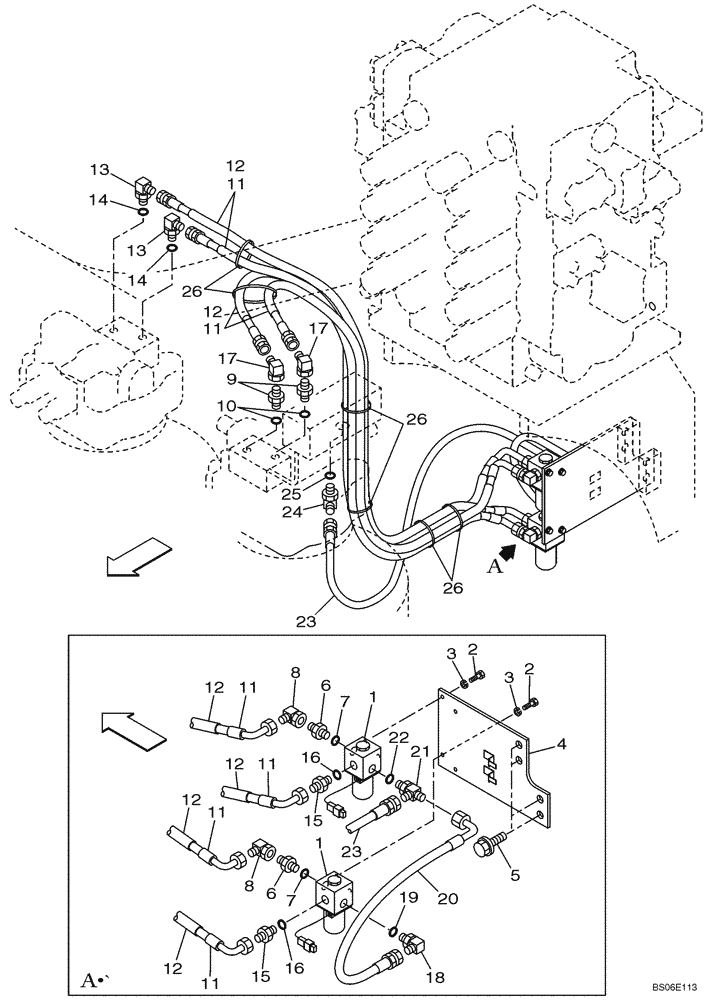

Запчасти Case CX800 (08-024-00[01]) - HYDRAULICS - FREE SWING (08) - HYDRAULICS

1

159205A1

VALVE

Free Swing; See Figure 08-249-00 01

2шт.

2

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

4шт.

3

183-103VR

LOCK WASHER

4шт.

4

KUJ10230

SUPPORT

Bracket

1шт.

5

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

6

162366A1

ADAPTER

Incl. 7

2шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

163814A1

ELBOW

2шт.

9

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 10

2шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

11

KUJ10260

HYDRAULIC HOSE,6.30 mm ID x 1330.00 mm

4шт.

12

150774A1

PLASTIC-RUBBER TUBE

4шт.

13

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 14

2шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

15

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 16

2шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

17

163814A1

ELBOW

2шт.

18

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 19

1шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

20

168728A1

HYDRAULIC HOSE,6.30 mm ID x 400.00 mm

1шт.

21

159497A1

TEE

Incl. 22

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

23

152514A1

HOSE,63mm ID x 1000mm L

1шт.

24

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 25

1шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

26

150071A1

MOUNTING CLIP

6шт.
