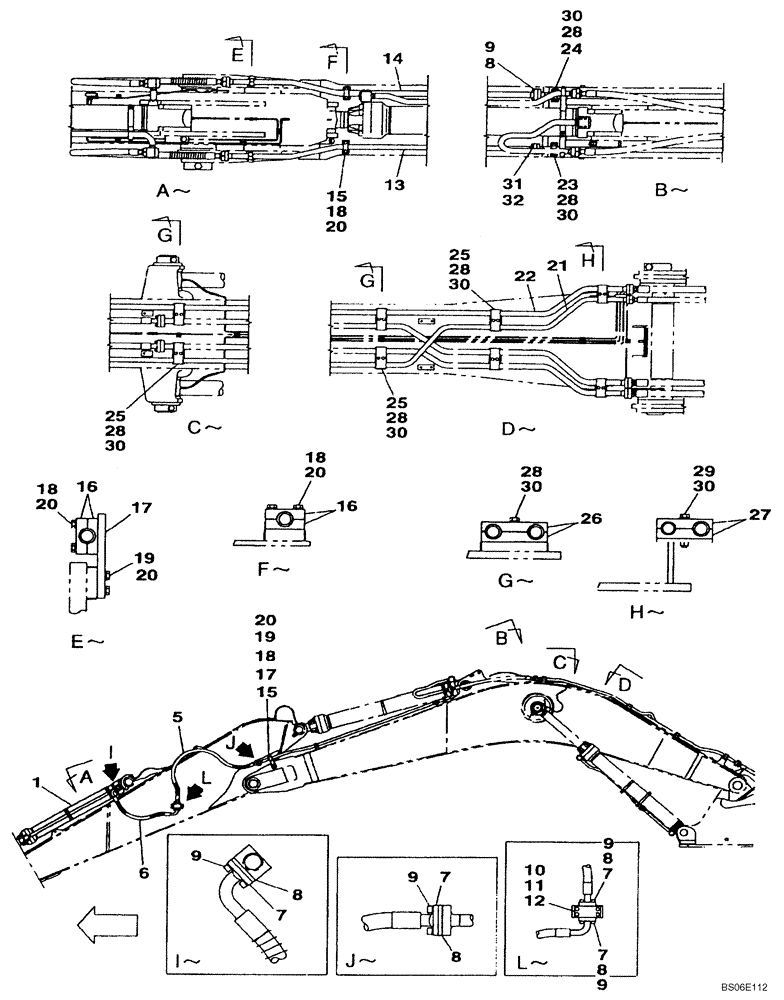

Запчасти Case CX800 (08-21A) - HYDRAULICS - BUCKET, 5,62 METER (18 FT 5 IN) ARM (08) - HYDRAULICS

Arm 3,66 m (12 Ft)

1шт.

1

KUV0007

BUCKET CYLINDER

Bucket, See Figure 08-82, For Mounting, See Figure 09-55

1шт.

5

KUV0107

HYDRAULIC HOSE,38.10 mm ID x 2600.00 mm

2шт.

6

KUV0234

HYDRAULIC HOSE,38.10 mm ID x 1400.00 mm

2шт.

7

KTJ0169

FLANGE

Split

16шт.

8

168211A1

O-RING

9шт.

9

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

36шт.

10

KUV0235

MANIFOLD

2шт.

11

827-16140

BOLT,Hex, M16 x 2 x 140mm, Cl 10.9

8шт.

12

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

8шт.

13

KUV10490

HYD TUBE,34.7 mm ID x 42.7 mm OD

Replaces KUV0045

1шт.

14

KUV10500

HYD TUBE,38.6 mm ID x 48.6 mm OD

Replaces KUV0046

1шт.

15

KUV0054

CLAMP BRACKET

4шт.

16

KUV0055

CLAMP BRACKET

4шт.

17

KUV0070

PLATE

2шт.

18

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

8шт.

19

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

20

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

12шт.

21

KUV0177

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

22

KUV0178

HYD TUBE,38.6 mm ID x 48.6 mm OD

1шт.

23

KUV0054

CLAMP BRACKET

2шт.

24

KUV0055

CLAMP BRACKET

2шт.

25

KUV0057

CLAMP BRACKET

6шт.

26

KUV0058

CLAMP BRACKET

4шт.

27

KUV0176

CLAMP BRACKET

2шт.

28

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

14шт.

29

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

2шт.

30

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

16шт.

31

164450A1

O-RING

1шт.

32

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

4шт.
