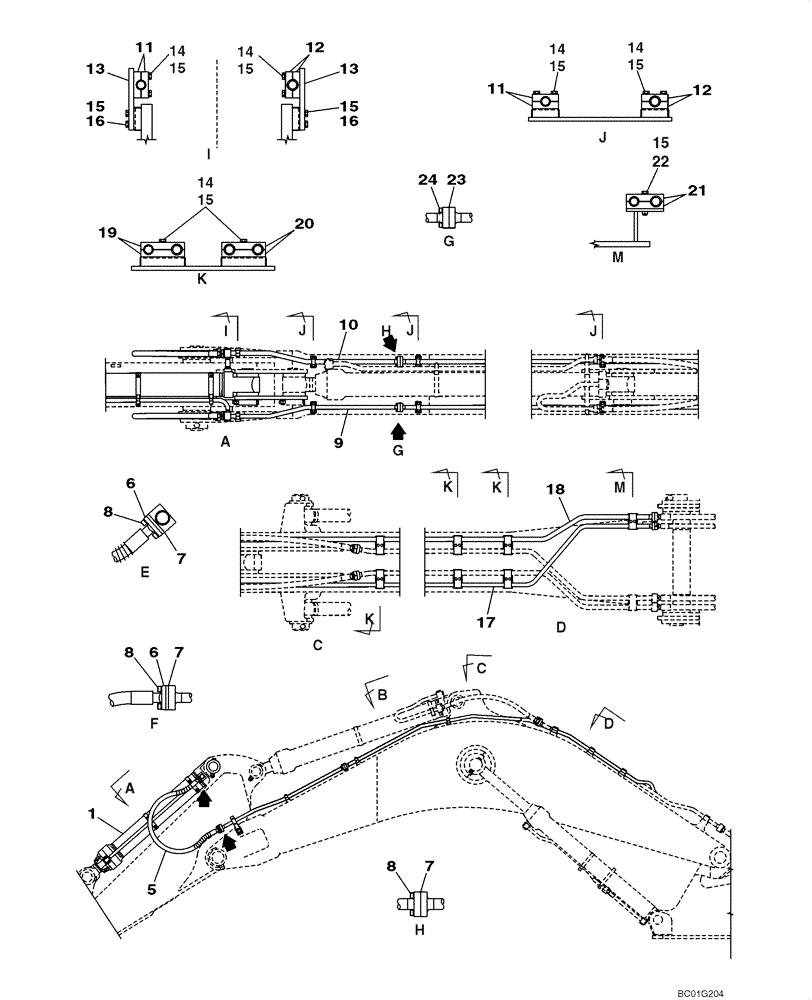

Запчасти Case CX800 (08-21) - HYDRAULICS - BUCKET, 2,98 METER (9 FT 9 IN) ARM (08) - HYDRAULICS

Boom 7,25 m (23 Ft 9 In)

1шт.

Arm 2,98 m (9 Ft 9 In)

1шт.

1

KUV0114

BUCKET CYLINDER

Bucket, See Figure 08-82A, For Mounting, See Figure 9-55

1шт.

5

KUV0044

HYDRAULIC HOSE,38.10 mm ID x 2400.00 mm

2шт.

6

KTJ0169

FLANGE

8шт.

7

168211A1

O-RING

5шт.

8

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

20шт.

9

KUV10510

HYD TUBE,34.7 mm ID x 42.7 mm OD

Replaces KUV0117

1шт.

10

KUV10520

HYD TUBE,38.6 mm ID x 48.6 mm OD

Replaces KUV0118

1шт.

11

KUV0054

CLAMP BRACKET

8шт.

12

KUV0055

CLAMP BRACKET

8шт.

13

KUV0070

PLATE

2шт.

14

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

28шт.

15

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

34шт.

16

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

4шт.

17

KUV0173

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

18

KUV0174

HYD TUBE,38.6 mm ID x 48.6 mm OD

1шт.

19

KUV0057

CLAMP BRACKET

6шт.

20

KUV0058

CLAMP BRACKET

4шт.

21

KUV0176

CLAMP BRACKET

2шт.

22

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

2шт.

23

164450A1

O-RING

1шт.

24

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

4шт.
