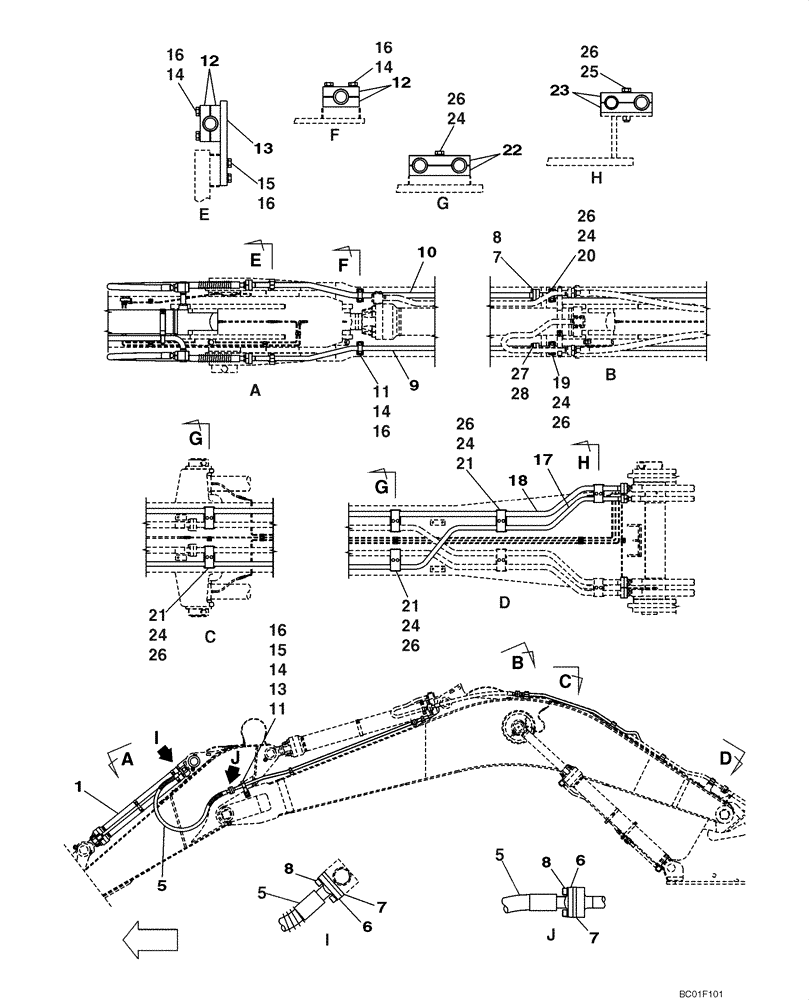

Запчасти Case CX800 (08-20A) - HYDRAULICS - BUCKET, 4,44 METER (14 FT 7 IN) ARM (08) - HYDRAULICS

Arm 4,44 Meter (14 Ft 7 In)

1шт.

1

KUV0007

BUCKET CYLINDER

Bucket, See Figure 08-82, For Mounting, See Figure 09-55

1шт.

5

KUV0063

HYDRAULIC HOSE,38.1mm ID x 2650mm L

2шт.

6

KTJ0169

FLANGE

Split

8шт.

7

168211A1

O-RING

5шт.

8

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

20шт.

9

KUV10490

HYD TUBE,34.7 mm ID x 42.7 mm OD

Replaces KUV0045

1шт.

10

KUV10500

HYD TUBE,38.6 mm ID x 48.6 mm OD

Replaces KUV0046

1шт.

11

KUV0054

CLAMP BRACKET

4шт.

12

KUV0055

CLAMP BRACKET

4шт.

13

KUV0070

PLATE

2шт.

14

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

8шт.

15

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

16

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

12шт.

17

KUV0177

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

18

KUV0178

HYD TUBE,38.6 mm ID x 48.6 mm OD

1шт.

19

KUV0054

CLAMP BRACKET

2шт.

20

KUV0055

CLAMP BRACKET

2шт.

21

KUV0057

CLAMP BRACKET

6шт.

22

KUV0058

CLAMP BRACKET

4шт.

23

KUV0176

CLAMP BRACKET

2шт.

24

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

14шт.

25

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

2шт.

26

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

16шт.

27

164450A1

O-RING

1шт.
