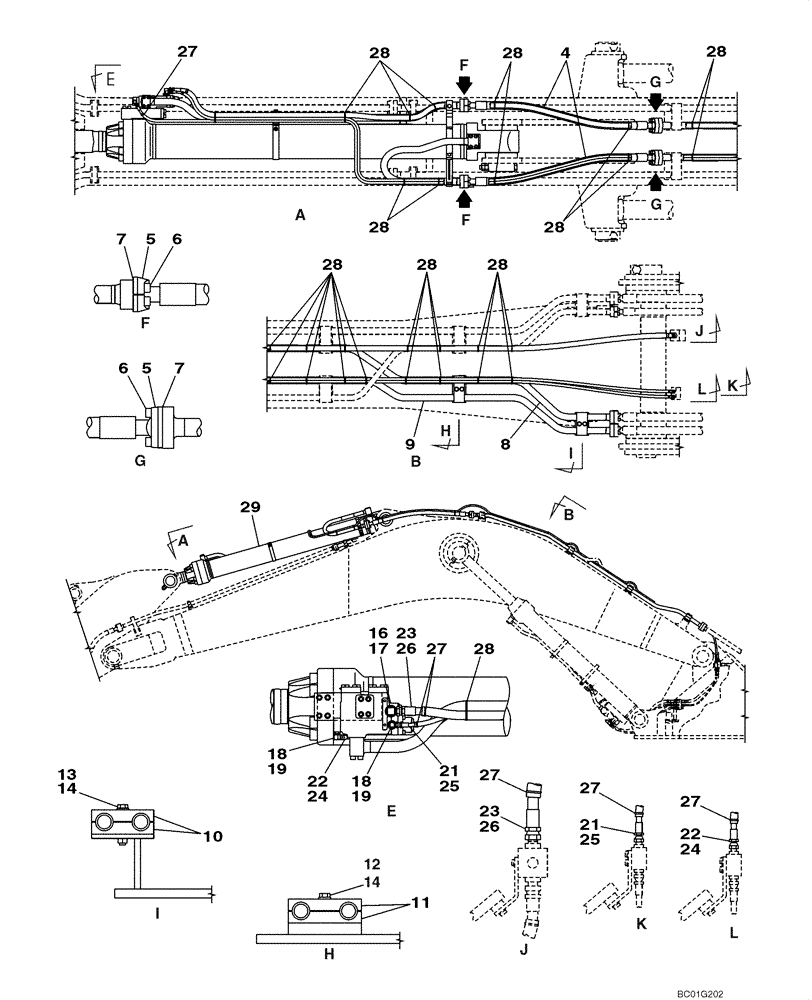

Запчасти Case CX800 (08-18) - HYDRAULICS - ARM CYLINDER, MODELS WITH LOAD HOLD (08) - HYDRAULICS

Models With Load Hold

1шт.

4

KUV0051

HYDRAULIC HOSE,38.10 mm ID x 1550.00 mm

2шт.

5

KTJ0169

FLANGE

8шт.

6

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

16шт.

7

168211A1

O-RING

4шт.

8

KUV0246

HYD TUBE,38.6 mm ID x 48.6 mm OD

1шт.

9

KUV0245

HYD TUBE,38.6 mm ID x 48.6 mm OD

1шт.

10

KUV0175

CLAMP BRACKET

2шт.

11

KUV0058

CLAMP BRACKET

2шт.

12

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

2шт.

13

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

2шт.

14

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

4шт.

16

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 17

1шт.

17

154503A1

O-RING

1шт.

18

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 19

2шт.

19

154475A1

O-RING

1шт.

21

KHJ2361

HOSE

1шт.

22

KHJ2360

HOSE

1шт.

23

KUV0284

HYDRAULIC HOSE,19.00 mm ID x 8200.00 mm

1шт.

24

KRH1505

PLASTIC-RUBBER TUBE

1шт.

25

KRH1506

PLASTIC-RUBBER TUBE

1шт.

26

KMR0890

PLASTIC-RUBBER TUBE

1шт.

27

150067A1

MOUNTING CLIP

150 mm (6 in)

6шт.

28

150071A1

MOUNTING CLIP

25шт.

29

KUV0270

HYDRAULIC CYLINDER

Arm; See Figure 08-81

1шт.
