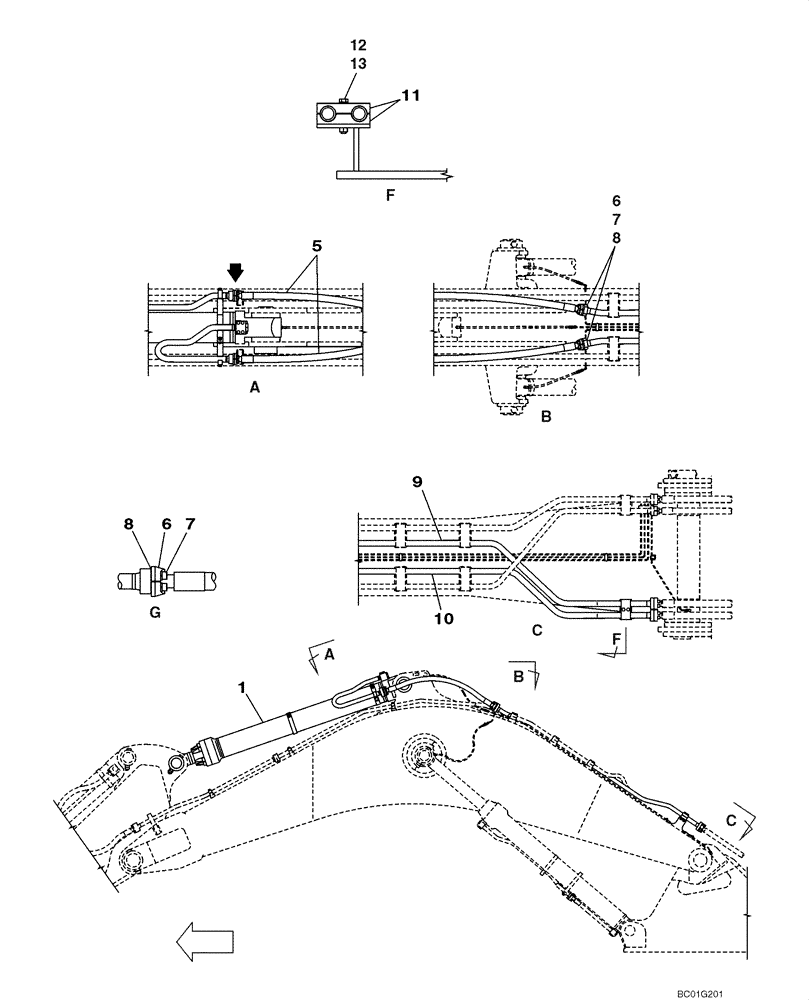

Запчасти Case CX800 (08-17) - HYDRAULICS - ARM CYLINDER, MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

Arm 2,98 m (9 Ft 9 In)

1шт.

Models Without Load Hold

1шт.

1

KUV0006

HYDRAULIC CYLINDER

Arm, See Figure 08-80A

1шт.

5

KUV0051

HYDRAULIC HOSE,38.10 mm ID x 1550.00 mm

2шт.

6

KTJ0169

FLANGE

Split

8шт.

7

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

16шт.

8

168211A1

O-RING

4шт.

9

KUV0171

HYD TUBE,38.6 mm ID x 48.6 mm OD

1шт.

10

KUV0172

HYD TUBE,38.6 mm ID x 48.6 mm OD

1шт.

11

KUV0175

CLAMP BRACKET

2шт.

12

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

2шт.

13

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

2шт.
