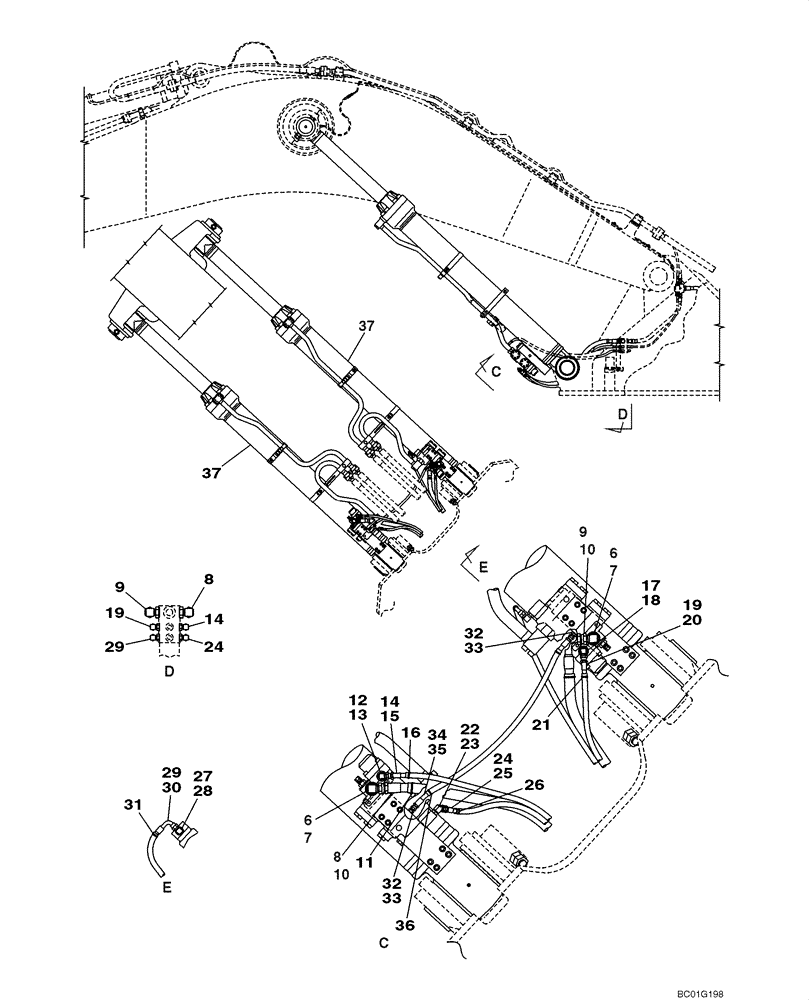

Запчасти Case CX800 (08-12) - HYDRAULICS - BOOM CYLINDER, MODELS WITH LOAD HOLD (08) - HYDRAULICS

Models With Load Hold

1шт.

6

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 7

2шт.

7

154503A1

O-RING

1шт.

8

KUV0330

HYDRAULIC HOSE,19.00 mm ID x 1400.00 mm

1шт.

9

KUV0269

HYDRAULIC HOSE,19.00 mm ID x 1200.00 mm

1шт.

10

KHV0462

PLASTIC-RUBBER TUBE

2шт.

11

150067A1

MOUNTING CLIP

150 mm (6 in)

4шт.

12

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 13

1шт.

13

154475A1

O-RING

1шт.

14

152760A1

HOSE

1шт.

15

150774A1

PLASTIC-RUBBER TUBE

1шт.

16

150067A1

MOUNTING CLIP

150 mm (6 in)

2шт.

17

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 18

1шт.

18

154475A1

O-RING

1шт.

19

152757A1

HOSE ASSY.

1шт.

20

150774A1

PLASTIC-RUBBER TUBE

1шт.

21

150067A1

MOUNTING CLIP

150 mm (6 in)

2шт.

22

157584A1

ELBOW

Incl. 23

1шт.

23

154475A1

O-RING

1шт.

24

152753A1

HOSE,95.00 mm ID x 1100.00 mm

1шт.

25

150774A1

PLASTIC-RUBBER TUBE

1шт.

26

150067A1

MOUNTING CLIP

150 mm (6 in)

1шт.

27

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 28

1шт.

28

154475A1

O-RING

1шт.

29

KHJ1607

HYDRAULIC HOSE

1шт.

30

150774A1

PLASTIC-RUBBER TUBE

1шт.

31

150067A1

MOUNTING CLIP

150 mm (6 in)

2шт.

32

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 33

2шт.

33

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

34

157846A1

HOSE ASSY.,6.30 mm ID x 650.00 mm

1шт.

35

157767A1

PLASTIC-RUBBER TUBE

1шт.

36

150067A1

MOUNTING CLIP

150 mm (6 in)

2шт.

37

KUV0186

HYDRAULIC CYLINDER

See Figure 08-79

2шт.
