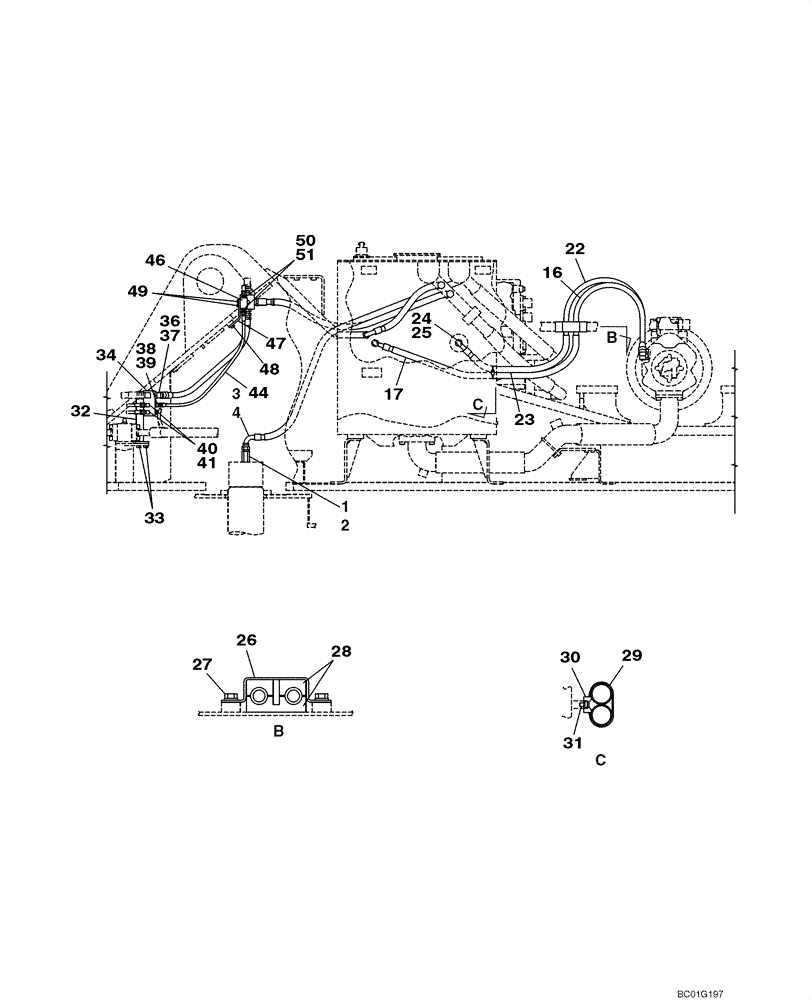

Запчасти Case CX800 (08-09) - HYDRAULICS - DRAIN LINE, MODELS WITH LOAD HOLD (08) - HYDRAULICS

Models With Load Hold

1шт.

1

156664A1

STUD

Incl. 2

1шт.

2

154503A1

O-RING

1шт.

3

KUJ0241

HYDRAULIC HOSE,19.00 mm ID x 2000.00 mm

1шт.

4

157867A1

PLASTIC-RUBBER TUBE

1шт.

16

KUJ0110

HYDRAULIC HOSE,19.00 mm ID x 2350.00 mm

1шт.

17

151012A1

PLASTIC-RUBBER TUBE

1шт.

22

KRJ4590

HYDRAULIC HOSE,19.00 mm ID x 1650.00 mm

1шт.

23

157865A1

TUBE,28 mm ID, 34 mm OD, 800 mm Length

1шт.

24

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 25

1шт.

25

154503A1

O-RING

1шт.

26

KTJ2096

BRACKET

1шт.

27

166351A1

BOLT,Sems, M10 x 20mm

With Attached Washer

2шт.

28

161153A1

U-BOLT,M10 x 90mm W x 110mm L

BOLT "U"

2шт.

29

150071A1

MOUNTING CLIP

1шт.

30

150860A1

COLLAR

1шт.

31

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

32

KUJ0378

BRACKET

1шт.

33

166352A1

BOLT

With Attached Washer

3шт.

34

KUJ0371

MANIFOLD VALVE

1шт.

36

157586A1

ELBOW

Incl. 37

1шт.

37

154503A1

O-RING

1шт.

38

157584A1

ELBOW

Incl. 39

1шт.

39

154475A1

O-RING

1шт.

40

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 41

4шт.

41

154475A1

O-RING

1шт.

44

KNJ2060

HOSE

1шт.

46

KUJ0372

MANIFOLD VALVE

1шт.

47

162012A1

BRACKET

1шт.

48

166052A1

BOLT

With Attached Washer

2шт.

49

166350A1

BOLT

With Attached Washer

2шт.

50

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 51

2шт.

51

154475A1

O-RING

1шт.
